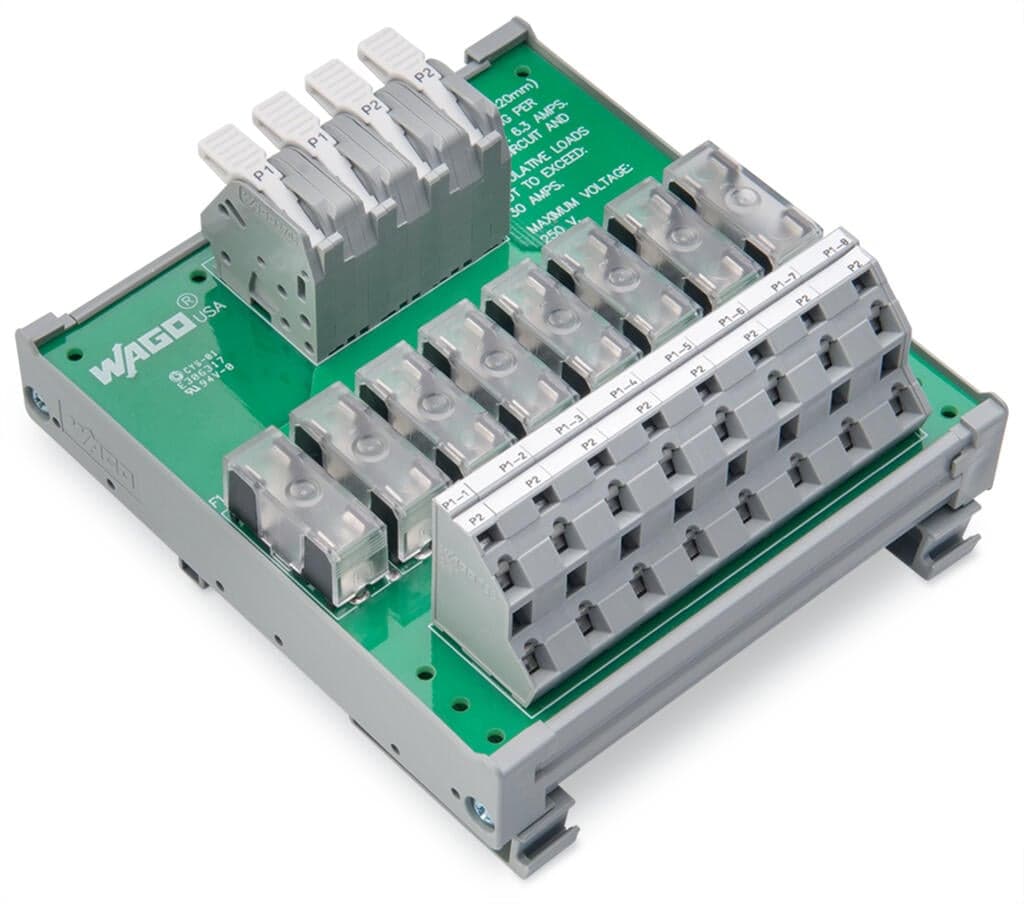

WAGO 830-800/000-319 Potential Distribution Module

Selling Points

1Distributes power efficiently with two potentials and eight output clamping points each.
2Supports conductors up to 6 mm² and 2.5 mm² for various applications.
3Designed for easy mounting on DIN-35 rail systems.
4Compatible with operating voltages of ≤ AC/DC 250 V.
5Utilizes CAGE CLAMP spring connections for secure and reliable connections.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Operating voltage	≤?AC/DC?250?V	Total current per potential (max.)	30A
Fuse capacity (max.)	6.3A	Specialty functions	with 2 input clamping points each; with 8 output clamping points each
Total number of potentials	2	Connection type 1	Input
Mating direction	30°	Connection technology	CAGE CLAMP?
WAGO connector	WAGO 2706 Series	Solid conductor	0.5 … 6?mm2?/ 20 … 10?AWG
Fine-stranded conductor	0.5 … 6?mm2?/ 20 … 10?AWG	Strip length	11 … 12?mm?/ 0.43 … 0.47?inches
Connection type 2	Output	Mating direction 2	vertical
Connection technology 2	CAGE CLAMP?	WAGO connector 2	WAGO 736 Series
Solid conductor 2	0.08 … 2.5?mm2?/ 28 … 12?AWG	Fine-stranded conductor 2	0.08 … 2.5?mm2?/ 28 … 12?AWG
Strip length 2	5 … 6?mm?/ 0.2 … 0.24?inches	Note (conductor cross-section)	12 AWG: THHN, THWN
Width	98?mm?/ 3.85?inches	Height	106 mm / 4.18 inches
Depth from upper-edge of DIN-rail	48 mm / 1.89 inches	Mounting type	DIN-35 rail
Housing design	Mounting carrier	Color	gray
Fire load	1.688MJ	Weight	181.5g
Ambient temperature (operation)	-20 … +50 °C	Relative humidity	95% (without condensation)
Standards/specifications	cULus 61010-2-201	eCl@ss 10.0	27-14-11-52
eCl@ss 9.0	27-14-11-52	ETIM 9.0	EC002780
ETIM 8.0	EC002780	ECCN	EAR99
PU (SPU)	3?(1)?pcs	Packaging type	box
Country of origin	US	GTIN	4055143377393
Customs tariff number	8537109150	RoHS Compliance Status	Compliant,No Exemption

Specifications may be subject to change without notice
