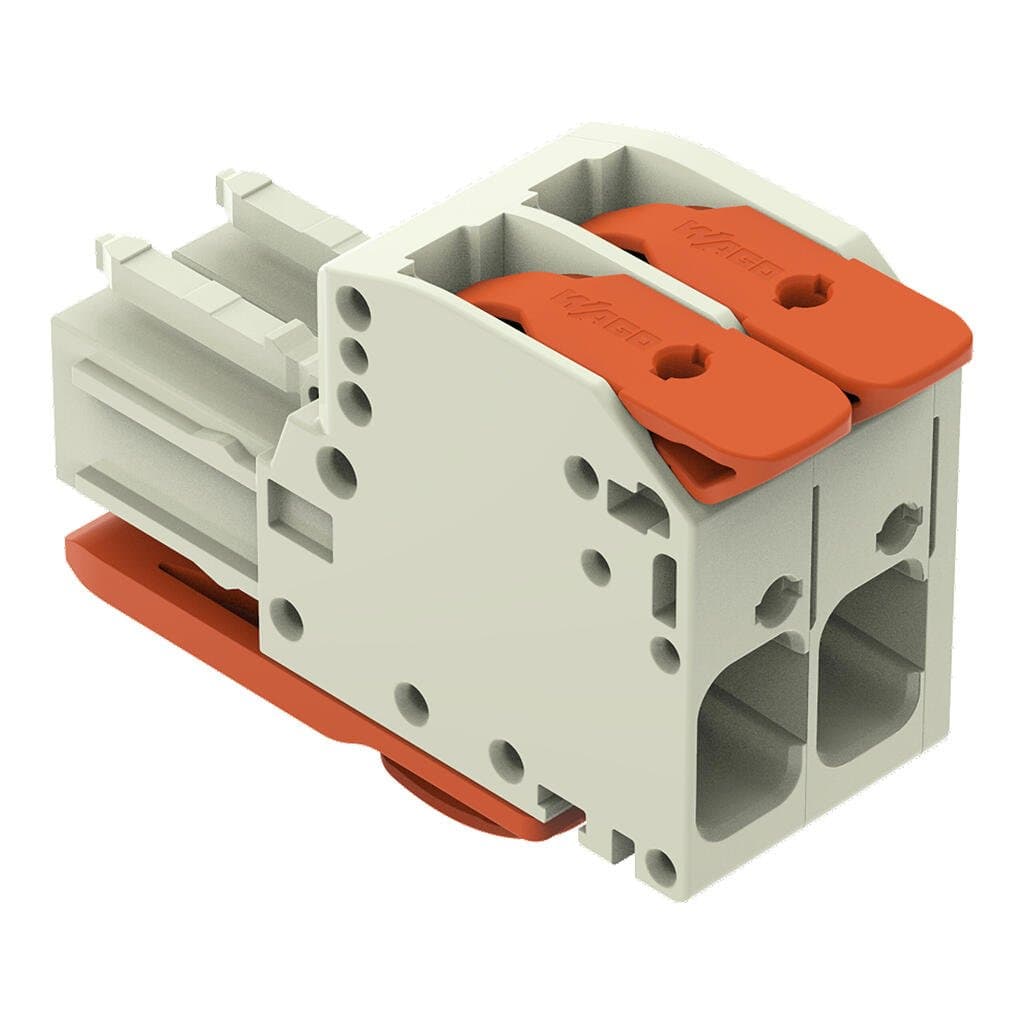

Product Model
831-1102/322-004
Selling Points
- 1Ensures secure and reliable connections.
- 2Easy and efficient connection method.
- 3Supports a wide range of applications.
- 4Suitable for various electrical and automation needs.
- 5Easy identification in complex systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other colors |
Clamping units | 2 | Total number of potentials | 2 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 7.62 mm / 0.3 inches | Width | 17.1 mm / 0.675 inches |
Height | 31.4 mm / 1.236 inches | Depth | 45.7 mm / 1.799 inches |
Variable coding | Yes | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for conductor |
Mismating protection | Yes | Locking of plug-in connection | Center locking lever |
Note (material data) | Information on material specifications can be found here | Color | black |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.336MJ | Actuator color | orange |
Weight | 15.4g | Limit temperature range | -60 … +105 °C |
Processing temperature | -35 … +60 °C | ECCN | NO US CLASSIFICATION |
PU (SPU) | 24 pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4066966553734 |
Customs tariff number | 85366990990 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated voltage (III/2) | 1000V |
Rated surge voltage (III/2) | 8kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 8kV | Rated current | 41A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 37A |
Rated voltage UL (Use Group D) | 600V | Rated current UL (Use Group D) | 5A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 35A |
Rated voltage CSA (Use Group D) | 600V | Rated current CSA (Use Group D) | 5A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Lever |
Solid conductor | 0.5 … 10 mm2 / 20 … 8 AWG | Fine-stranded conductor | 0.5 … 10 mm2 / 20 … 8 AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 6 mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.5 … 6 mm2 |
Strip length | 11 … 13 mm / 0.43 … 0.51 inches | Number of poles | 2 |
Conductor entry direction to mating direction | 0° |
Specifications may be subject to change without notice
