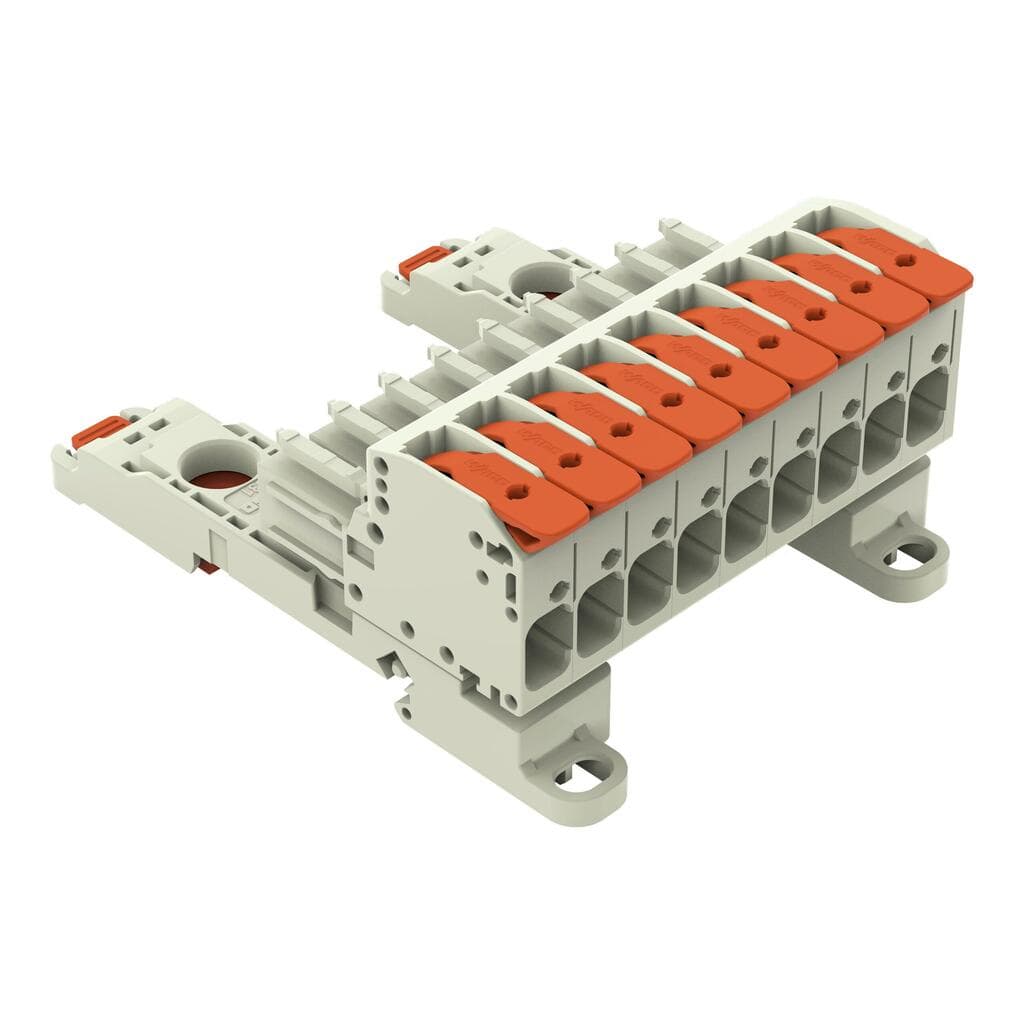

Product Model
831-1109/306-000
Selling Points
- 1100% protected against mismating for secure connections.
- 2Designed for DIN-35 rail and panel mounting.
- 3Light gray color with a durable polyamide insulation.
- 4Rated for 800V and 8kV surge voltage.
- 5Compatible with various automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other colors |
Total number of potentials | 9 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 7.62?mm?/ 0.3?inches |
Width | 70.5?mm?/ 2.775?inches | Height | 36.2?mm?/ 1.425?inches |
Height from upper-edge of DIN-rail | 31.6?mm?/ 1.244?inches | Depth | 88.4?mm?/ 3.480?inches |
Variable coding | Yes | Mounting type | DIN-35 rail |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Female connector/socket |
Connector (connection type) | for conductor | Mismating protection | Yes |
Plugging without loss of pin spacing | No | Locking of plug-in connection | none |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.805MJ | Actuator color | orange |
Weight | 70.2g | Limit temperature range | -60 … +105?°C |
Processing temperature | -35 … +60?°C | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 6?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4066966115581 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated voltage (III/2) | 1000V |
Rated surge voltage (III/2) | 8kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 8kV | Rated current | 41A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 37A |
Rated voltage UL (Use Group D) | 600V | Rated current UL (Use Group D) | 5A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 35A |
Rated voltage CSA (Use Group D) | 600V | Rated current CSA (Use Group D) | 5A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Lever |
Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.5 … 6?mm2 |
Strip length | 11 … 13?mm?/ 0.43 … 0.51?inches | Number of poles | 9 |
Conductor entry direction to mating direction | 0° |
Specifications may be subject to change without notice
