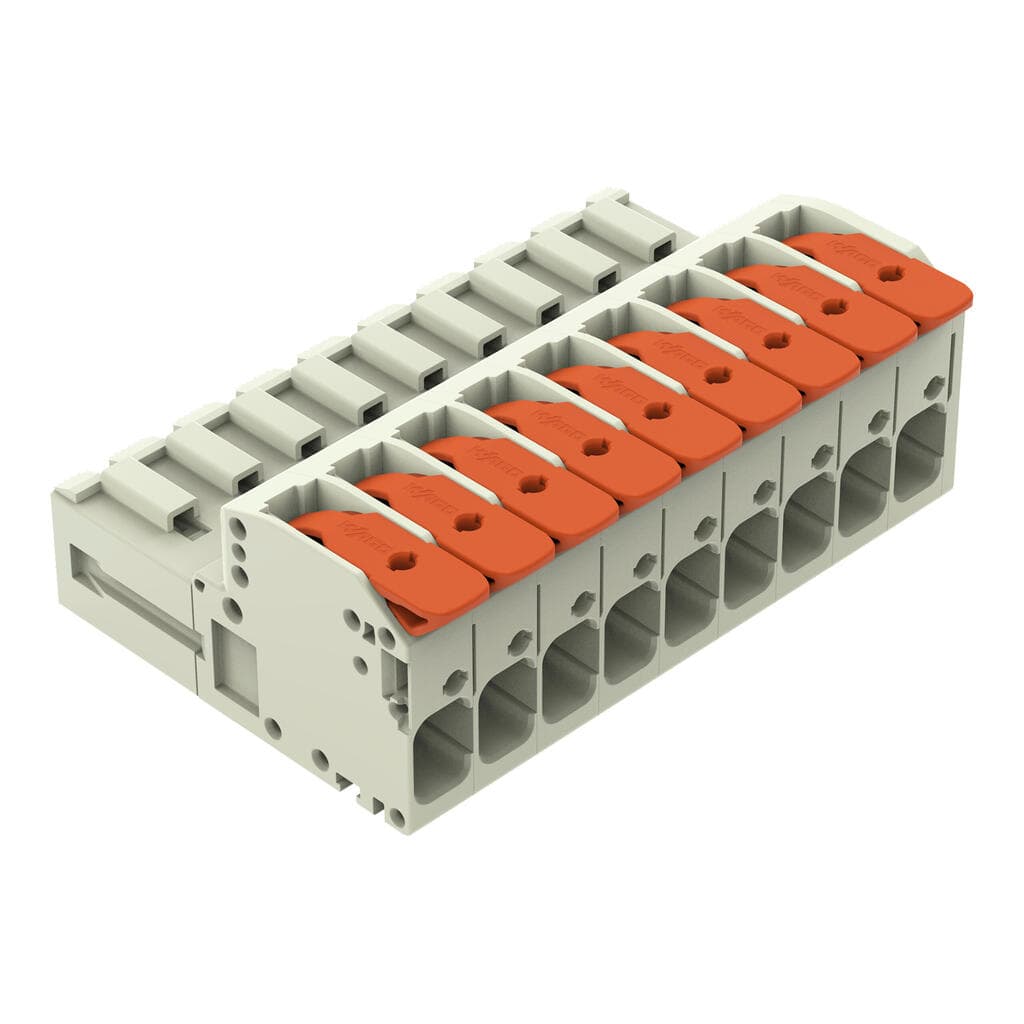

Product Model
831-1209
Selling Points
- 1Ensures maximum safety with no risk of incorrect connections.
- 2Simplifies connection with solid and ferruled conductors, providing secure and maintenance-free connections.
- 3Rated for 41 A, suitable for demanding electrical applications.
- 4Meets stringent standards and specifications, ensuring optimal performance and safety.
- 5Tool-free lever actuation makes installation intuitive and effortless.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other colors |
Clamping units | 9 | Total number of potentials | 9 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 7.62?mm?/ 0.3?inches | Width | 71.5?mm?/ 2.8?inches |
Height | 25?mm?/ 0.984?inches | Depth | 49.2?mm?/ 1.937?inches |
Variable coding | Yes | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for conductor |
Mismating protection | Yes | Plugging without loss of pin spacing | No |
Locking of plug-in connection | none | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.891MJ |
Actuator color | orange | Weight | 55.3g |
Limit temperature range | -60 … +105?°C | Processing temperature | -35 … +60?°C |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 12?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143987363 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
Rated voltage (III/2) | 1000V | Rated surge voltage (III/2) | 8kV |
Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 8kV |
Rated current | 41A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 37A | Rated voltage UL (Use Group D) | 600V |
Rated current UL (Use Group D) | 5A | Rated voltage CSA (Use Group C) | 600V |
Rated current CSA (Use Group C) | 35A | Rated voltage CSA (Use Group D) | 600V |
Rated current CSA (Use Group D) | 5A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Lever | Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.5 … 6?mm2 | Strip length | 11 … 13?mm?/ 0.43 … 0.51?inches |
Number of poles | 9 | Conductor entry direction to mating direction | 0° |
Specifications may be subject to change without notice
