Product Model

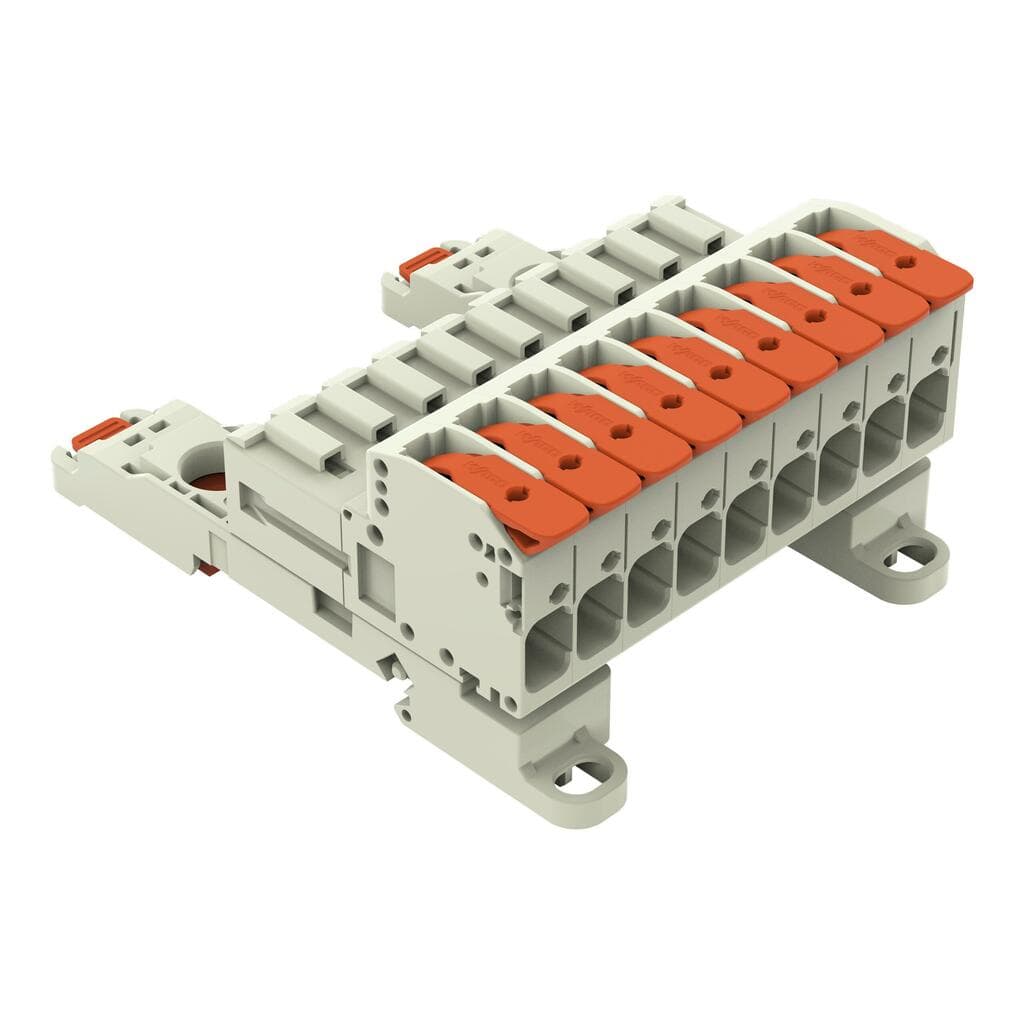

831-1209/306-000
Selling Points
- 1Reliable Connectivity: Ensures secure and stable connections in various applications.
- 2Efficient Installation: Tool-free lever actuation for easy and quick setup.
- 3High-Quality Materials: Durable construction with electro-tin plated components.
- 4Safety Features: 100% protected against mismating and compliant with DIN EN 61984.
- 5Versatile Mounting Options: Compatible with DIN-35 rail and panel mounting systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other colors |
Clamping units | 9 | Total number of potentials | 9 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 7.62?mm?/ 0.3?inches | Width | 71.5?mm?/ 2.8?inches |
Height | 36.2?mm | Depth | 88.4?mm?/ 3.480?inches |
Variable coding | Yes | Mounting type | DIN-35 rail |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Male connector/plug |
Connector (connection type) | for conductor | Mismating protection | Yes |
Plugging without loss of pin spacing | No | Locking of plug-in connection | none |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 1.355MJ | Actuator color | orange |
Weight | 68.2g | Limit temperature range | -60 … +105?°C |
Processing temperature | -35 … +60?°C | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 6?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4066966115666 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated voltage (III/2) | 1000V |
Rated surge voltage (III/2) | 8kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 8kV | Rated current | 41A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 37A |
Rated voltage UL (Use Group D) | 600V | Rated current UL (Use Group D) | 5A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 35A |
Rated voltage CSA (Use Group D) | 600V | Rated current CSA (Use Group D) | 5A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Lever |
Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.5 … 6?mm2 |
Strip length | 11 … 13?mm?/ 0.43 … 0.51?inches | Number of poles | 9 |
Conductor entry direction to mating direction | 0° | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
