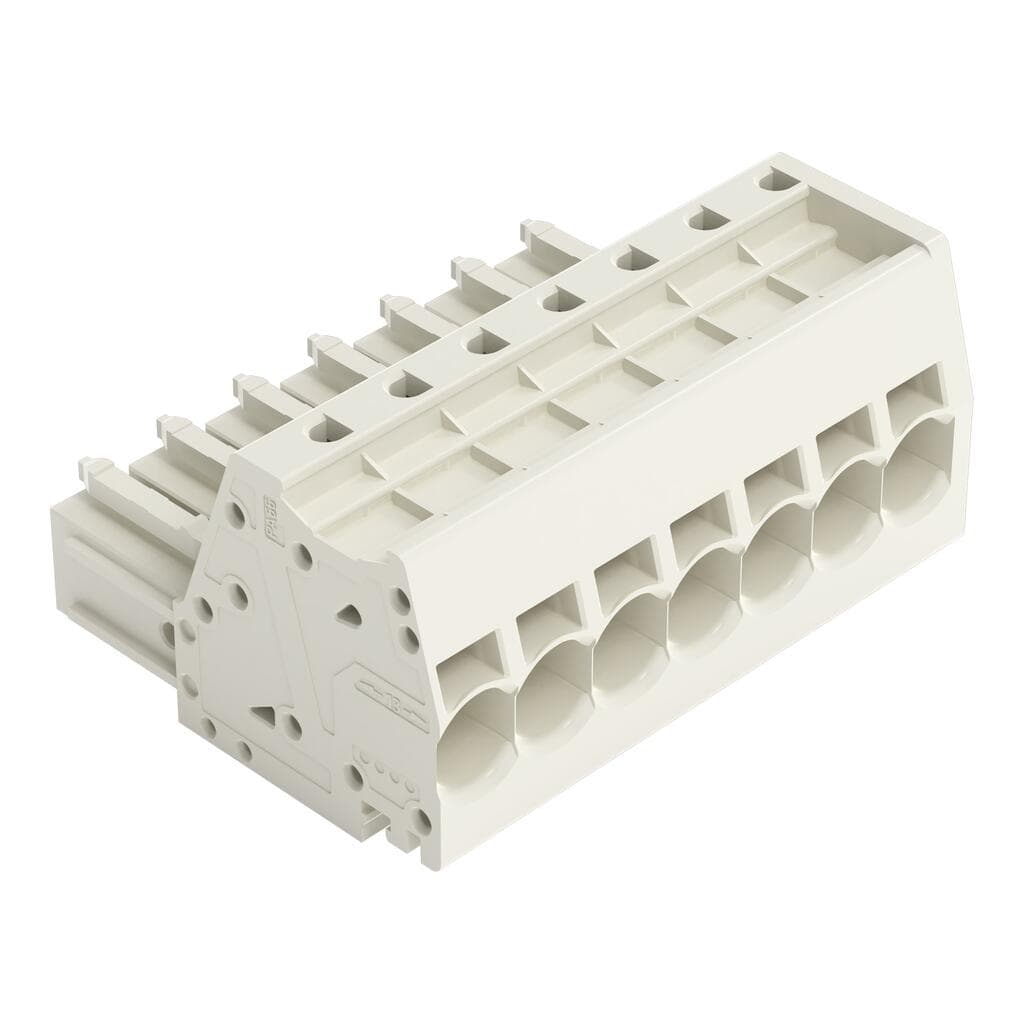

Product Model
831-3107
Selling Points
- 1High-quality, durable construction for long-lasting performance.
- 2Easy-to-use design with quick connection and disconnection.
- 3Ideal for various industrial applications including automation and control systems.
- 4Meets or exceeds industry standards for reliability and safety.
- 5Compatible with a wide range of cables and connectors for versatility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Clamping units | 7 | Total number of potentials | 7 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 7.62?mm?/ 0.3?inches | Width | 55.22?mm?/ 2.174?inches |
Height | 27.6?mm?/ 1.087?inches | Depth | 41.9?mm?/ 1.65?inches |
Variable coding | Yes | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for conductor |
Mismating protection | Yes | Plugging without loss of pin spacing | No |
Locking of plug-in connection | none | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Material of the additional spring for socket contact | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.732MJ | Weight | 51.6g |
Limit temperature range | -60 … +105?°C | Processing temperature | -35 … +60?°C |
Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 12?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454002084 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated voltage (III/2) | 1000V |
Rated surge voltage (III/2) | 8kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 8kV | Rated current | 41A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 42A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 41A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Actuation direction 1 | Operation parallel to conductor entry | Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.5 … 6?mm2 | Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches |
Number of poles | 7 | Conductor entry direction to mating direction | 0° |
