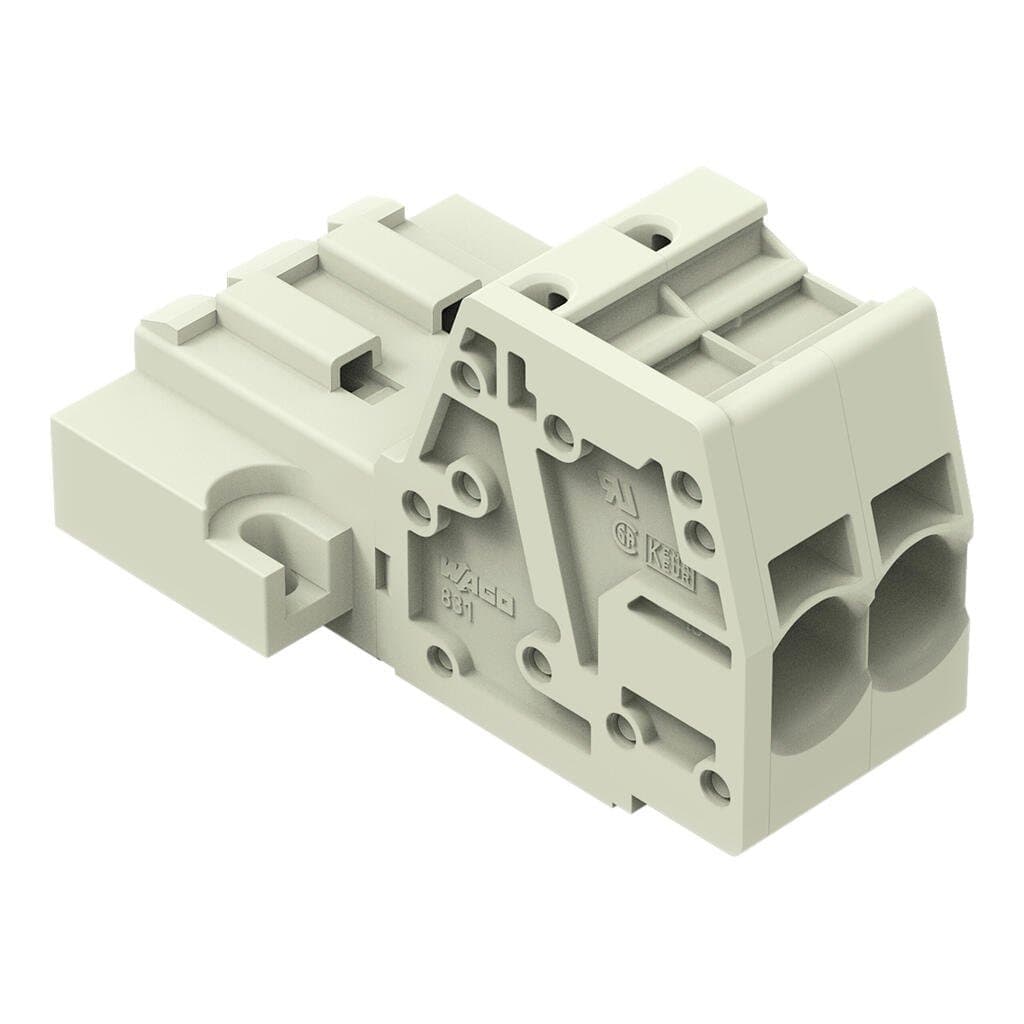

Product Model
831-3202/109-000
Selling Points
- 1100% Mismating Protection: Ensures secure connections every time.
- 2Push-in CAGE CLAMP Technology: Easy and efficient connection method.
- 310 mm² Conductor Capacity: Handles high currents with ease.
- 4Light Gray Color: Durable and visually distinct.
- 5UL and CSA Approvals: Meets stringent safety standards for industrial use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Clamping units | 2 | Total number of potentials | 2 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 7.62?mm?/ 0.3?inches | Width | 30.8?mm?/ 1.214?inches |
Height | 27.6?mm?/ 1.087?inches | Depth | 46?mm?/ 1.811?inches |
Variable coding | Yes | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for conductor |
Mismating protection | Yes | Plugging without loss of pin spacing | No |
Locking of plug-in connection | Threaded flange | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.199MJ |
Weight | 17.1g | Limit temperature range | -60 … +105?°C |
Processing temperature | -35 … +60?°C | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 24?pcs | Packaging type | Box |
Country of origin | PL | GTIN | 4066966091618 |
Customs tariff number | 8536694040 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 21f474d3-02f9-48e3-8139-cbb8fa55576f | SCIP notification number (Belgium) | 7c6162be-dedb-4a7e-8214-287e6b5aad71 |
SCIP notification number (Bulgaria) | b6bd10aa-4e1a-4c2a-a8f6-3ba68ebb56e2 | SCIP notification number (Czech Republic) | d0756671-70df-4c99-8d64-2b352d954c6e |
SCIP notification number (Denmark) | 491976c0-dcea-44d2-9700-5762e388823b | SCIP notification number (Finland) | e3e4fbab-99bb-40c4-a2f4-daf90fd57af6 |
SCIP notification number (France) | 12979cbf-1a8d-4086-a428-6d6d2bec8c6d | SCIP notification number (Germany) | 7ca88f55-d812-4ee6-84ab-97f4a6e1abc0 |
SCIP notification number (Hungary) | 128bffc0-6952-4130-a812-5c937c2bba19 | SCIP notification number (Italy) | 7aff3bf9-5886-4d92-bced-1e228e00b28b |
SCIP notification number (Netherlands) | b5fa249b-39d3-4af6-a138-19b2014336a8 | SCIP notification number (Poland) | 1b7ad89f-7058-4d36-bbe7-f708c3b72c30 |
SCIP notification number (Romania) | cd72f818-4ff4-496a-b581-ecd80e20721f | SCIP notification number (Sweden) | 0c6e182f-afbd-471c-8c3f-bc9c5e65d380 |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated voltage (III/2) | 1000V |
Rated surge voltage (III/2) | 8kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 8kV | Rated current | 41A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 42A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 41A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Actuation direction 1 | Operation parallel to conductor entry | Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.5 … 6?mm2 | Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches |
Number of poles | 2 | Conductor entry direction to mating direction | 0° |
