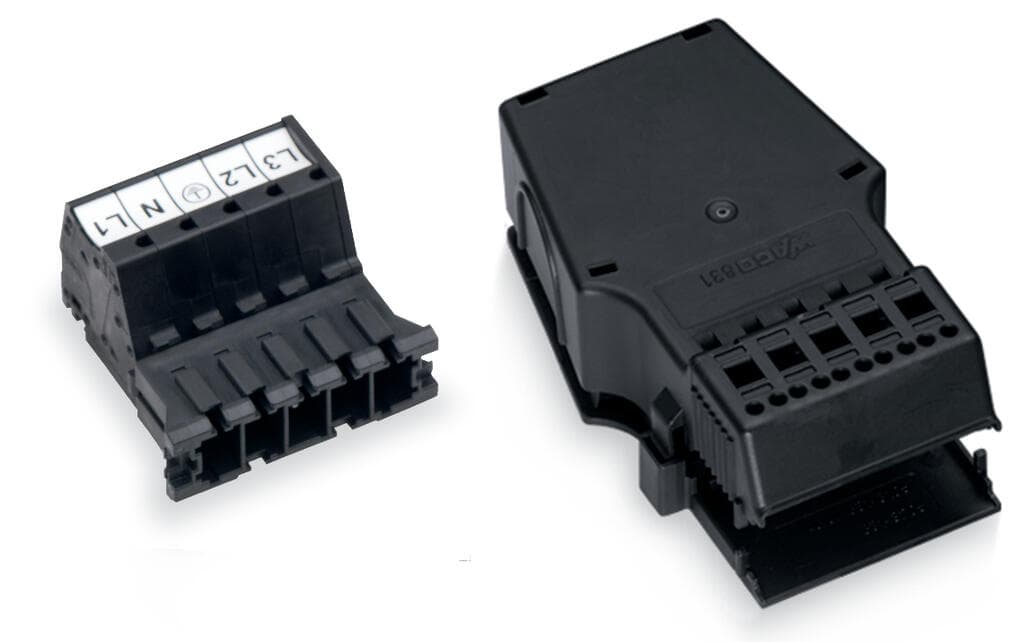

Product Model
831-3205/1020-004
Selling Points
- 1High-Quality Connection Solution: Reliable and durable design for secure electrical connections.
- 25-Pole Configuration: Suitable for various general mains applications with five connection points.
- 3Strain Relief Housing: Protects against mechanical stress and ensures long-lasting performance.
- 4Push-in CAGE CLAMP Technology: Easy to install and maintain with a simple push-in mechanism.
- 5Rated for 35A Current: Handles high currents safely and efficiently in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 5 | Total number of potentials | 5 |
Pin spacing | 7.62?mm?/ 0.3?inches | Width | 48?mm?/ 1.89?inches |
Height | 27.6?mm?/ 1.085?inches | Depth | 46?mm?/ 1.811?inches |
Use | General mains applications | Coding | A |
Variable coding | No | Marking | L1 N ? L2 L3 |
Potential Marking | L1 N ? L2 L3 | Mating force of a plug-in connection | approx. 30 … 70 N (depending on number of poles) |
Retention force of a plug-in connection | Locked: > 80 N | Unmating force of a plug-in connection | Unlocked: approx. 30 … 70 N (depending on pole number) |
Number of mating cycles | 100, without resistive load | Protection type | IP20; When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) |
Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for conductor |
Mismating protection | Yes | Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole |
Locking lever | Can be retrofitted | Locking of plug-in connection | locking lever |
Strain relief | strain relief housing | Note (material data) | Information on material specifications can be found here |
Color | black | Cover color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
Fire load | 1.55MJ | Connector color | black |
Strain relief color | black | Printing color of strain relief | white |
Weight | 69.1g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
eCl@ss 10.0 | 27-44-06-05 | eCl@ss 9.0 | 27-44-06-05 |
ETIM 9.0 | EC002560 | ETIM 8.0 | EC002560 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 5?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143500746 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 35A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Nominal cross-section | 6 mm2 / 8 AWG |
Solid conductor | 0.5 … 6?mm2?/ 20 … 8?AWG | Stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
Fine-stranded conductor | 0.5 … 6?mm2?/ 20 … 8?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 6 mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.5 … 6 mm2 | Strip length | 13?mm?/ 0.51?inches |
Number of poles | 5 | Connectable sheathed cable diameter | 13 … 18?mm |
Conductor entry direction to mating direction | 0° |
Specifications may be subject to change without notice
