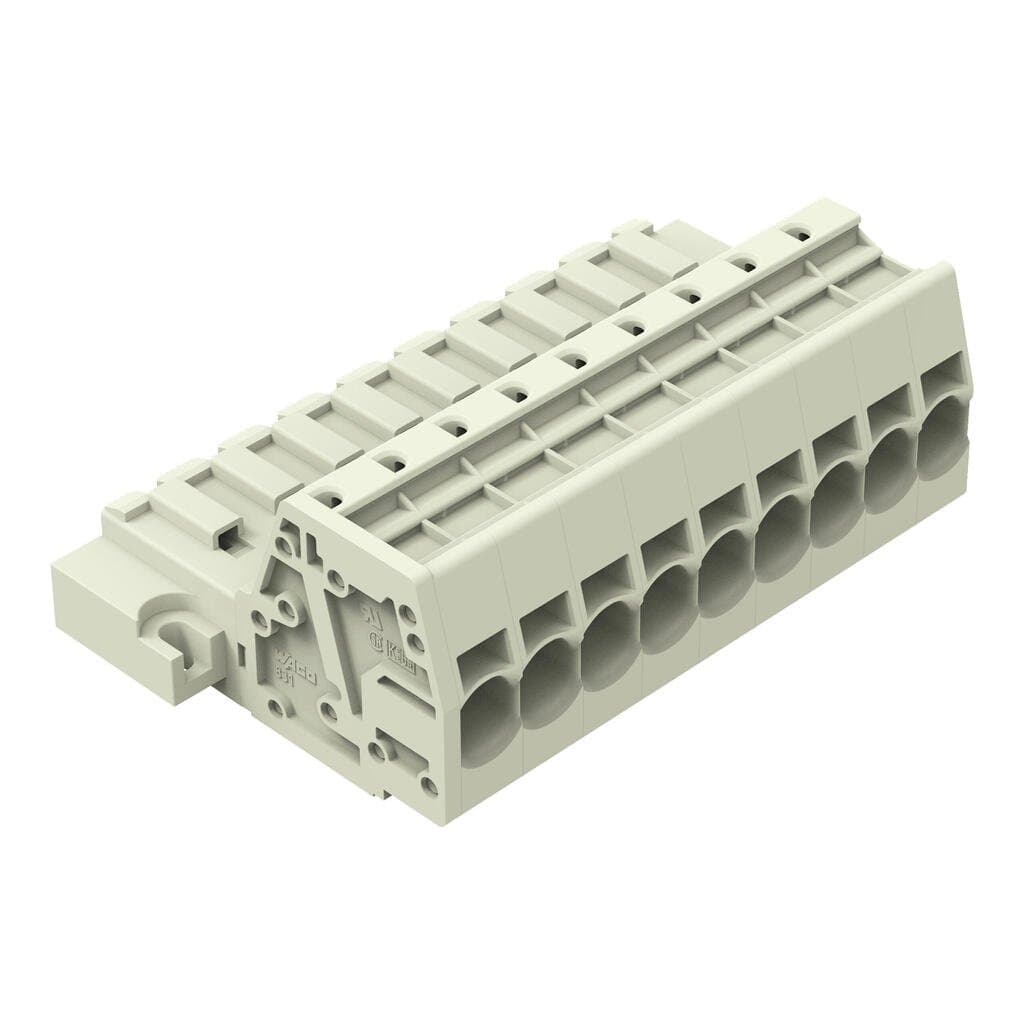

Product Model
831-3209/109-000
Selling Points
- 1100% Mis-Mating Protection: Ensures secure and reliable connections.
- 2Universal Connection: Compatible with all conductor types, including solid and fine-stranded conductors.
- 3Integrated Test Ports: Facilitates easy testing with 2 mm diameter test plugs.
- 4High Voltage Ratings: Rated for 600 V UL, 1000 V IEC, and 800 V III/3.
- 5Durable Construction: Made with polyamide insulation and electrolytic copper contacts.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Clamping units | 9 | Total number of potentials | 9 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 7.62?mm?/ 0.3?inches | Width | 84.2?mm?/ 3.314?inches |
Height | 27.6?mm?/ 1.087?inches | Depth | 46?mm?/ 1.811?inches |
Variable coding | Yes | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for conductor |
Mismating protection | Yes | Plugging without loss of pin spacing | No |
Locking of plug-in connection | Threaded flange | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.787MJ |
Weight | 61.2g | Limit temperature range | -60 … +105?°C |
Processing temperature | -35 … +60?°C | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 12?pcs | Packaging type | Box |
Country of origin | PL | GTIN | 4066966091595 |
Customs tariff number | 8536694040 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 3597ee98-1e62-4b5c-a3e7-f50c19cf53c7 | SCIP notification number (Belgium) | 5b088f9c-fdc2-4c5d-ac93-6efa0e48a43e |
SCIP notification number (Bulgaria) | 4870d069-da6f-45e4-ac9e-5936b611ffce | SCIP notification number (Czech Republic) | d5c1375c-3fcf-4e43-bec9-1cedd6f58b56 |
SCIP notification number (Denmark) | a22adf40-e55c-4794-a9e8-87d540322407 | SCIP notification number (Finland) | c80be167-529b-422a-8df1-e365120f625b |
SCIP notification number (France) | 0f2d8408-542c-47e2-be12-87fc416b4186 | SCIP notification number (Germany) | 07edf026-1f1e-405c-85ab-0f8193d19240 |
SCIP notification number (Hungary) | 7c9e5f25-1823-4a92-8d40-da9b5639d2b6 | SCIP notification number (Italy) | 29dd9fd7-af66-4473-b3b3-46189845ce1d |
SCIP notification number (Netherlands) | 20b761ca-7229-4d80-a594-1ad59ecbcdcc | SCIP notification number (Poland) | 034b3b96-140a-42f3-85e3-63cbea4ef7d3 |
SCIP notification number (Romania) | b3bf2521-0e39-4886-87a6-ecd121bf1542 | SCIP notification number (Sweden) | 6ed3a9e5-5091-4bf4-af8b-d70a90394a02 |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated voltage (III/2) | 1000V |
Rated surge voltage (III/2) | 8kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 8kV | Rated current | 41A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 42A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 41A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Actuation direction 1 | Operation parallel to conductor entry | Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.5 … 6?mm2 | Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches |
Number of poles | 9 | Conductor entry direction to mating direction | 0° |
Specifications may be subject to change without notice
