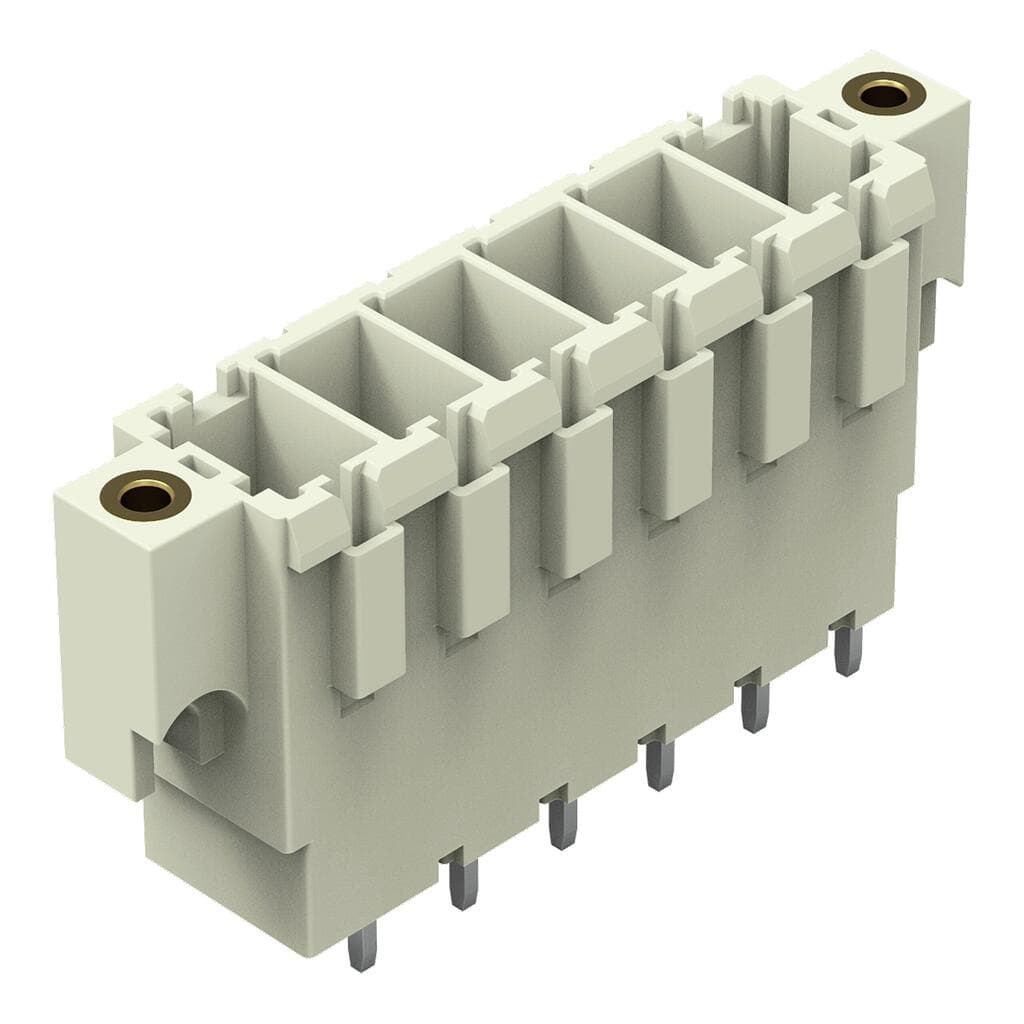

Product Model
831-3606/108-000
Selling Points
- 1Ensures secure connections and prevents accidental mismating.
- 2Suitable for various PCB applications requiring multiple connections.
- 3Straight solder pins for easy mounting and reliable electrical connections.
- 4Provides a secure locking mechanism for the plug-in connection.
- 5Durable and resistant to high temperatures, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Total number of potentials | 6 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 7.62?mm?/ 0.3?inches |
Width | 61.3?mm?/ 2.414?inches | Height | 33?mm?/ 1.299?inches |
Height from the surface | 29?mm?/ 1.142?inches | Depth | 14.8?mm?/ 0.583?inches |
Solder pin length | 4mm | Solder pin dimensions | 1 x 1.2?mm |
Drilled hole diameter with tolerance | 1.7(+0.1)mm | Variable coding | Yes |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Male header |
Connector (connection type) | for PCB | Mismating protection | Yes |
Plugging without loss of pin spacing | No | Mating direction to the PCB | 90° |
Locking of plug-in connection | Threaded flange | PCB contact | THT |
Solder pin arrangement | over the entire male connector (in-line) | Number of solder pins per potential | 3 |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Weight | 19.8g |
Limit temperature range | -60 … +105?°C | Processing temperature | -35 … +60?°C |
ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 24?pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4066966090895 | Customs tariff number | 8536694040 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 8e041bc8-059e-4017-ac54-c55db36bf884 |
SCIP notification number (Belgium) | a641410d-2e59-46f9-8d3d-ab567bd6c6f4 | SCIP notification number (Bulgaria) | faf3b4a3-46f8-4aef-a96a-c177b419263d |
SCIP notification number (Czech Republic) | 08c2e254-e87e-41f5-b78c-70a56bc78f1b | SCIP notification number (Denmark) | 547febf3-65ec-4b30-b2e4-1d4e68d36f25 |
SCIP notification number (Finland) | 90adcc7c-ca96-43a7-b272-2068b5110346 | SCIP notification number (France) | 44e86d0b-dae2-4177-b2a9-0c8946353b97 |
SCIP notification number (Germany) | 3a453a75-a8b4-4ffe-823d-dd0244801979 | SCIP notification number (Hungary) | 6d2abd60-47a0-4ea0-a65f-bccd0ae03bb0 |
SCIP notification number (Italy) | 03d7e905-c9a9-4047-9205-a142e4c870dc | SCIP notification number (Netherlands) | 307560f8-bcfe-4088-9767-3a00e0d883af |
SCIP notification number (Poland) | d34a3b64-be07-41e4-a9a7-0454ab947f19 | SCIP notification number (Romania) | e7e22688-1182-4623-8e34-4ea417990352 |
SCIP notification number (Sweden) | e7f640e4-0ab7-4234-9d02-c429f89df688 | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated voltage (III/2) | 630V | Rated surge voltage (III/2) | 6kV |
Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 6kV |
Rated current | 41A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group C) | 300V |
Rated current UL (Use Group C) | 42A | Rated voltage UL (Use Group D) | 600V |
Rated current UL (Use Group D) | 5A | Rated voltage CSA (Use Group C) | 300V |
Rated current CSA (Use Group C) | 41A | Rated voltage CSA (Use Group D) | 600V |
Rated current CSA (Use Group D) | 5A | Number of poles | 6 |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
