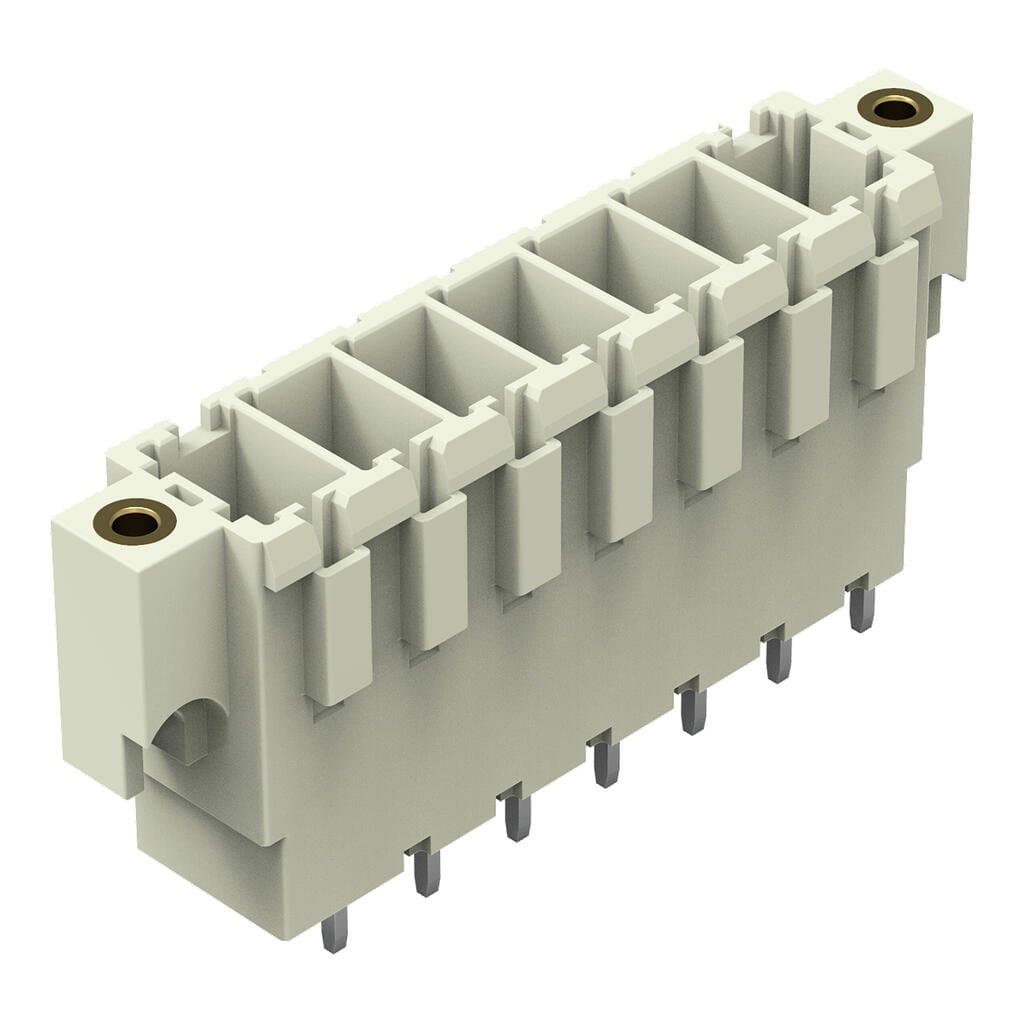

Product Model
831-3607/108-000
Selling Points
- 1High-Quality Solder Pins: 1.0 x 1.2 mm solder pins ensure robust electrical connections.
- 2100% Mismatch Protection: Designed to prevent mismating, ensuring reliable connections every time.
- 3Straight Design: Straight solder pins for easy mounting and use.
- 4Threaded Flange: Provides a secure mounting option with a threaded flange.
- 5Light Gray Finish: Durable light gray finish for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Total number of potentials | 7 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 7.62?mm?/ 0.3?inches |
Width | 68.9?mm?/ 2.714?inches | Height | 33?mm?/ 1.299?inches |
Height from the surface | 29?mm?/ 1.142?inches | Depth | 14.8?mm?/ 0.583?inches |
Solder pin length | 4mm | Solder pin dimensions | 1 x 1.2?mm |
Drilled hole diameter with tolerance | 1.7(+0.1)mm | Variable coding | Yes |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Male header |
Connector (connection type) | for PCB | Mismating protection | Yes |
Plugging without loss of pin spacing | No | Mating direction to the PCB | 90° |
Locking of plug-in connection | Threaded flange | PCB contact | THT |
Solder pin arrangement | over the entire male connector (in-line) | Number of solder pins per potential | 3 |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Weight | 22.4g |
Limit temperature range | -60 … +105?°C | Processing temperature | -35 … +60?°C |
ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 12?pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4066966090871 | Customs tariff number | 8536694040 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 18a5d67e-7fde-4205-b8c9-3bc2ae176cef |
SCIP notification number (Belgium) | 2f2ea772-9cef-4e7b-98b0-c5c460d211d1 | SCIP notification number (Bulgaria) | 28dd1dd5-bb5b-46df-9f30-80f386c10a72 |
SCIP notification number (Czech Republic) | e5987080-ddf0-49f3-b2bb-17a0388b2aab | SCIP notification number (Denmark) | e5fdca0c-8dc5-4485-a426-7b6d5addc2dd |
SCIP notification number (Finland) | acf98ee4-263d-4640-ab8b-0b4419dab87e | SCIP notification number (France) | 5a8e6430-4316-44a6-9a63-657e795f9b86 |
SCIP notification number (Germany) | 621579bc-0e49-4d29-b36f-8f5d855051a9 | SCIP notification number (Hungary) | 23121c02-9c23-49b8-8871-f50c15b17db4 |
SCIP notification number (Italy) | 75ddecb0-f17c-4f43-b586-3d88226cc638 | SCIP notification number (Netherlands) | 522d113f-28f5-41e7-86ac-ce5ef2ecac76 |
SCIP notification number (Poland) | 061aaddb-b45b-428a-a6de-025e7e3942e9 | SCIP notification number (Romania) | 833bc0c4-140e-4278-b56f-94d6f91f1325 |
SCIP notification number (Sweden) | a5768874-4233-460f-b49b-c15d307697af | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated voltage (III/2) | 630V | Rated surge voltage (III/2) | 6kV |
Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 6kV |
Rated current | 41A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group C) | 300V |
Rated current UL (Use Group C) | 42A | Rated voltage UL (Use Group D) | 600V |
Rated current UL (Use Group D) | 5A | Rated voltage CSA (Use Group C) | 300V |
Rated current CSA (Use Group C) | 41A | Rated voltage CSA (Use Group D) | 600V |
Rated current CSA (Use Group D) | 5A | Number of poles | 7 |
