Product Model

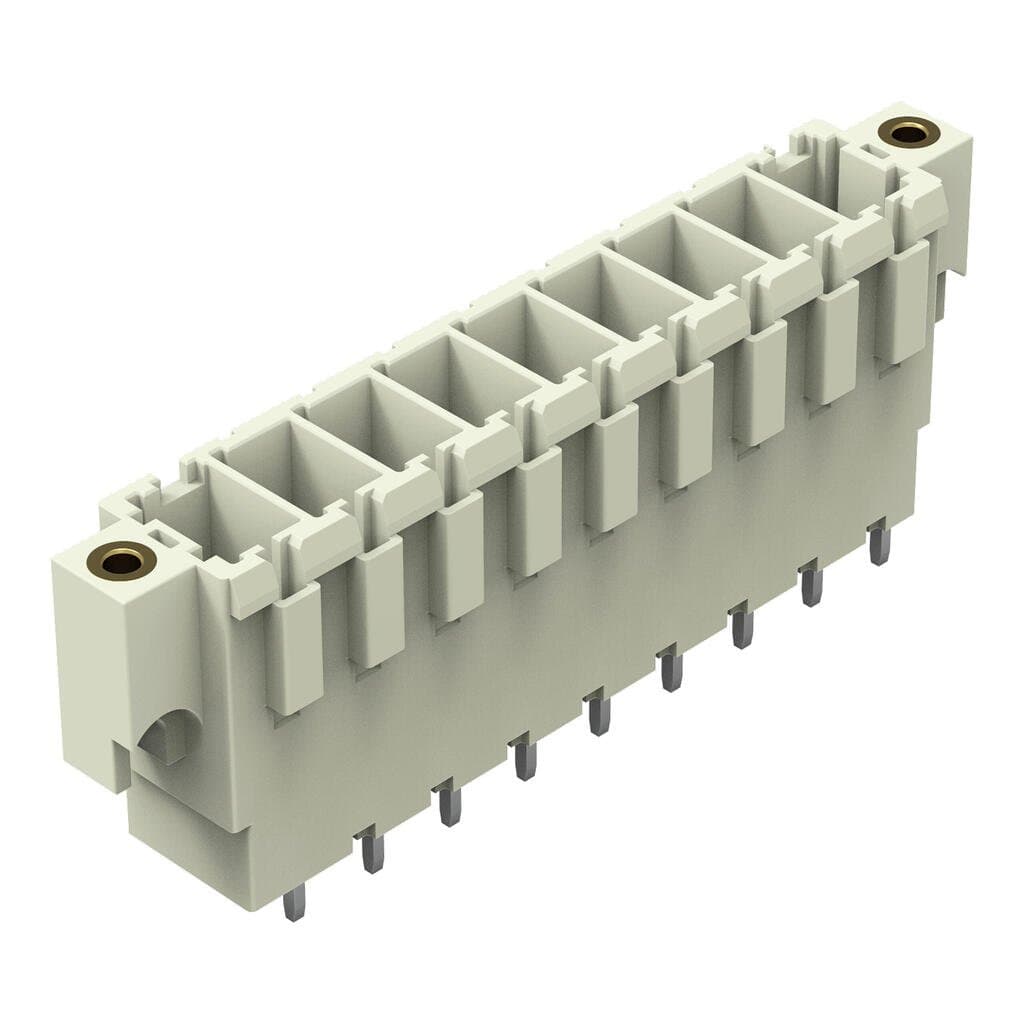

831-3609/108-000
Selling Points
- 1Ensures secure connections with no risk of incorrect mating.
- 2Simplifies wiring with vertical and horizontal actuation for the CAGE CLAMP.
- 3Enhances reliability with unique coding to prevent mismating.
- 4Suitable for applications requiring compact, high-density connections.
- 5Compatible with THR (Through-Hole Reflow) male headers in tape-and-reel packaging for efficient assembly.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Total number of potentials | 9 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 7.62?mm?/ 0.3?inches |
Width | 84.2?mm?/ 3.314?inches | Height | 33?mm?/ 1.299?inches |
Height from the surface | 29?mm?/ 1.142?inches | Depth | 14.8?mm?/ 0.583?inches |
Solder pin length | 4mm | Solder pin dimensions | 1 x 1.2?mm |
Drilled hole diameter with tolerance | 1.7(+0.1)mm | Variable coding | Yes |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Male header |
Connector (connection type) | for PCB | Mismating protection | Yes |
Plugging without loss of pin spacing | No | Mating direction to the PCB | 90° |
Locking of plug-in connection | Threaded flange | PCB contact | THT |
Solder pin arrangement | over the entire male connector (in-line) | Number of solder pins per potential | 3 |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Weight | 27.8g |
Limit temperature range | -60 … +105?°C | Processing temperature | -35 … +60?°C |
ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 12?pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4066966090833 | Customs tariff number | 8536694040 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 15683312-5d3d-41a5-b070-2fd499fef8c9 |
SCIP notification number (Belgium) | a27fac0e-e3db-4fa1-9aec-380ab032ec16 | SCIP notification number (Bulgaria) | d0588fc2-7881-4de2-8b1d-ba8c14767052 |
SCIP notification number (Czech Republic) | 1a12c2fc-2c6d-45a6-aff1-acac75dc1dc4 | SCIP notification number (Denmark) | fa1f90ef-47ac-4c3b-9518-40f708878d53 |
SCIP notification number (Finland) | fba454f2-98dc-4f89-93b3-c637e6f8b9d5 | SCIP notification number (France) | 98dc8c03-2b0f-4b74-a17e-a4b1fc96f164 |
SCIP notification number (Germany) | f2baaf7c-639b-4efa-86b3-853f67d10739 | SCIP notification number (Hungary) | 9fe77515-b908-4d93-ab9a-dd0cce8064ee |
SCIP notification number (Italy) | 003edb06-abc3-4b93-81df-2d11146b98d2 | SCIP notification number (Netherlands) | fe9e9995-796d-4ff2-b23d-2230b908cff6 |
SCIP notification number (Poland) | 1d6c4bbc-f79b-4f6a-a32d-2b7c7fa77e8f | SCIP notification number (Romania) | b3a0c75a-b38e-4b3d-b37b-41e76cae6947 |
SCIP notification number (Sweden) | ab5ce183-4b22-46e3-95ba-bab443aa5f40 | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated voltage (III/2) | 630V | Rated surge voltage (III/2) | 6kV |
Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 6kV |
Rated current | 41A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group C) | 300V |
Rated current UL (Use Group C) | 42A | Rated voltage UL (Use Group D) | 600V |
Rated current UL (Use Group D) | 5A | Rated voltage CSA (Use Group C) | 300V |
Rated current CSA (Use Group C) | 41A | Rated voltage CSA (Use Group D) | 600V |
Rated current CSA (Use Group D) | 5A | Number of poles | 9 |
