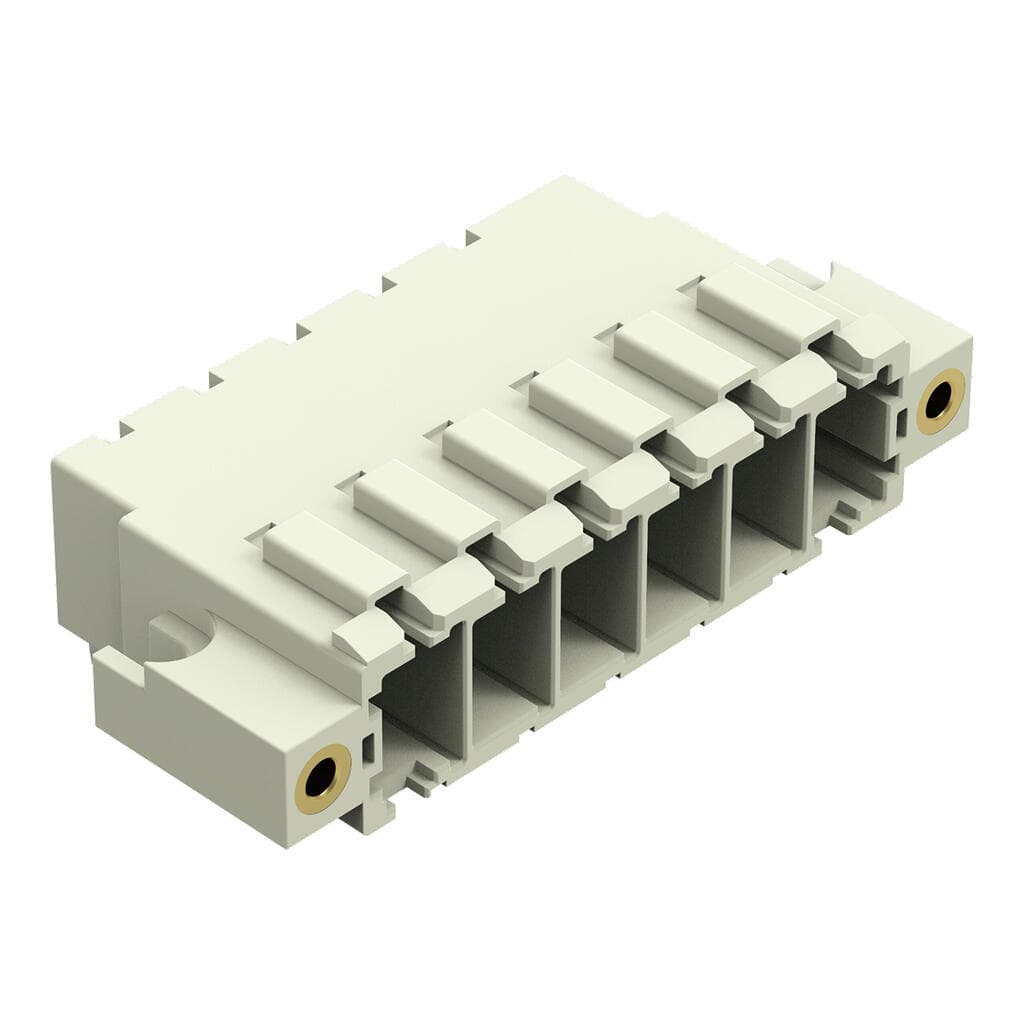

Product Model
831-3626/108-000
Selling Points
- 1High Electrical and Mechanical Stability: Three solder pins per pole ensure reliable connections.
- 2Angled Solder Pins: Easily mountable horizontally or vertically for versatile use.
- 3100% Mismating Protection: Prevents incorrect mating, ensuring secure connections.
- 4Threaded Flange: Secure locking mechanism for the plug in connection.
- 5Light Gray Finish: Durable and easy-to-spot light gray color for better visibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Total number of potentials | 6 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 7.62?mm?/ 0.3?inches |
Width | 61.3?mm?/ 2.414?inches | Height | 18.8?mm?/ 0.74?inches |
Height from the surface | 14.8?mm?/ 0.583?inches | Depth | 29?mm?/ 1.142?inches |
Solder pin length | 4mm | Solder pin dimensions | 1 x 1.2?mm |
Drilled hole diameter with tolerance | 1.7(+0.1)mm | Variable coding | Yes |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Male header |
Connector (connection type) | for PCB | Mismating protection | Yes |
Plugging without loss of pin spacing | No | Mating direction to the PCB | 0° |
Locking of plug-in connection | Threaded flange | PCB contact | THT |
Solder pin arrangement | over the entire male connector (in-line) | Number of solder pins per potential | 3 |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Weight | 18.6g |
Limit temperature range | -60 … +105?°C | Processing temperature | -35 … +60?°C |
ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 24?pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4066966089998 | Customs tariff number | 8536694040 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 4f16a59e-8618-4e54-9003-cb0de9ac3a26 |
SCIP notification number (Belgium) | 38c5072a-a56a-4a47-937b-ed595f6c3638 | SCIP notification number (Bulgaria) | 3be5f604-24f2-495e-bb99-fd2aae58ce92 |
SCIP notification number (Czech Republic) | 8ef07e26-0355-45e8-b749-a2eb6d514677 | SCIP notification number (Denmark) | 88c6aff5-b579-4ff8-92cf-ad234c496707 |
SCIP notification number (Finland) | 63cc6e05-0a8d-46c7-a556-d625598df493 | SCIP notification number (France) | 31ad1e78-acdb-43da-a196-1a727f81ec58 |
SCIP notification number (Germany) | 2ad4203f-0cf4-454b-b8a7-278c094734c9 | SCIP notification number (Hungary) | 1e58d0ac-2614-47a6-bcbc-6bbd0093361e |
SCIP notification number (Italy) | 7a9d6160-6997-49d8-976b-9a1740b88e63 | SCIP notification number (Netherlands) | e712025f-ba86-4ef3-ae7e-90038bcf676e |
SCIP notification number (Poland) | 81f42db9-a805-4ff4-add2-e5fb806e47c4 | SCIP notification number (Romania) | 79477254-5053-45f5-b8ab-e6d7bc212875 |
SCIP notification number (Sweden) | 887220b3-c8ff-4ec0-bbf6-748a16e4394c | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated voltage (III/2) | 630V | Rated surge voltage (III/2) | 6kV |
Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 6kV |
Rated current | 41A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group C) | 300V |
Rated current UL (Use Group C) | 42A | Rated voltage UL (Use Group D) | 600V |
Rated current UL (Use Group D) | 5A | Rated voltage CSA (Use Group C) | 300V |
Rated current CSA (Use Group C) | 41A | Rated voltage CSA (Use Group D) | 600V |
Rated current CSA (Use Group D) | 5A | Number of poles | 6 |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
