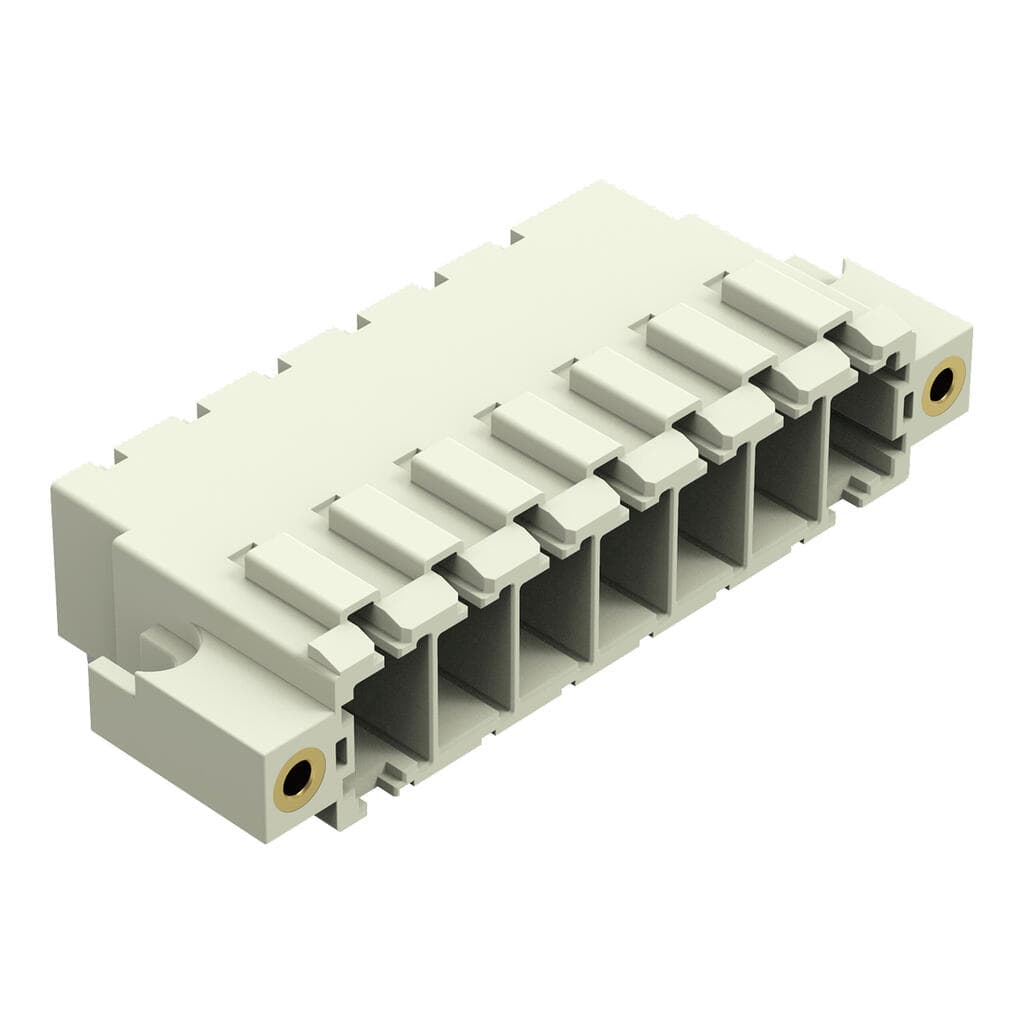

Product Model
831-3627/108-000
Selling Points
- 1Angled Solder Pins: 1.0 x 1.2 mm solder pins for precise PCB connections.
- 2100% Mismating Protection: Ensures secure and reliable connections.
- 3Threaded Flange: Easy mounting options for horizontal or vertical installation.
- 4RoHS Compliant: Meets environmental standards for sustainable electronics.
- 5High Electrical Stability: Three solder pins per pole provide high electrical and mechanical stability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Total number of potentials | 7 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 7.62?mm?/ 0.3?inches |
Width | 68.9?mm?/ 2.714?inches | Height | 18.8?mm?/ 0.74?inches |
Height from the surface | 14.8?mm?/ 0.583?inches | Depth | 29?mm?/ 1.142?inches |
Solder pin length | 4mm | Solder pin dimensions | 1 x 1.2?mm |
Drilled hole diameter with tolerance | 1.7(+0.1)mm | Variable coding | Yes |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Male header |
Connector (connection type) | for PCB | Mismating protection | Yes |
Plugging without loss of pin spacing | No | Mating direction to the PCB | 0° |
Locking of plug-in connection | Threaded flange | PCB contact | THT |
Solder pin arrangement | over the entire male connector (in-line) | Number of solder pins per potential | 3 |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Weight | 21.1g |
Limit temperature range | -60 … +105?°C | Processing temperature | -35 … +60?°C |
ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 12?pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4066966090000 | Customs tariff number | 8536694040 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 8af31e29-d125-4917-9bdf-5c0ea2690547 |
SCIP notification number (Belgium) | 81bca80c-f728-4afb-8ace-59c1396affa7 | SCIP notification number (Bulgaria) | a88fe73a-e90c-4be6-8d8a-4f33f55bfd92 |
SCIP notification number (Czech Republic) | d7bbaae3-265f-4ccc-ac66-6a4d5a455a88 | SCIP notification number (Denmark) | 046009df-a978-4360-879f-0cf1183f6995 |
SCIP notification number (Finland) | 8b6c7816-be7a-4378-b50d-796f8f5a9044 | SCIP notification number (France) | 60f16464-4d97-4a26-bbb5-5b16615c3e7d |
SCIP notification number (Germany) | 93aabb66-d622-4cfb-a644-c1f709cb57bb | SCIP notification number (Hungary) | fc014adb-28f2-4609-b169-7e142328db91 |
SCIP notification number (Italy) | 7258bca6-7661-40b4-9835-2d3a887952fb | SCIP notification number (Netherlands) | 1b1aabba-8070-4256-8d5f-6f3702c0e7ab |
SCIP notification number (Poland) | 0d344fa3-50e0-4193-a805-c0ed1c803eb8 | SCIP notification number (Romania) | 9a97eb04-6f3f-4e13-94a4-670c14eebbf5 |
SCIP notification number (Sweden) | 21088881-3fe5-4e11-9894-5cc4af1eaedc | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated voltage (III/2) | 630V | Rated surge voltage (III/2) | 6kV |
Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 6kV |
Rated current | 41A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group C) | 300V |
Rated current UL (Use Group C) | 42A | Rated voltage UL (Use Group D) | 600V |
Rated current UL (Use Group D) | 5A | Rated voltage CSA (Use Group C) | 300V |
Rated current CSA (Use Group C) | 41A | Rated voltage CSA (Use Group D) | 600V |
Rated current CSA (Use Group D) | 5A | Number of poles | 7 |
Specifications may be subject to change without notice
