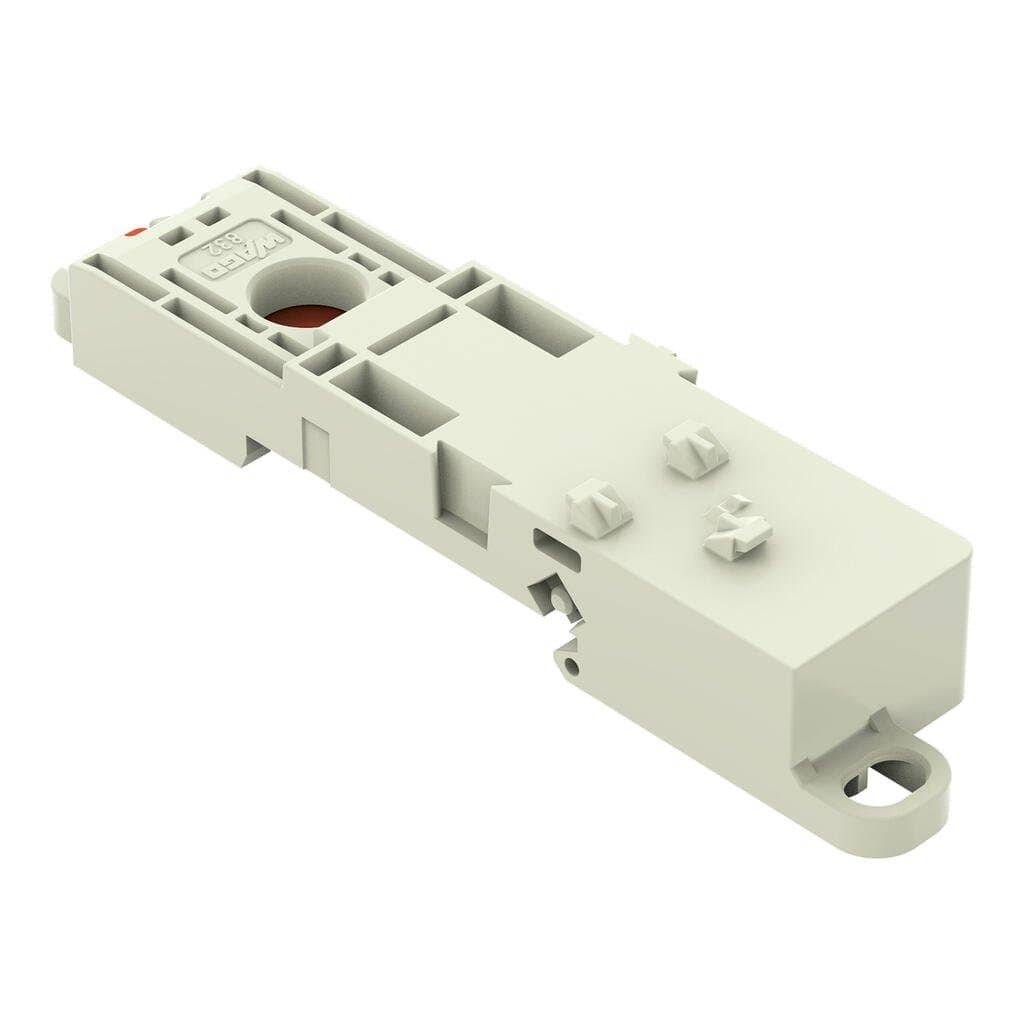

Product Model
832-1038
Selling Points
- 1Designed for seamless integration with DIN-35 rail systems.
- 2Available in a durable light gray finish.
- 3Easy to install with snap-in mounting mechanism.
- 4Meets environmental requirements with a temperature range of -60°C to +120°C.
- 5Constructed from high-quality polybutylene terephthalate (PBT) for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 20.2?mm?/ 0.795?inches | Height | 13.4?mm?/ 0.528?inches |
Height from upper-edge of DIN-rail | 8.8?mm?/ 0.346?inches | Depth | 92.9?mm?/ 3.657?inches |
Mounting type | Panel mounting | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polybutylene terephthalate (PBT) | Flammability class per UL94 | V0 |
Fire load | 0.382MJ | Weight | 10.2g |
Limit temperature range | -60 … +120?°C | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?pcs | Packaging type | Box |
Country of origin | PL | GTIN | 4066966112436 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
