Product Model

832-1105/306-000

In Stock
Last updated: 2025/4/21
wago 832-1105/306-000

Selling Points

  • 1100% protected against mismating for secure connections.
  • 21-conductor female plug design for easy installation.
  • 3Compatible with TS 35/Oberflächenmontage systems.
  • 4Rastermaß 10,16 mm for precise spacing.
  • 55-polig configuration for versatile use.
Product Details

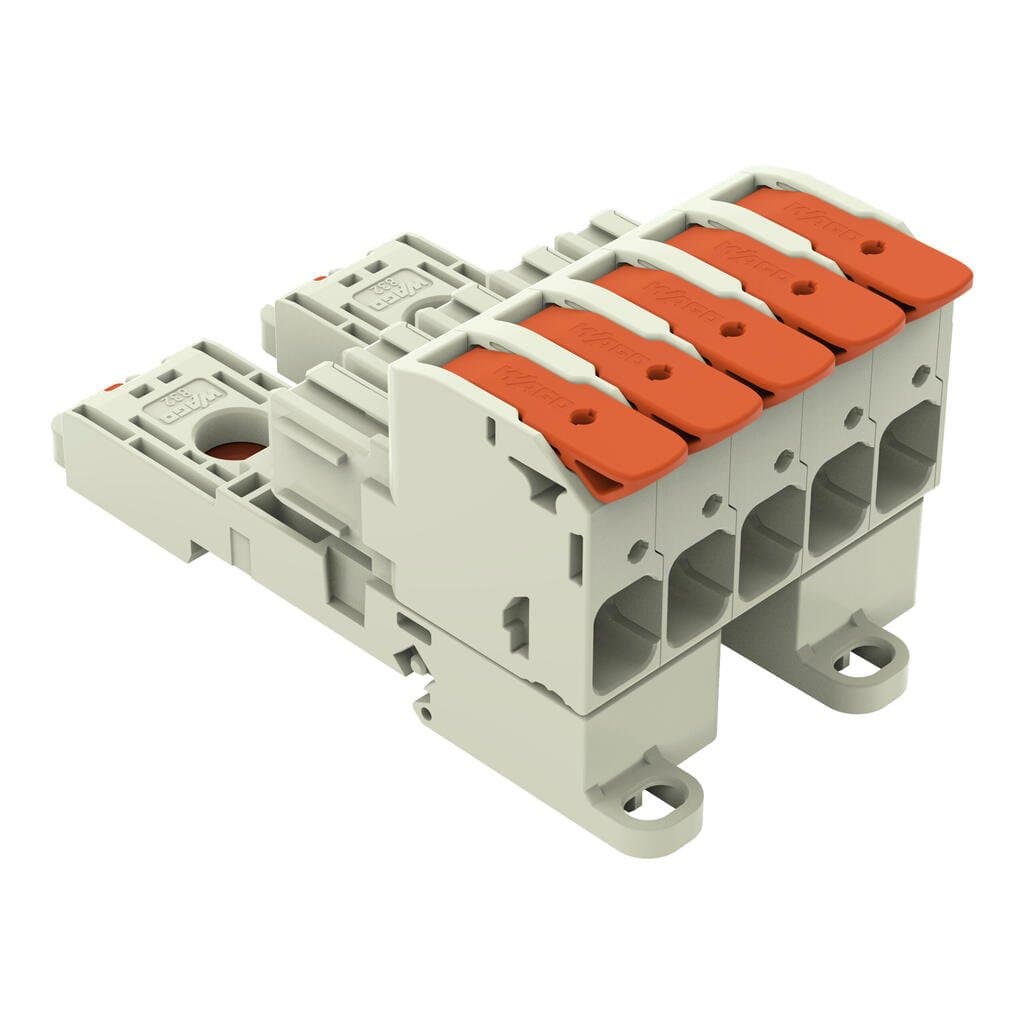

832-1105/306-000
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Safety information
TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Variants:
Other pole numbers
Total number of potentials
5
Number of connection types
1
Number of levels
1
Pin spacing
10.16?mm?/ 0.4?inches
Width
52.1?mm?/ 2.051?inches
Height
42.5?mm?/ 1.673?inches
Depth
92.9?mm?/ 3.657?inches
Variable coding
Yes
Mounting type
DIN-35 rail
Anti-rotation protection
Yes
Contact type (pluggable connector)
Female connector/socket
Connector (connection type)
for conductor
Mismating protection
Yes
Plugging without loss of pin spacing
No
Locking of plug-in connection
none
Note (material data)
Information on material specifications can be found here
Color
light gray
Material group
I
Insulation material (main housing)
Polybutylene terephthalate (PBT)
Flammability class per UL94
V0
Clamping spring material
Chrome-nickel spring steel (CrNi)
Material of the additional spring for socket contact
Chrome-nickel spring steel (CrNi)
Contact material
Electrolytic copper (ECu)
Contact plating
Silver
Fire load
1.904MJ
Actuator color
orange
Weight
87.2g
Limit temperature range
-60 … +120?°C
Processing temperature
-35 … +60?°C
ETIM 9.0
EC001284
ETIM 8.0
EC001284
ECCN
NO US CLASSIFICATION
PU (SPU)
5?pcs
Packaging type
Box
Country of origin
DE
GTIN
4066966114553
Customs tariff number
8536694040
RoHS Compliance Status
Compliant,No Exemption
Ratings per
IEC/EN 60664-1
Rated voltage (III / 3)
1000V
Rated impulse voltage (III / 3)
8kV
Rated voltage (III/2)
1000V
Rated surge voltage (III/2)
8kV
Nominal voltage (II/2)
1000V
Rated surge voltage (II/2)
8kV
Rated current
76A
Legend (ratings)
(III / 2) ? Overvoltage category III / Pollution degree 2
Approvals per
CSA
Rated voltage UL (Use Group B)
600V
Rated current UL (Use Group B)
66A
Rated voltage UL (Use Group C)
600V
Rated current UL (Use Group C)
66A
Rated voltage (UL 1977)
600V
Rated current UL 1977
85A
Rated voltage CSA (Use Group B)
600V
Rated current CSA (Use Group B)
66A
Rated voltage CSA (Use Group C)
600V
Rated current CSA (Use Group C)
66A
Connection technology
Push-in CAGE CLAMP?
Actuation type
Lever
Solid conductor
0.75 … 16?mm2?/ 18 … 4?AWG
Fine-stranded conductor
0.75 … 25?mm2?/ 18 … 4?AWG
Fine-stranded conductor; with insulated ferrule
0.75 … 16?mm2
Fine-stranded conductor; with uninsulated ferrule
0.75 … 16?mm2
Strip length
18 … 20?mm?/ 0.71 … 0.79?inches
Number of poles
5
Conductor entry direction to mating direction

Specifications may be subject to change without notice
