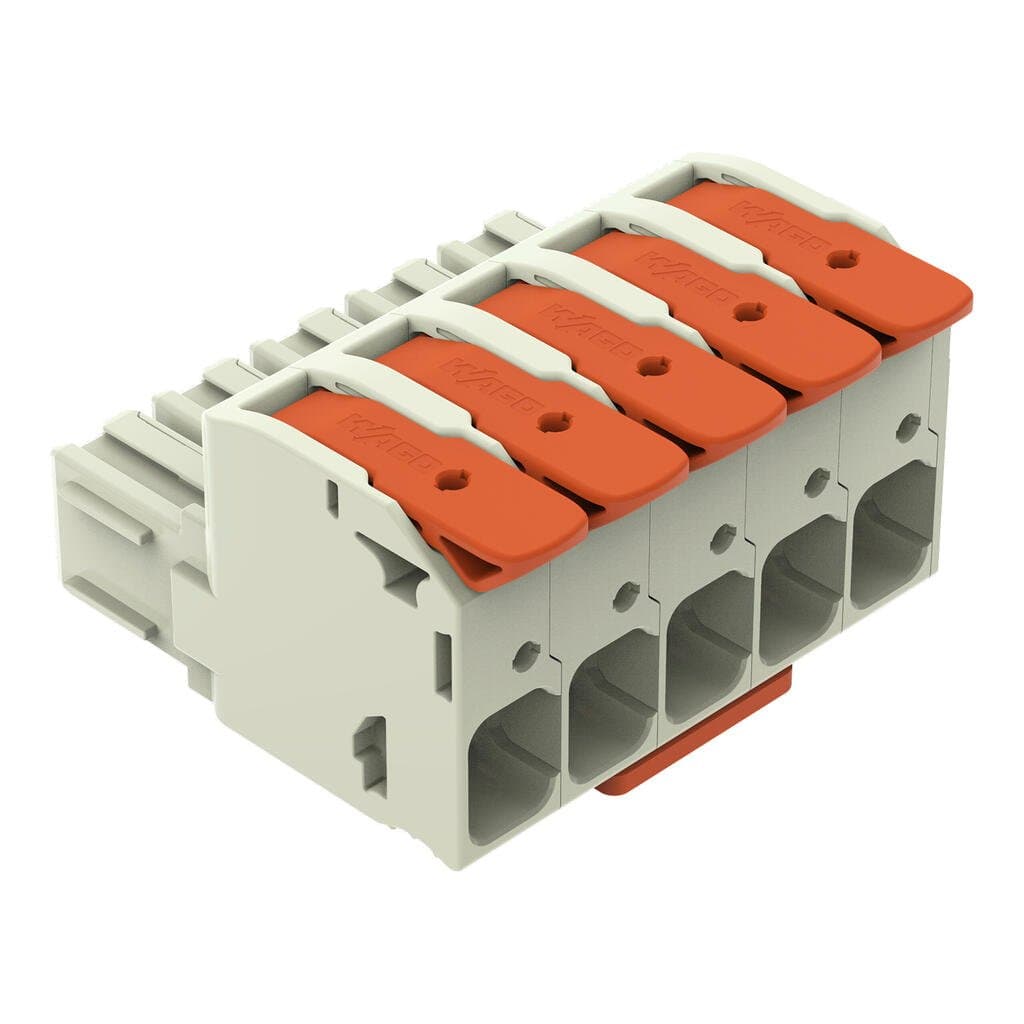

Product Model
832-1105/323-000
Selling Points
- 1Intuitive Tool-Free Lever Actuation: Easy to use without tools, ensuring quick and efficient connections.
- 2Universal Connection for All Conductor Types: Compatible with solid or ferruled conductors, making it versatile for different applications.
- 3100% Protected Against Mismating: Ensures secure connections by preventing incorrect mating, reducing errors and downtime.
- 4High-Rated Electrical Performance: Meets IEC/EN and UL standards with a rated current of 76A and nominal voltage of 1000V.
- 5Durable Construction: Made with chrome-nickel spring steel and silver-plated contacts for long-lasting performance in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Total number of potentials | 5 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 10.16?mm?/ 0.4?inches |
Width | 52.1?mm?/ 2.051?inches | Height | 36.1?mm?/ 1.42?inches |
Depth | 49.8?mm?/ 1.961?inches | Variable coding | Yes |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Female connector/socket |
Connector (connection type) | for conductor | Mismating protection | Yes |
Plugging without loss of pin spacing | No | Locking of plug-in connection | Center locking lever |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polybutylene terephthalate (PBT) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Material of the additional spring for socket contact | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Silver | Fire load | 1.205MJ |
Actuator color | orange | Weight of insulation material | 26.42g |
Weight | 69g | Limit temperature range | -60 … +120?°C |
Processing temperature | -35 … +60?°C | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143937191 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 1000V |
Rated impulse voltage (III / 3) | 8kV | Rated voltage (III/2) | 1000V |
Rated surge voltage (III/2) | 8kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 8kV | Rated current | 76A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 66A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 66A |
Rated voltage (UL 1977) | 600V | Rated current UL 1977 | 85A |
Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 66A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 66A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Lever |
Solid conductor | 0.75 … 16?mm2?/ 18 … 4?AWG | Fine-stranded conductor | 0.75 … 25?mm2?/ 18 … 4?AWG |
Fine-stranded conductor; with insulated ferrule | 0.75 … 16?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.75 … 16?mm2 |
Strip length | 18 … 20?mm?/ 0.71 … 0.79?inches | Number of poles | 5 |
Conductor entry direction to mating direction | 0° |
Specifications may be subject to change without notice
