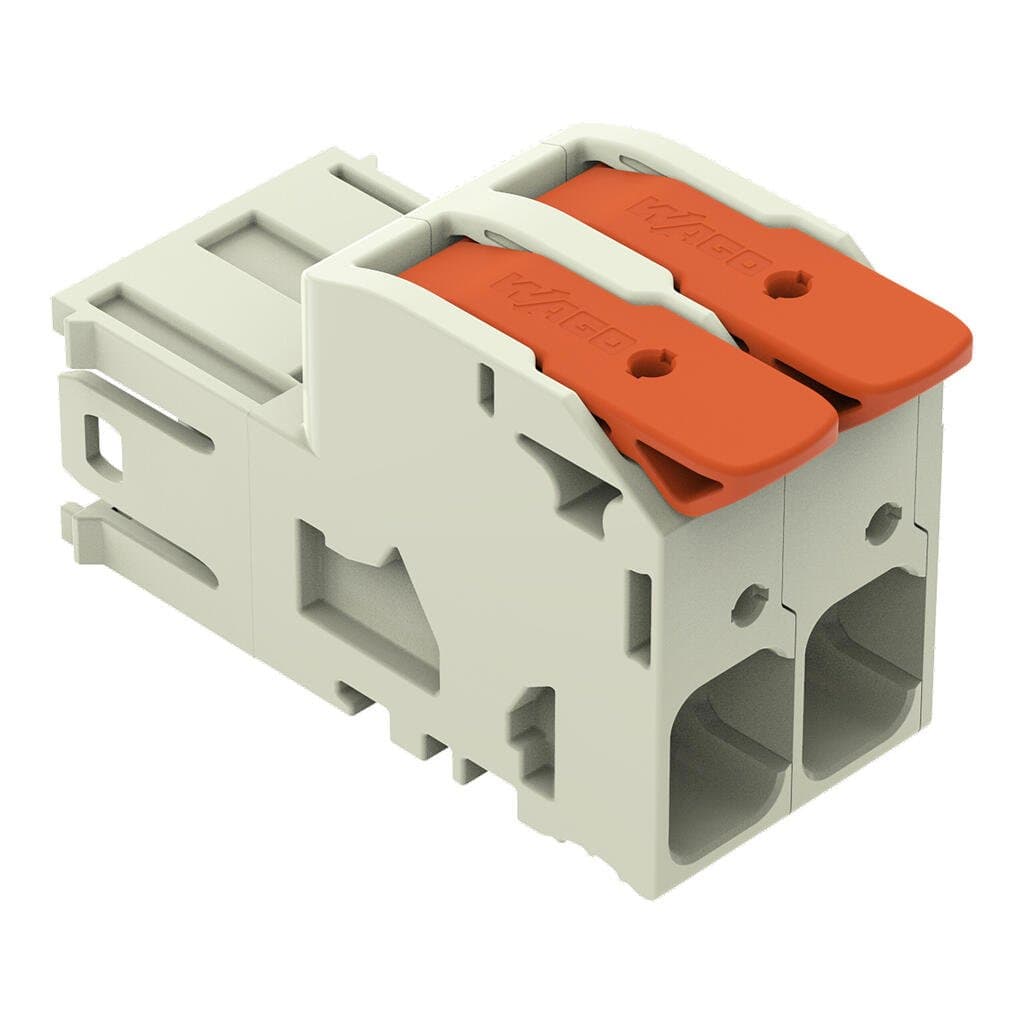

Product Model
832-1202
Selling Points
- 1Lever Actuation: Easy and intuitive tool-free operation.
- 2Push-in CAGE CLAMP: Secure connection for solid, ferruled, and rigid-stranded conductors.
- 3100% Mismating Protection: Ensures maximum safety with integrated protective contact caps.
- 4Universal Conductor Compatibility: Suitable for conductors ranging from 0.75 to 16 mm².
- 5High-Quality Construction: Durable and reliable connectivity solution for industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Clamping units | 2 | Total number of potentials | 2 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 10.16?mm?/ 0.4?inches | Width | 21.62?mm?/ 0.851?inches |
Height | 29.1?mm?/ 1.146?inches | Depth | 50.6?mm?/ 1.992?inches |
Variable coding | Yes | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for conductor |
Mismating protection | Yes | Plugging without loss of pin spacing | No |
Locking of plug-in connection | none | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polybutylene terephthalate (PBT) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Silver | Fire load | 0.461MJ |
Actuator color | orange | Weight of insulation material | 11.43g |
Weight | 25.4g | Limit temperature range | -60 … +120?°C |
Processing temperature | -35 … +60?°C | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 60?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4055143921329 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 1000V |
Rated impulse voltage (III / 3) | 8kV | Rated voltage (III/2) | 1000V |
Rated surge voltage (III/2) | 8kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 8kV | Rated current | 76A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 66A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 66A |
Rated voltage (UL 1977) | 600V | Rated current UL 1977 | 85A |
Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 66A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 66A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Lever |
Solid conductor | 0.75 … 16?mm2?/ 18 … 4?AWG | Fine-stranded conductor | 0.75 … 25?mm2?/ 18 … 4?AWG |
Fine-stranded conductor; with insulated ferrule | 0.75 … 16?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.75 … 16?mm2 |
Strip length | 18 … 20?mm?/ 0.71 … 0.79?inches | Number of poles | 2 |
Conductor entry direction to mating direction | 0° |
Specifications may be subject to change without notice
