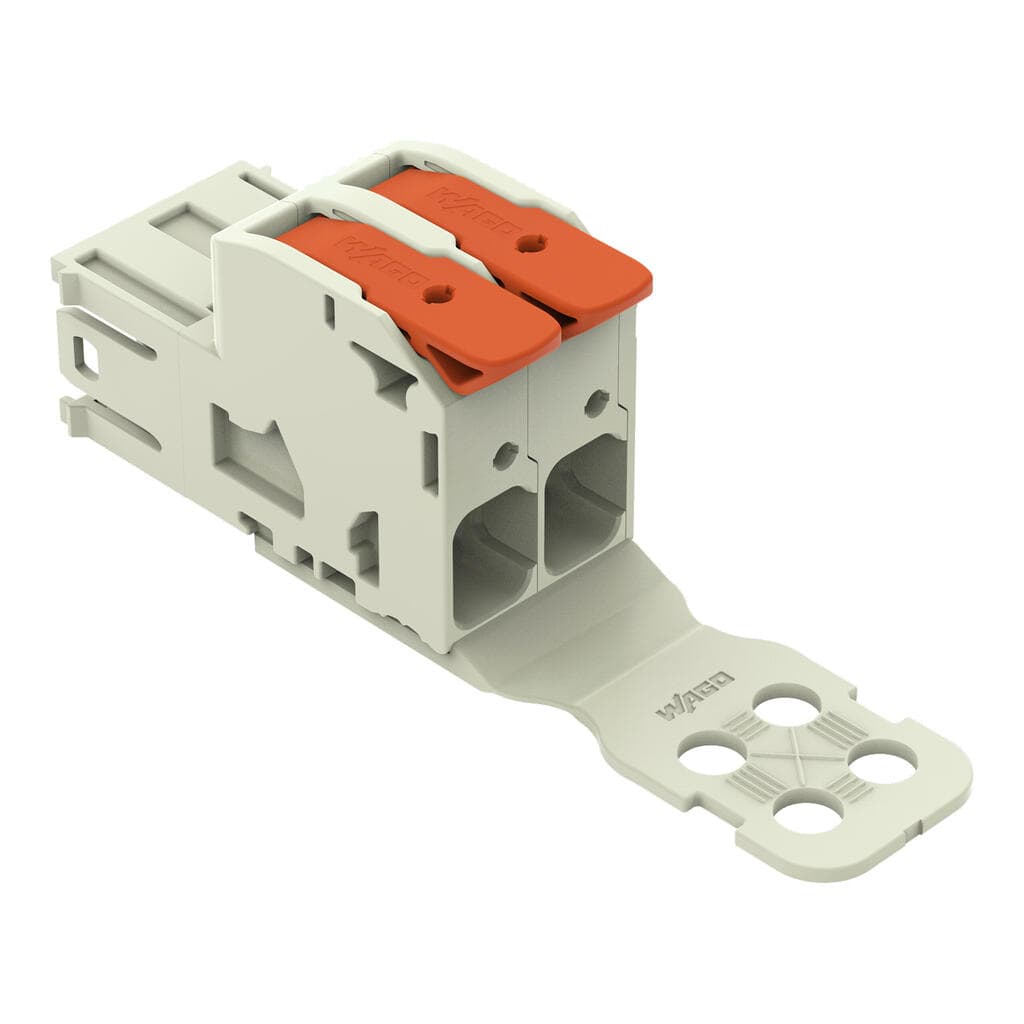

Product Model
832-1202/332-000
Selling Points
- 1100% Mismating Protection: Ensures secure and reliable connections.
- 2Lever Actuation: Intuitive and tool-free operation.
- 3Silver-Plated Contacts: Provides high conductivity and durability.
- 4Strain Relief Plate: Reduces stress on the connector, ensuring long-term reliability.
- 5UL and CSA Approvals: Meets stringent safety standards for industrial use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Clamping units | 2 | Total number of potentials | 2 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 10.16?mm?/ 0.4?inches | Width | 21.62?mm?/ 0.851?inches |
Height | 29.1?mm?/ 1.146?inches | Depth | 90.6?mm?/ 3.567?inches |
Variable coding | Yes | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for conductor |
Mismating protection | Yes | Plugging without loss of pin spacing | No |
Locking of plug-in connection | none | Strain relief | Strain relief plate |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polybutylene terephthalate (PBT) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Silver |
Fire load | 0.625MJ | Actuator color | orange |
Weight of insulation material | 11.43g | Weight | 27.9g |
Limit temperature range | -60 … +120?°C | Processing temperature | -35 … +60?°C |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 20?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143938242 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
Rated voltage (III/2) | 1000V | Rated surge voltage (III/2) | 8kV |
Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 8kV |
Rated current | 76A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 600V |
Rated current UL (Use Group B) | 66A | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 66A | Rated voltage (UL 1977) | 600V |
Rated current UL 1977 | 85A | Rated voltage CSA (Use Group B) | 600V |
Rated current CSA (Use Group B) | 66A | Rated voltage CSA (Use Group C) | 600V |
Rated current CSA (Use Group C) | 66A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Lever | Solid conductor | 0.75 … 16?mm2?/ 18 … 4?AWG |
Fine-stranded conductor | 0.75 … 25?mm2?/ 18 … 4?AWG | Fine-stranded conductor; with insulated ferrule | 0.75 … 16?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.75 … 16?mm2 | Strip length | 18 … 20?mm?/ 0.71 … 0.79?inches |
Number of poles | 2 | Conductor entry direction to mating direction | 0° |
Specifications may be subject to change without notice
