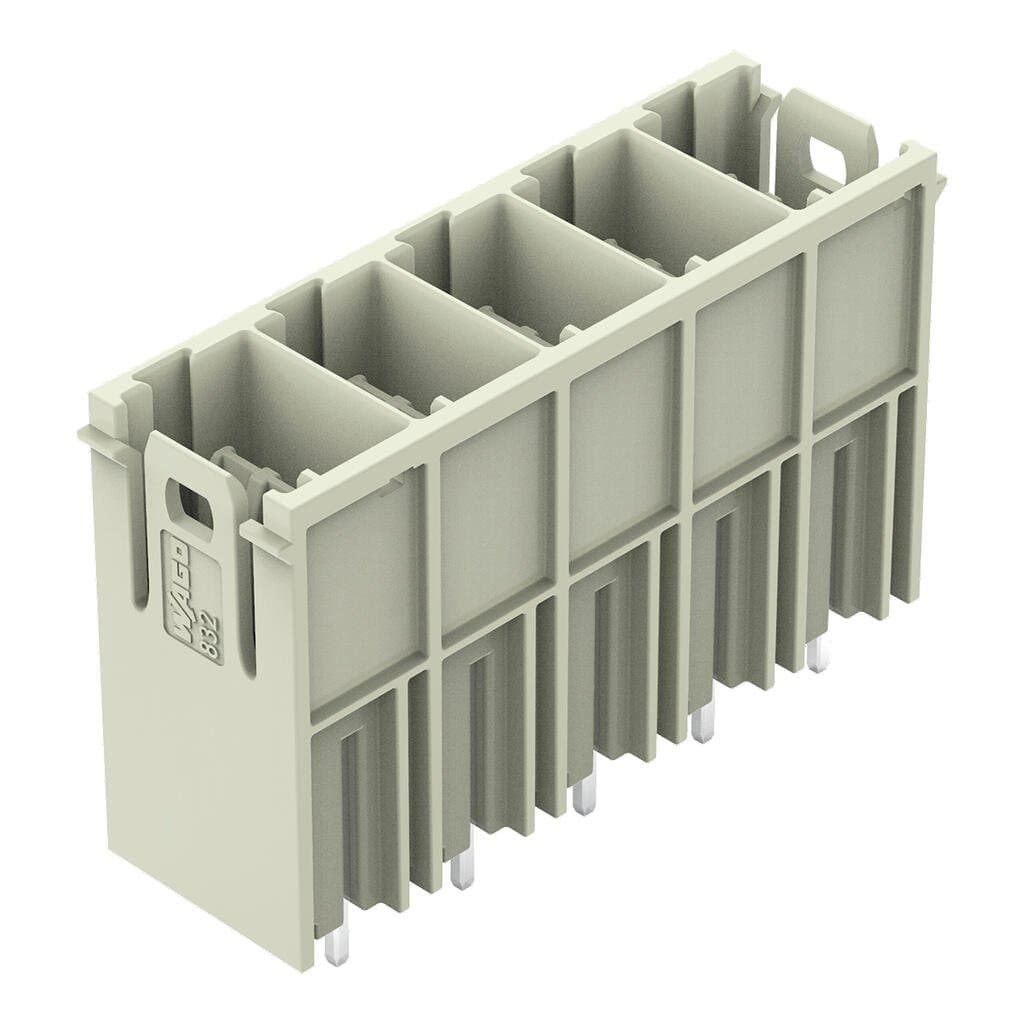

Product Model
832-3605
Selling Points
- 1Ensures safe and reliable connections.
- 2Provides high conductivity and durability.
- 3Suitable for various PCB wiring needs.
- 4Easy to use and space-efficient design.
- 5Aesthetically pleasing and easy to identify.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Total number of potentials | 5 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 10.16?mm?/ 0.4?inches |
Width | 52.1?mm?/ 2.051?inches | Height | 36?mm?/ 1.417?inches |
Height from the surface | 32?mm?/ 1.26?inches | Depth | 16.5?mm?/ 0.65?inches |
Solder pin length | 4mm | Solder pin dimensions | 1.2 x 1.2?mm |
Drilled hole diameter with tolerance | 1.7(+0.1)mm | Variable coding | Yes |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Male header |
Connector (connection type) | for PCB | Mismating protection | Yes |
Plugging without loss of pin spacing | No | Mating direction to the PCB | 90° |
Locking of plug-in connection | none | PCB contact | THT |
Solder pin arrangement | over the entire male connector (in-line) | Number of solder pins per potential | 3 |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polybutylene terephthalate (PBT) |
Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
Contact plating | Silver | Fire load | 0.452MJ |
Weight | 26.4g | Limit temperature range | -60 … +120?°C |
Processing temperature | -35 … +60?°C | eCl@ss 10.0 | 27-44-04-02 |
eCl@ss 9.0 | 27-44-04-02 | ETIM 9.0 | EC002637 |
ETIM 8.0 | EC002637 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4055143735391 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated voltage (III/2) | 1000V |
Rated surge voltage (III/2) | 8kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 8kV | Rated current | 76A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 66A |
Rated voltage UL (Use Group C) | 300V | Rated current UL (Use Group C) | 66A |
Rated voltage UL (Use Group D) | 600V | Rated current UL (Use Group D) | 5A |
Rated voltage (UL 1977) | 600V | Rated current UL 1977 | 85A |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 66A |
Rated voltage CSA (Use Group C) | 300V | Rated current CSA (Use Group C) | 66A |
Rated voltage CSA (Use Group D) | 600V | Rated current CSA (Use Group D) | 5A |
Number of poles | 5 |
Specifications may be subject to change without notice
