Product Model

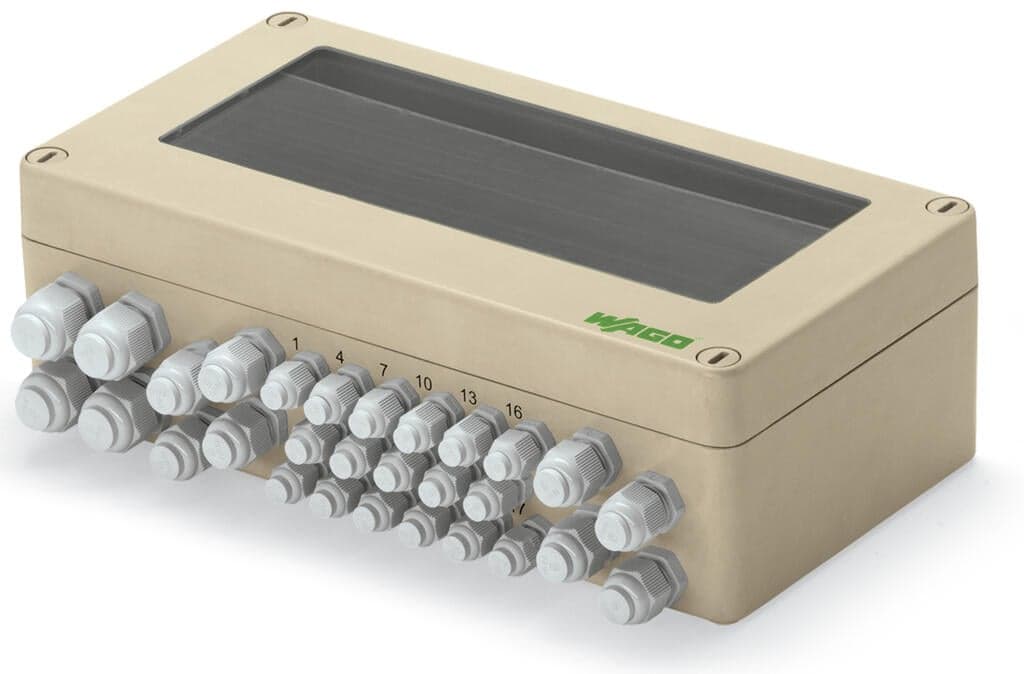

850-836
Selling Points
- 1Robust IP65 Protection: Designed to withstand harsh environments with IP65 rating.
- 2Versatile Cable Grip: Accommodates 4 x M20, 8 x M16, and 17 x M12 cable grip options.
- 3Compact Dimensions: Measures 324 x 100 x 164 mm for efficient space utilization.
- 4Durable Polyester Material: Constructed from high-quality polyester (RAL 7032) for long-lasting performance.
- 5Easy Integration: Compatible with various industrial systems for seamless operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of I/O modules | 18 | Width | 324?mm?/ 12.756?inches |
Height | 100?mm?/ 3.937?inches | Depth | 164?mm?/ 6.457?inches |
Panel cutout (W x H) | (302 x 142) mm | Cable bushings (number) | 17 |
Cable bushings (type) | M12 (3 … 6 mm cable diameter) | Cable bushings (number) (2) | 8 |
Cable bushings (type) (2) | M16 (5 … 9 mm cable diameter) | Cable bushings (number) (3) | 4 |
Cable bushings (type) (3) | M20 (9 … 13 mm cable diameter) | Weight | 2090.9g |
Protection type | IP65 | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-14-24-18 | eCl@ss 9.0 | 27-14-24-18 |
ETIM 9.0 | EC000262 | ETIM 8.0 | EC000262 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332819633 | Customs tariff number | 8536908530 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
