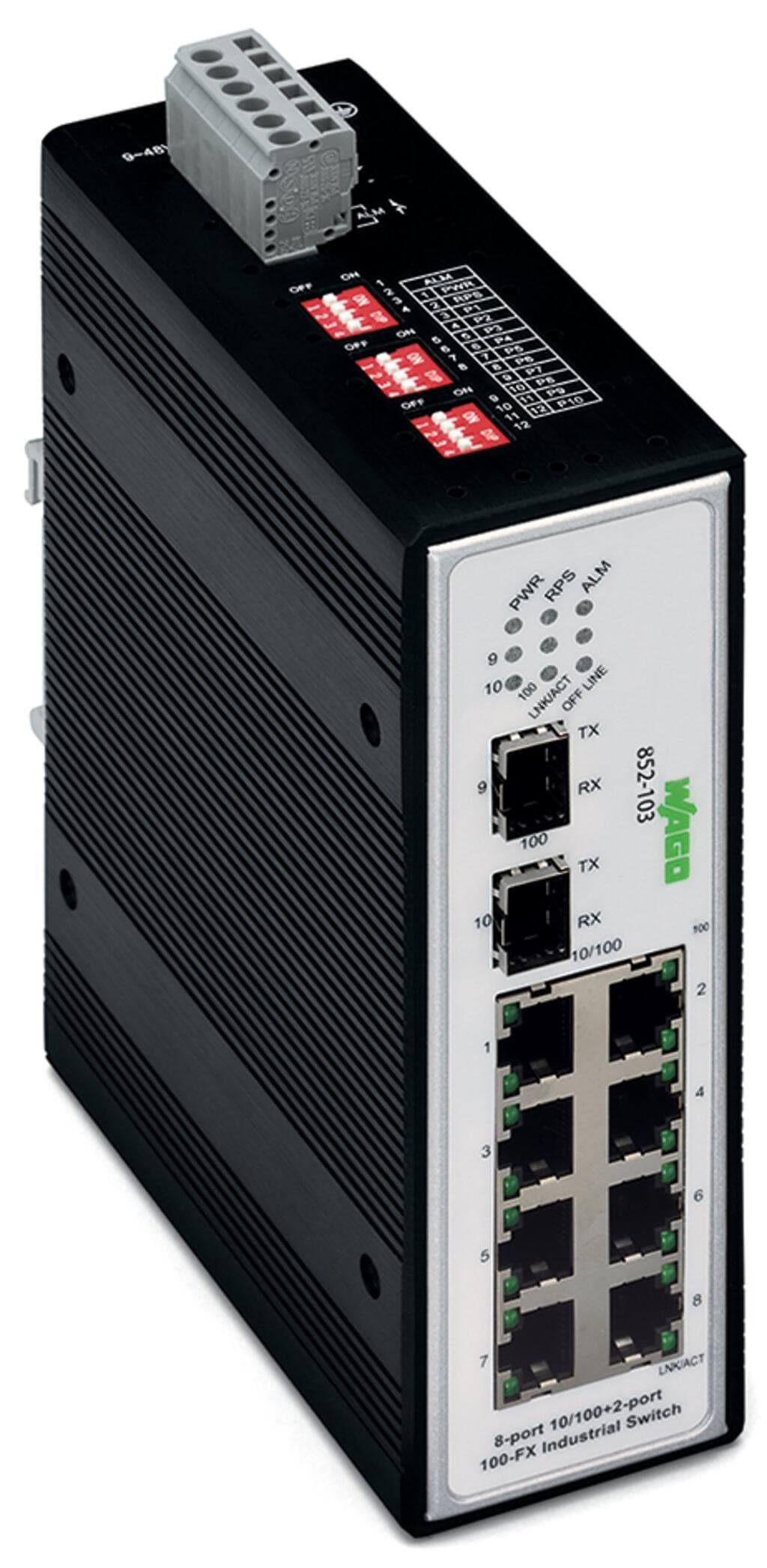

Product Model
852-103/040-000
Selling Points
- 18-Port 100Base-TX Ethernet Switch: Ideal for high-speed data transmission in industrial settings.
- 22 Slots 100Base-FX: Supports fiber optic connections for extended reach and reliability.
- 3Extended Temperature Range: Operates effectively in extreme temperatures, ensuring continuous performance.
- 4Durable Black Housing: Built with a robust black housing for long-lasting durability.
- 5Industrial-Grade Design: Designed to withstand harsh industrial environments with minimal maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Switching mode | Store-and-forward; non-blocking | Number of 100 Mbps ports | 8 |
Number of 100 Mbit/s ports SFP | 2 | Communication standards | IEEE 802.3 10BASE-T |
Redundancy function | Redundant DC power supply | Configuration options | DIP switch for signal contact |
Diagnostics | Signal contact | MAC table (size) | 2000 addresses |
Jumbo frame size | 1536.Byte | Supply voltage | 9 … 48 VDC; Cable length: < 3 m |
Power consumption without PoE | 6.08W | Power consumption (typ.) (24 V) | 5.76W |
ESD (contact/air discharge) | 8 KV / 15 KV | Transmission rate | Copper cable:?10/100?Mbit/s;?Fiber optic:100?Mbit/s |
Transmission medium (communication/fieldbus) | Copper cable:?Cat. 5 or higher, 100 m maximum cable length;?Fiber optic:?FX Multi-Mode, LX Single-Mode | Optical fiber type | Single-Mode and Multi-Mode |
Packet throughput | 148,800pkt/s | Control Elements | 12 x DIP switch: Alarm function power supplies and ports 1 … 10 |
Indicators | Device: LED (PWR, RPS) green: Power supply (primary), redundant power supply (secondary); LED (ALM) red: Alarm; LED (LNK/ACT, 100) green, LED (OFFLINE) red: Status fiber optic ports; per port: LED (100, LNK/ACT) green: Status 100 Mbps, LNK/ACT ports 1 … 8 | Connection technology: communication/fieldbus | Copper cable:?8 x RJ-45;?Fiber optic:?2 x SFP slots (e.g., with SFP module and LC fiber-optic connector) |
Connection technology: supply | 1 x Built-in male connector: 231-436/001-000; included female connector (MCSConnectors): 231-106/026-000 | Width | 50?mm?/ 1.969?inches |
Height | 162?mm?/ 6.378?inches | Depth | 120?mm?/ 4.724?inches |
Weight | 887g | Color | black |
Housing material | Aluminum | Conformity marking | CE |
Ambient temperature (operation) | -40 … +70 °C (UL max. +60 °C) | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP30 | Relative humidity (without condensation) | 95% |
Mounting type | DIN-35 rail | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-4 | eCl@ss 10.0 | 19-17-01-30 |
eCl@ss 9.0 | 19-17-01-06 | ETIM 9.0 | EC000734 |
ETIM 8.0 | EC000734 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | TW | GTIN | 4050821157663 |
Customs tariff number | 8517620090 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
