Product Model

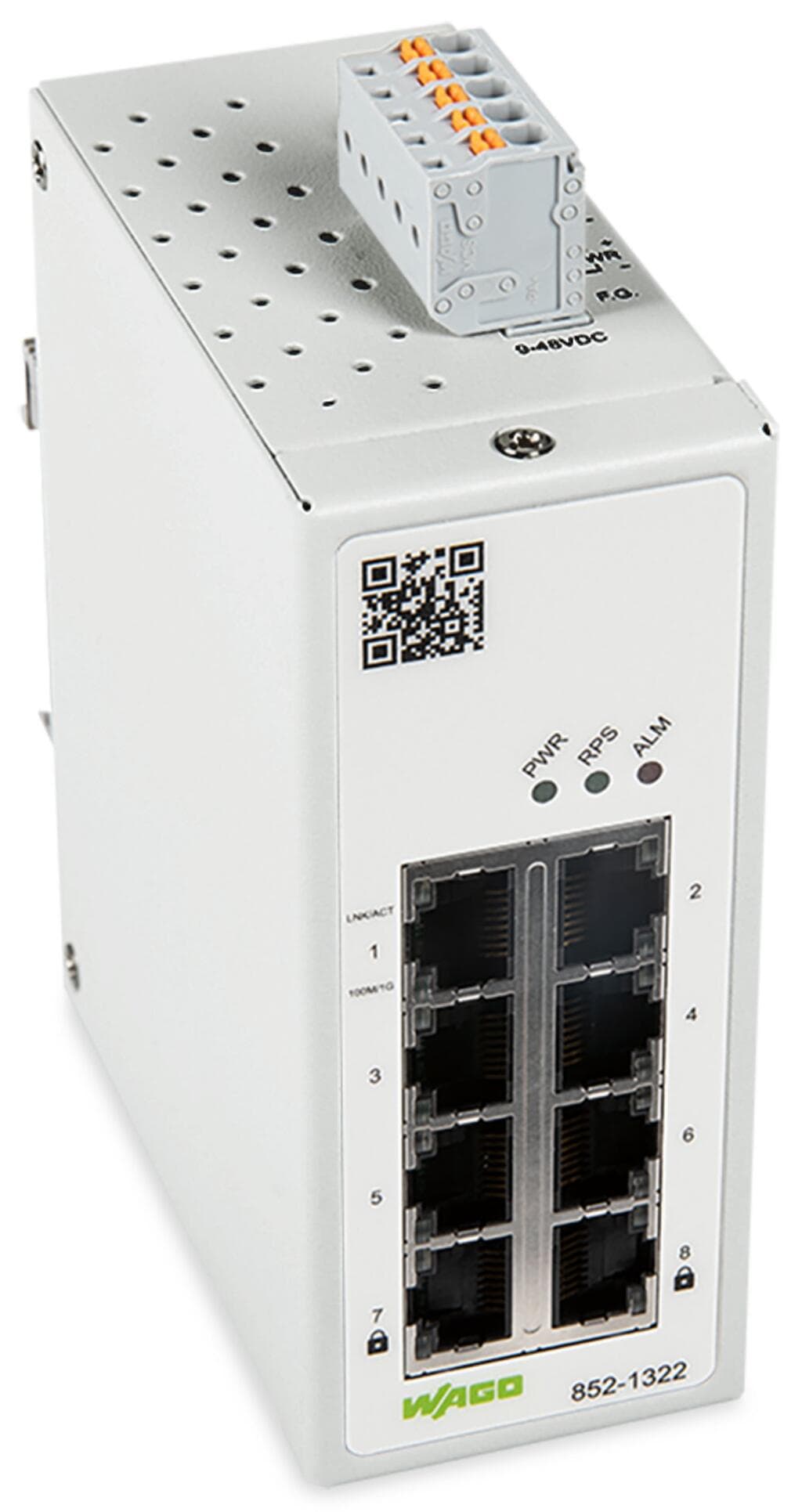

852-1322
Selling Points
- 1Configurable Ethernet Switch: Eight 10/100/1000BASE-T ports for versatile connectivity.
- 2MAC Security: Data encryption compliant with IEEE802.1AE for secure communication.
- 3Redundant Power Supply: Ensures continuous operation with a DC power supply range of 9-48 VDC.
- 4SNMPv3 Support: Web-based and SNMPv3 configuration for easy management and diagnostics.
- 5Durable Design: Rugged housing with IP30 rating, suitable for harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Switching mode | Store-and-forward; non-blocking | Number of 1 Gb/s ports | 8 |
Communication standards | IEEE 802.3 10BASE-T | Redundancy function | Redundant DC power supply |
Configuration options | Web-based (HTTP(S)) | Diagnostics | Modbus TCP; Port status; Syslog; SNMP traps |
MAC table (size) | 16000 addresses | Supply voltage | 9 … 48?VDC |
Power consumption without PoE | 5.8W | ESD (contact/air discharge) | 8 KV / 15 KV |
Transmission rate | Copper cable:?10/1000?Mbit/s | Indicators | Device: LED (PWR, RPS) green: Power supply (primary), redundant power supply (secondary); LED (ALM) red: Alarm; per port: LED (100M/1G, LNK/ACT) green: Status 100 Mbit/s/1 Gbit/s, LNK/ACT ports 1 … 8 |
Connection technology: communication/fieldbus | Copper cable:?8 x RJ-45 | Connection technology: supply | 1 x Built-in male connector: 231-435/001-000; included female connector (MCSConnectors): 2231-105/026-000 |
Width | 45.3?mm?/ 1.783?inches | Height | 110?mm?/ 4.331?inches |
Depth | 92?mm?/ 3.622?inches | Weight | 628g |
Ambient temperature (operation) | -20 … +70 °C | Ambient temperature (storage) | -40 … +80 °C |
Protection type | IP30 | Relative humidity (without condensation) | 95% |
Mounting type | DIN-35 rail | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 55011, 55024, 55032 (Class A + B), 61000-6-3, -4 | ETIM 9.0 | EC000734 |
ETIM 8.0 | EC000734 | ECCN | 5A992.C |
PU (SPU) | 1?pcs | Packaging type | Box |
Country of origin | TW | GTIN | 4055143978163 |
Customs tariff number | 8517620090 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
