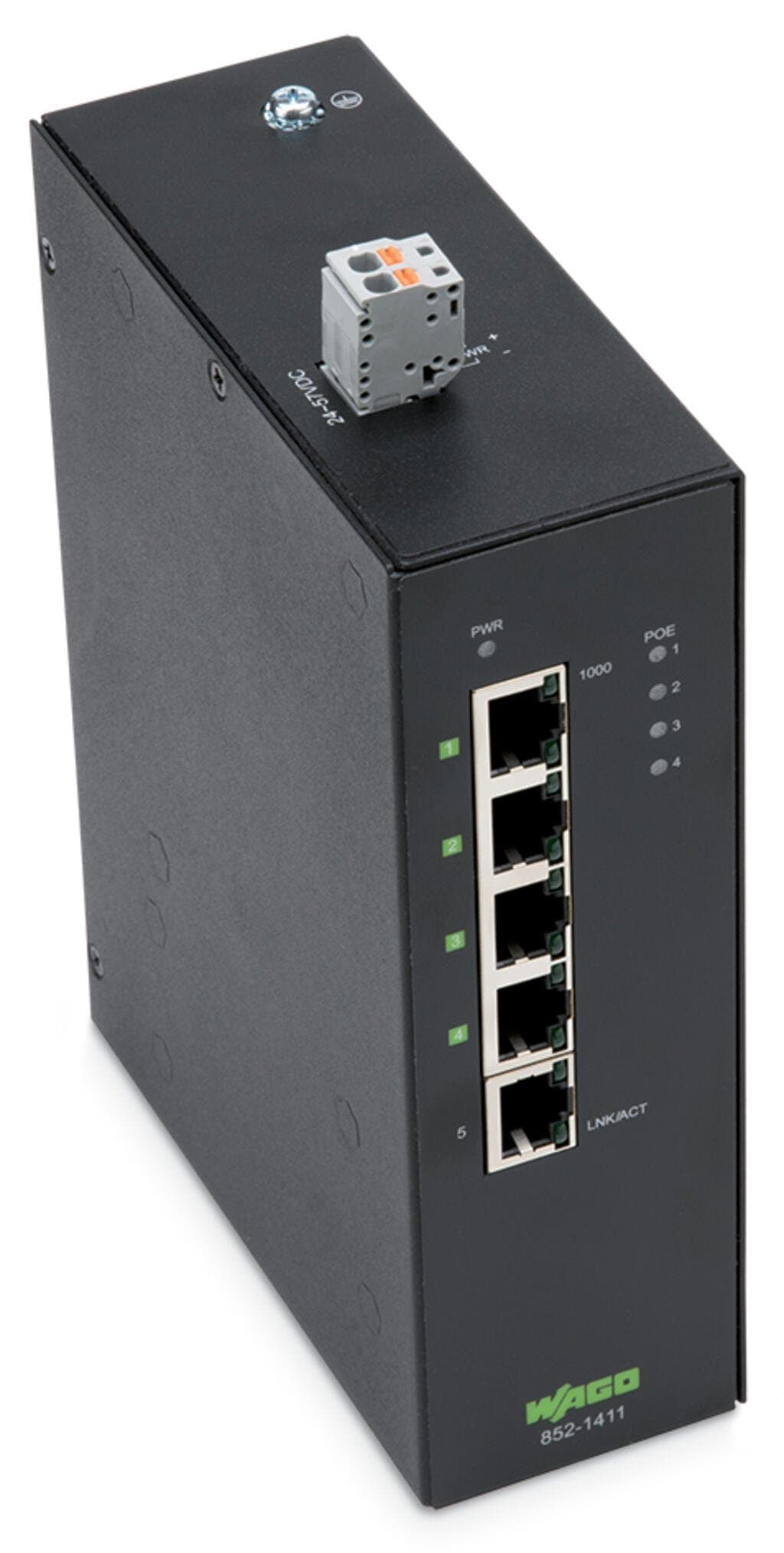

Product Model
852-1411
Selling Points
- 1Industrial-grade reliability: Built for harsh environments with IP30 protection.
- 2High-speed connectivity: Supports 10/100/1000 Mbps speeds on 5 RJ45 ports.
- 3Power over Ethernet (PoE): Four PoE+ ports for efficient power distribution.
- 4DIN rail mounting: Easy installation on DIN rail for space-saving solutions.
- 5Extended temperature range: Operates from -40°C to +70°C for versatile use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of 1 Gb/s ports | 5 | Communication standards | IEEE 802.3 10BASE-T |
MAC table (size) | 8000 addresses | Jumbo frame size | 10000.Byte |
Supply voltage | 24 … 57?VDC | Power consumption without PoE | 13W |
Full load power consumption | 133 W with 4 PoE | Transmission rate | Copper cable:?10/1000?Mbit/s |
Transmission medium (communication/fieldbus) | Copper cable:?Cat. 5e or higher, 100 m maximum cable length | Topology | Star |
Indicators | Device: LED (PWR) green: Power supply; LED (PoE 1 … 4) green: Power over Ethernet; per port: LED (1000, LNK/ACT) green: Status 1000 Mbit/s, LNK/ACT ports 1 … 5 | Connection technology: communication/fieldbus | Copper cable:?5 x RJ-45 |
Connection technology: supply | 1 x Built-in male connector: 231-432/001-000; included female connector (MCSConnectors): 2231-102/026-000 | Width | 50?mm?/ 1.969?inches |
Height | 160?mm?/ 6.299?inches | Depth | 120?mm?/ 4.724?inches |
Weight | 520g | Color | black |
Housing material | Sheet steel | Conformity marking | CE |
Ambient temperature (operation) | -40 … +70 °C (per CE; ?10 … +60 °C per UL 61010) | Ambient temperature (storage) | -40 … +80 °C |
Protection type | IP30 | Relative humidity (without condensation) | 95% |
Mounting type | DIN-35 rail | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-4 | Fire load | 0.12MJ |
eCl@ss 10.0 | 19-17-01-30 | eCl@ss 9.0 | 19-17-01-06 |
ETIM 9.0 | EC000734 | ETIM 8.0 | EC000734 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | TW |
GTIN | 4055143727167 | Customs tariff number | 8517620090 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
