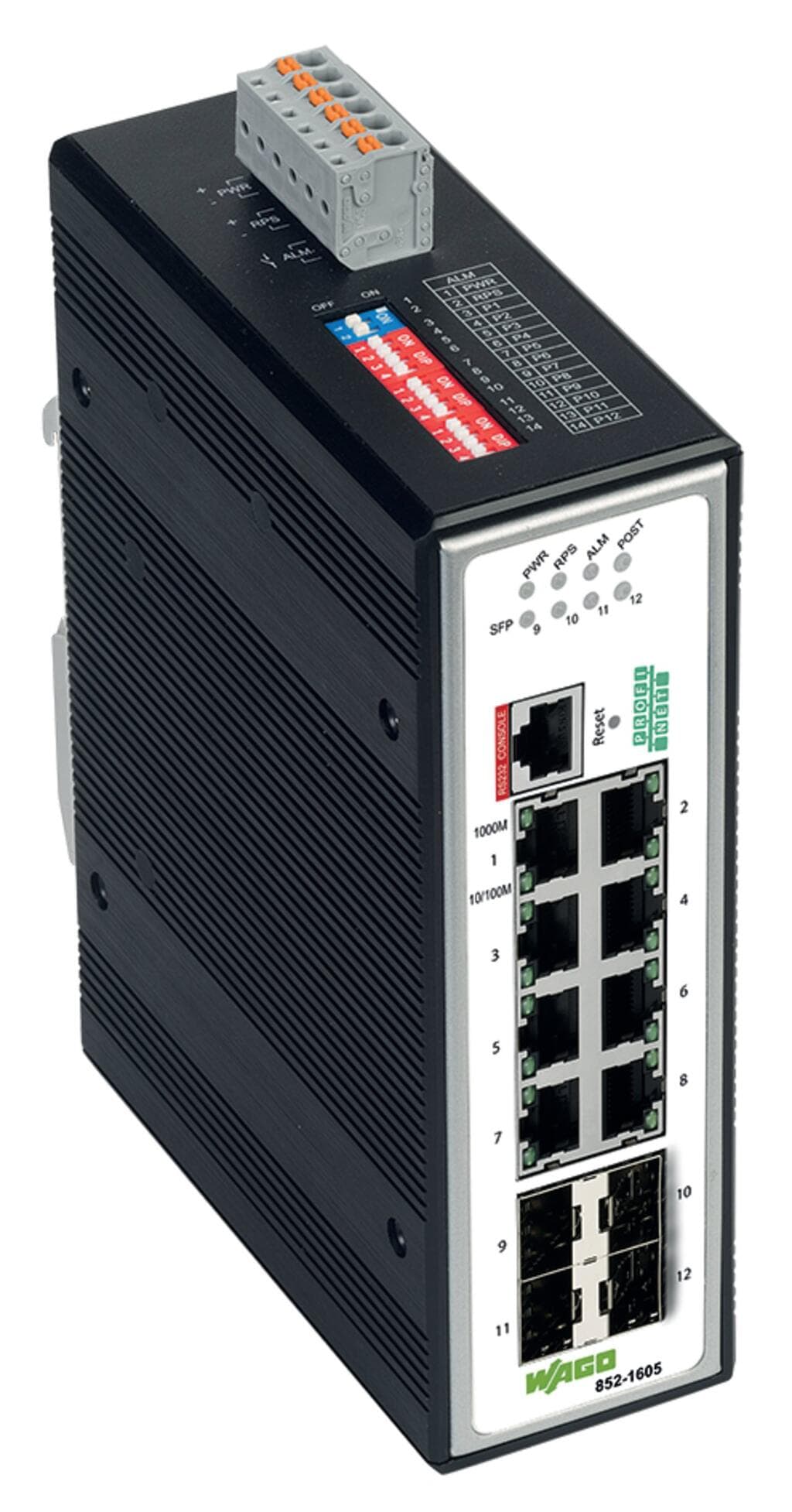

Product Model
852-1605
Selling Points
- 1Configurable Ethernet Switch: Equipped with eight 10/100/1000Base-T copper ports and four SFP-1000Base-SX/LX slots.
- 2Redundant Power Supply: Ensures continuous operation with a DC power supply range of 12 to 60 VDC.
- 3DIN Rail Mounting: Designed for easy installation on DIN rail, ideal for industrial environments.
- 4PROFINET Certified: Supports PROFINET Netload Class II and integrates seamlessly into PROFINET automation systems.
- 5Robust Environmental Specifications: Operates in temperatures from -40°C to 70°C and has an IP30 protection rating.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Switching mode | Store-and-forward; non-blocking | Number of 1 Gb/s ports | 8 |
Number of 100 Mbps ports | 8 | Number of 1 Gb/s ports SFP | 4 |
Communication standards | IEEE 802.3 10BASE-T | Redundancy function | Redundant DC power supply; STP; RSTP; MSTP; Media redundancy protocol as manager or client |
Configuration options | DIP switch for signal contact | Diagnostics | Signal contact; Port status; Port statistics; Port load; Traffic monitor; SFP information; Syslog; SNMP traps; PN diagnostics (cyclic and acyclic) |
MAC table (size) | 16000 addresses | Jumbo frame size | 10000.Byte |
Supply voltage | 12 … 60?VDC | Power consumption without PoE | 18W |
ESD (contact/air discharge) | 8 KV / 15 KV | Transmission rate | Copper cable:?10/1000?Mbit/s;?Fiber optic:1000?Mbit/s |
VLAN | Port-based and tag-based (4k VIDs) | Connection technology: communication/fieldbus | Copper cable:?8 x RJ-45;?Fiber optic:?4 x SFP slots (e.g., with SFP module and LC fiber-optic connector) |
Connection technology: supply | 1 x Built-in male connector: 231-436/001-000; included female connector (MCSConnectors): 2231-106/026-000 | Width | 50?mm?/ 1.969?inches |
Height | 162?mm?/ 6.378?inches | Depth | 120?mm?/ 4.724?inches |
Weight | 945g | Color | black metallic |
Ambient temperature (operation) | -40 … +70 °C | Ambient temperature (storage) | -40 … +80 °C |
Protection type | IP30 | Relative humidity (without condensation) | 95% |
Mounting type | DIN-35 rail | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-4 | Fire load | 0.302MJ |
ETIM 9.0 | EC000734 | ETIM 8.0 | EC000734 |
ECCN | 5A992.C | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | TW |
GTIN | 4055143918701 | Customs tariff number | 8517620090 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
