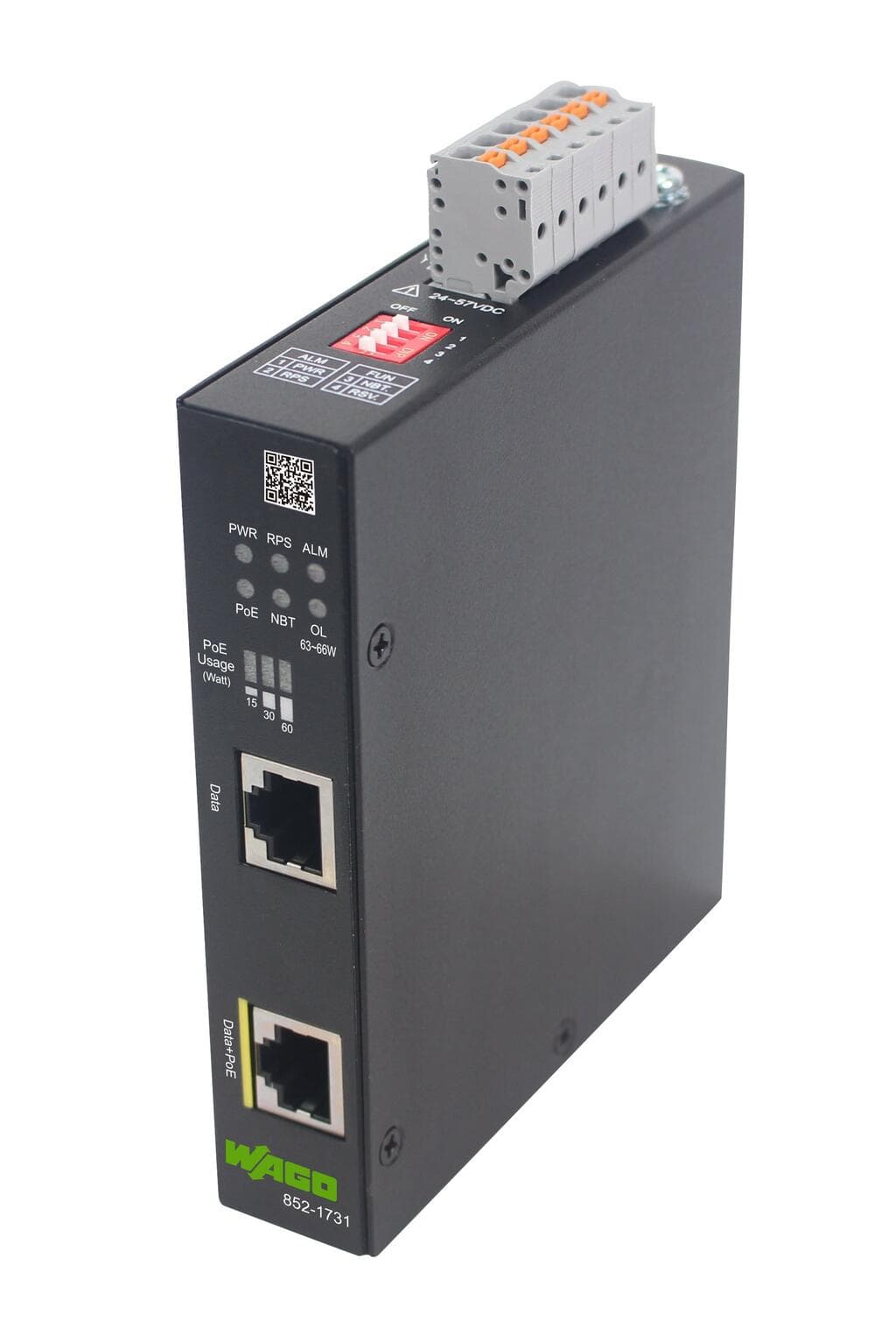

Product Model
852-1731
Selling Points
- 1High-Power Delivery: Supports up to 60 watts of power over Ethernet (PoE++).
- 2Versatile Connectivity: Compatible with 10/100/1000 BASE networks.
- 3Industrial-Grade Design: Built to withstand harsh industrial conditions.
- 4Easy Installation: Simple integration with existing network infrastructure.
- 5Reliable Performance: Ensures stable and consistent power supply for devices.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of 1 Gb/s ports | 2 | Communication standards | IEEE 802.3 10BASE-T |
Supply voltage | 24 … 57 VDC | Power consumption without PoE | 90W |
Transmission rate | Copper cable: 100/1000 Mbit/s | Transmission medium (communication/fieldbus) | Copper cable: Cat. 5e or 6a , 100 m maximum cable length |
Indicators | Device: LED (PWR, RPS, PoE, NBT) green: Supply voltage (primary), redundant supply voltage (secondary), Power over Ethernet, mode; LED (ALM, OL 63-66 W) red: Alarm, Overload; LED (PoE Usage (Watt)) green: 15, 30, 60 Watt; per port: LED green: Status 1000 Mbit/s, LNK/ACT port | Connection technology: communication/fieldbus | Copper cable: 2 x RJ-45 |
Connection technology: supply | 1 x Built-in male connector: 231-436/001-000; included female connector (MCSConnectors): 2231-106/026-000 | Width | 25 mm / 0.98 inches |
Height | 116 mm / 4.57 inches | Depth | 100 mm / 3.93 inches |
Weight | 242.8g | Housing material | Aluminum |
Conformity marking | CE | Ambient temperature (operation) | -40 … +75 °C |
Ambient temperature (storage) | -40 … +80 °C | Protection type | IP30 |
Relative humidity (without condensation) | 95% | Mounting type | DIN-35 rail |
Vibration resistance | per IEC 60068-2-6 | Shock resistance | per IEC 60068-2-27 |
EMC immunity to interference | Per EN IEC 61000-6-2 | EMC emission of interference | Per EN IEC 61000-6-4 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | TW |
GTIN | 4066966512014 | Customs tariff number | 85176200000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
