Product Model

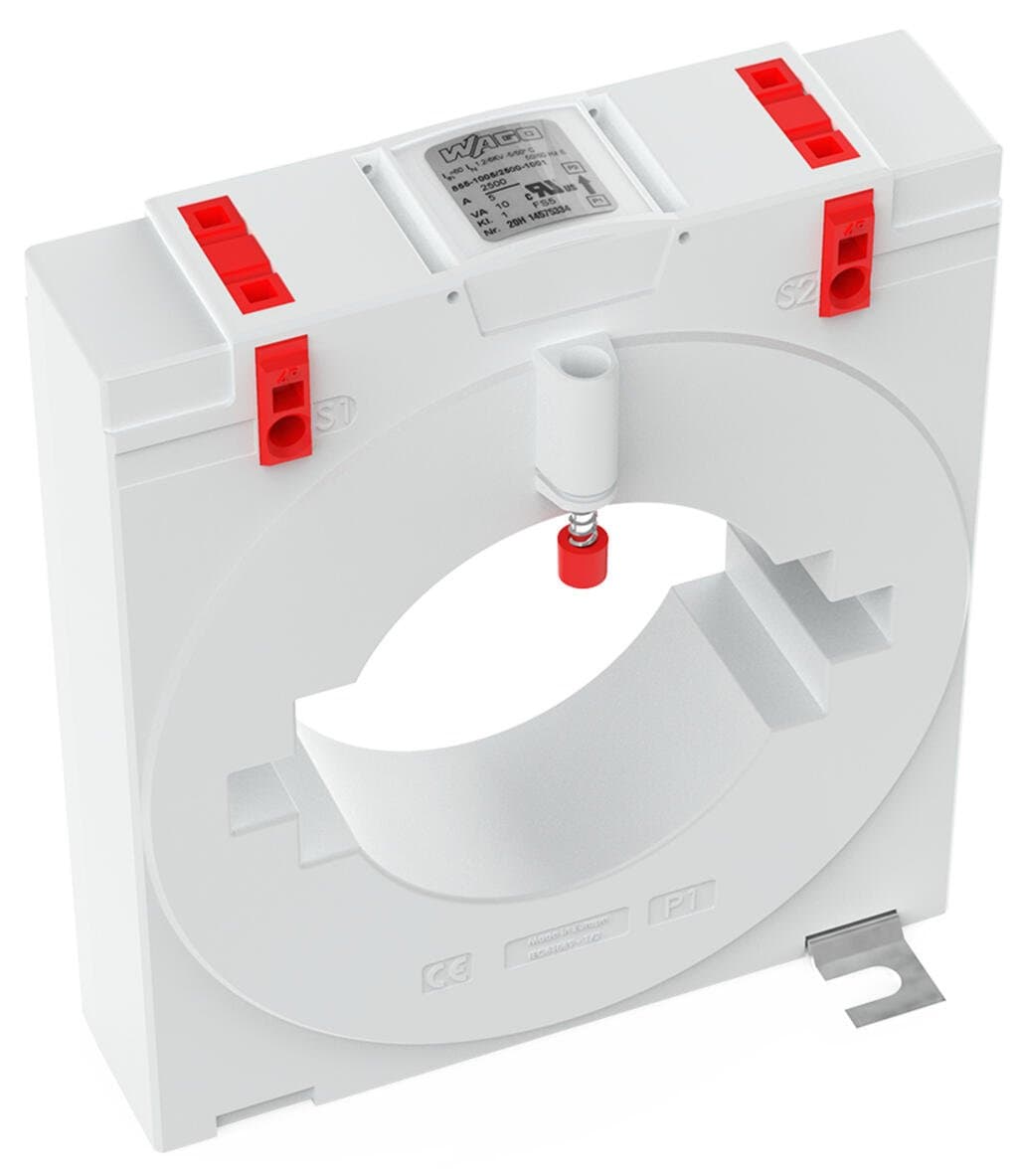

855-1001/2500-1001
Selling Points
- 1High Accuracy Class 1 (Cl.1): Ensures precise measurements in AC network applications.
- 2Durable CAGE CLAMP Connections: Provides secure and reliable connections with high mechanical retention forces.
- 3Versatile Mounting Options: Designed for surface or cable mounting with a width of 130mm, offering flexibility in installation.
- 4Operates in Wide Temperature Range: Functions within an ambient temperature range of -5°C to +50°C, ensuring reliable operation in various environments.
- 5Compliant with International Standards: Meets CE, EN 61869-1, EN 61869-2, and UL E356480 standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Test voltage | AC 6?kV;?50?Hz;?1?min | Highest voltage for equipment U<sub>m</sub> | AC 1.2?kVrms |
Feedthrough for measurement conductor | ? 70 mm | Width | 130?mm?/ 5.118?inches |
Height | 147.45?mm?/ 5.805?inches | Depth | 52?mm?/ 2.047?inches |
Mounting type | Closed current transformer | Insulation class | E |
Weight | 396g | Ambient temperature (operation) | -5 … +50 °C |
Ambient temperature (storage) | -25 … +70 °C | Operating altitude (max.) | 1000m |
Conformity marking | CE | Standards/specifications | EN 61869-1 |
eCl@ss 10.0 | 27-21-09-02 | eCl@ss 9.0 | 27-21-09-02 |
ETIM 9.0 | EC002048 | ETIM 8.0 | EC002048 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 85043129900 | RoHS Compliance Status | Compliant,No Exemption |
Measured variable | Current | Rated continuous thermal current I<sub>cth</sub> | 1.2 x IN |
Rated short-time thermal current I<sub>th</sub> | 60 x IN/ 1 s (max. 100 kA / 1 s) | Overcurrent limiting factor | FS5 / FS10 (type dependent; see type plate inscription) |
Rated frequency | 50 … 60?Hz | Primary rated current | 2500?A |
Secondary rated current | 1A | Rated power S<sub>r</sub> | 10VA |
Accuracy class | 1 | Connection technology | CAGE CLAMP? |
Strip length | 9 … 10 mm / 0.35 … 0.39 inches | Solid conductor | 0.08 … 4 mm2 / 28 … 12 AWG |
Fine-stranded conductor | 0.08 … 4 mm2 / 28 … 12 AWG |
Specifications may be subject to change without notice
