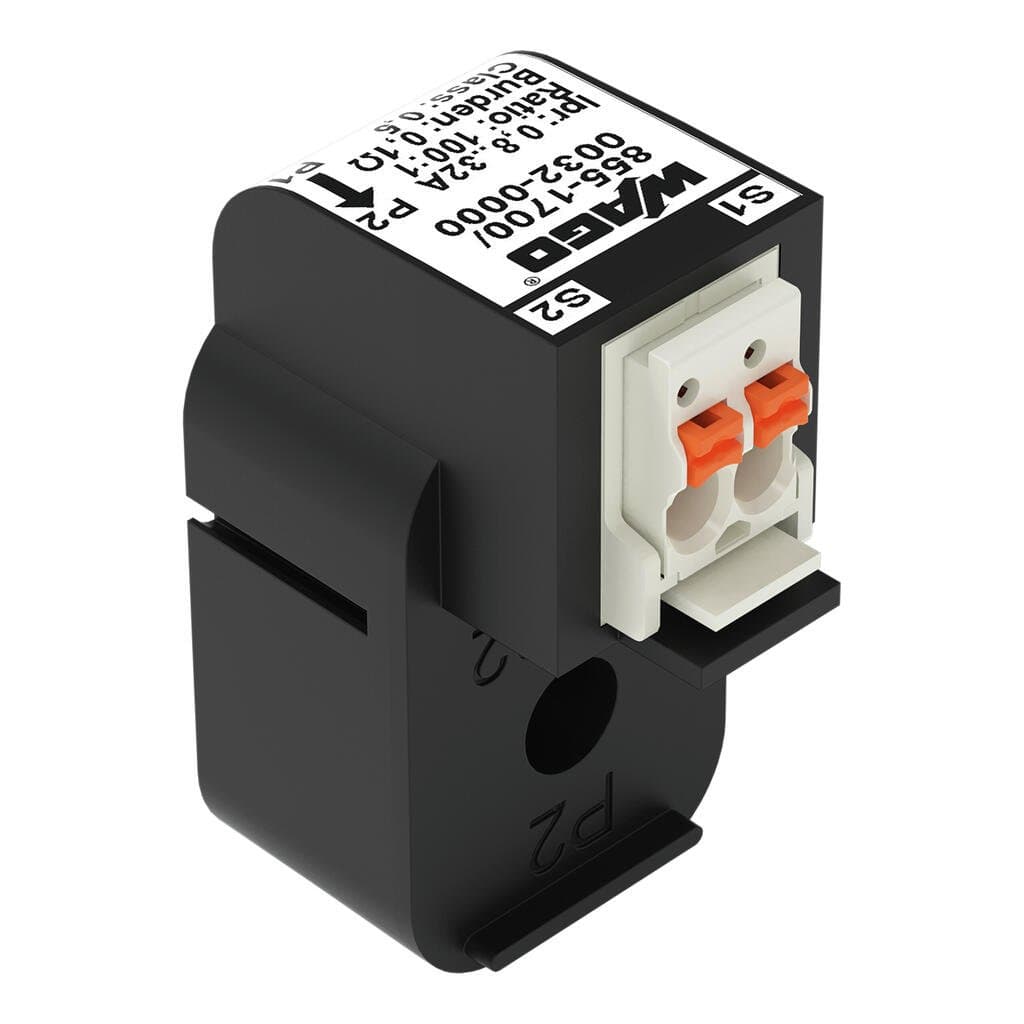

Product Model
855-1700/032-000
Selling Points
- 1High Accuracy Class 0.5: Ensures precise current measurement with an accuracy class of 0.5.
- 2Easy Installation: Features push-in CAGE CLAMP connections for quick and secure mounting.
- 3Compatibility with WAGO I/O System: Exclusive to the WAGO I/O System, designed to work seamlessly with WAGO's 750 Series modules.
- 4Low-Power Output Design with picoMAX: All-new design with low-power output for efficient operation.
- 5Operates in Wide Temperature Range: Functions between -10°C to +55°C, making it suitable for various industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The 855-1700/032-000 Plug-In Current Transformer is exclusive to the WAGO I/O System and shall only be used with WAGO's 750 Series 3-Phase Power Measurement Modules. | Protection type | IP20 |
Test voltage | AC 3?kV;?50?Hz;?1?min | Highest voltage for equipment U<sub>m</sub> | AC 720?Vrms |
Feedthrough for measurement conductor | ? 5.0 mm | Width | 17?mm?/ 0.669?inches |
Height | 34?mm?/ 1.339?inches | Depth | 23?mm?/ 0.906?inches |
Mounting type | Closed current transformer | Insulation class | E |
Housing material | PA 66 | Weight | 11g |
Ambient temperature (operation) | -10 … +55 °C | Ambient temperature (storage) | -20 … +70 °C |
Relative humidity | 5 … 85?% (without condensation) | Operating altitude (max.) | 2000m |
Standards/specifications | EN 61869-2 | eCl@ss 10.0 | 27-21-09-02 |
eCl@ss 9.0 | 27-21-09-02 | ETIM 9.0 | EC002048 |
ETIM 8.0 | EC002048 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 15?(1)?pcs | Packaging type | Box |
Country of origin | NL | Customs tariff number | 85043129900 |
RoHS Compliance Status | Compliant,No Exemption | Measured variable | Current |
Rated short-time thermal current I<sub>th</sub> | 2 kA / 0.1 s | Rated surge current I<sub>dyn</sub> | 2.5 x Ith |
Rated frequency | 50 … 60?Hz | Primary rated current | 32?A |
Secondary rated current | 0.32A | Rated power S<sub>r</sub> | 0.01VA |
Accuracy class | 0.5 | Connection technology | Push-in CAGE CLAMP? |
WAGO connector | picoMAX?3.5, 2091-1122 | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Solid conductor | 0.2 … 1.5 mm2 / 24 … 14 AWG | Fine-stranded conductor | 0.2 … 1.5 mm2 / 24 … 14 AWG |
