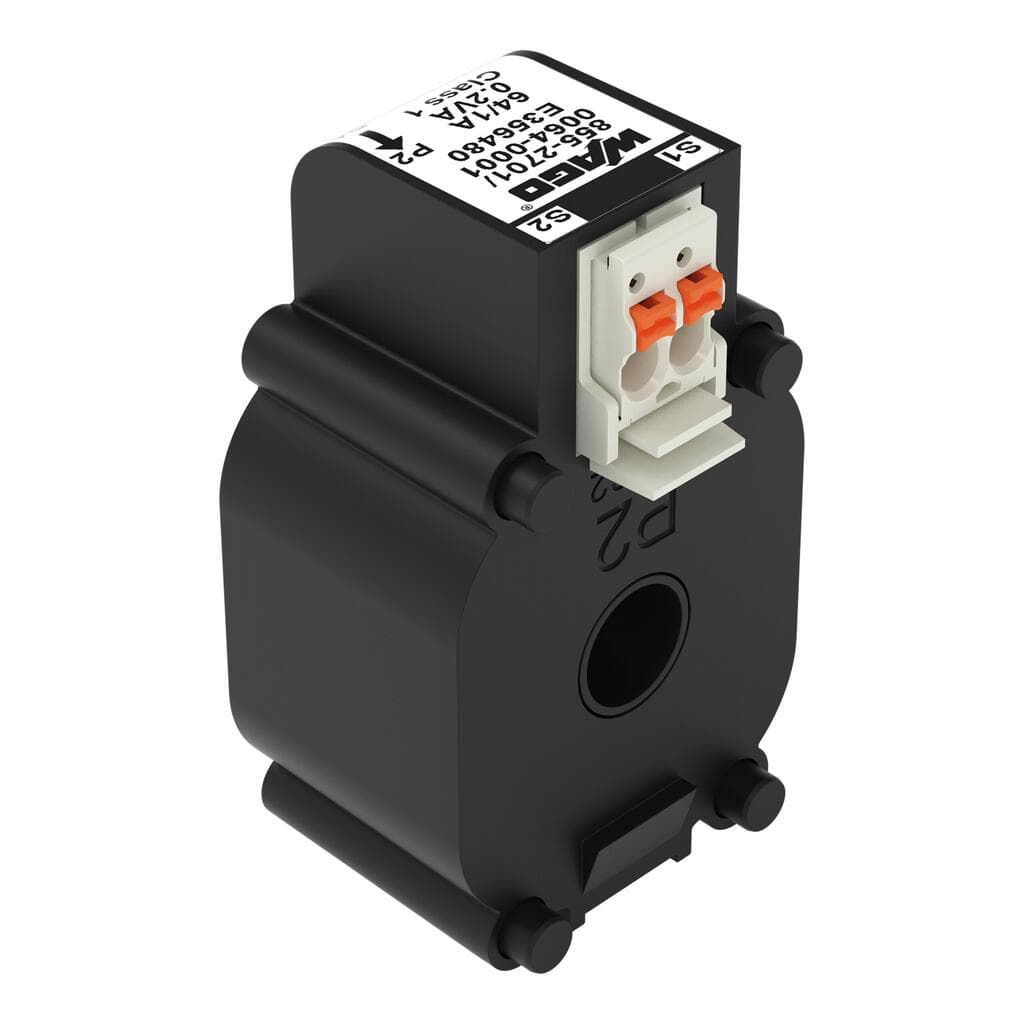

WAGO 855-2701/064-001 Plug-in Current Transformer

Selling Points

1High accuracy with an accuracy class of 1.
2Easy installation via plug-in connection technology.
3Compact design with a primary rated current of 64 A and secondary rated current of 1 A.
4Reliable performance with a rated power of 0.2 VA.
5Compatible with various DIN-rail mounting options for versatile application.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Protection type	IP20	Test voltage	AC 3?kV;?50?Hz;?1?min
Highest voltage for equipment U<sub>m</sub>	AC 720?Vrms	Feedthrough for measurement conductor	? 7.5 mm
Width	27?mm?/ 1.063?inches	Height	46?mm?/ 1.811?inches
Depth	23?mm?/ 0.906?inches	Mounting type	Closed current transformer
Insulation class	E	Housing material	PA 66
Weight	44g	Ambient temperature (operation)	-10 … +55 °C
Ambient temperature (storage)	-20 … +70 °C	Relative humidity	5 … 85?% (without condensation)
Operating altitude (max.)	2000m	Conformity marking	CE
Standards/specifications	EN 61869-1	eCl@ss 10.0	27-21-09-02
eCl@ss 9.0	27-21-09-02	ETIM 9.0	EC002048
ETIM 8.0	EC002048	ECCN	NO US CLASSIFICATION
PU (SPU)	15?(1)?pcs	Packaging type	Box
Country of origin	NL	Customs tariff number	85043129900
RoHS Compliance Status	Compliant,No Exemption	Measured variable	Current
Rated continuous thermal current I<sub>cth</sub>	100 %	Rated short-time thermal current I<sub>th</sub>	60 x IN/ 1 s
Rated surge current I<sub>dyn</sub>	2.5 x Ith	Rated frequency	50 … 60?Hz
Primary rated current	64?A	Secondary rated current	1A
Rated power S<sub>r</sub>	0.2VA	Accuracy class	1
Connection technology	Push-in CAGE CLAMP?	WAGO connector	picoMAX?3.5, 2091-1122
Strip length	8 … 9 mm / 0.31 … 0.35 inches	Solid conductor	0.2 … 1.5 mm2 / 24 … 14 AWG
Fine-stranded conductor	0.2 … 1.5 mm2 / 24 … 14 AWG

Specifications may be subject to change without notice
