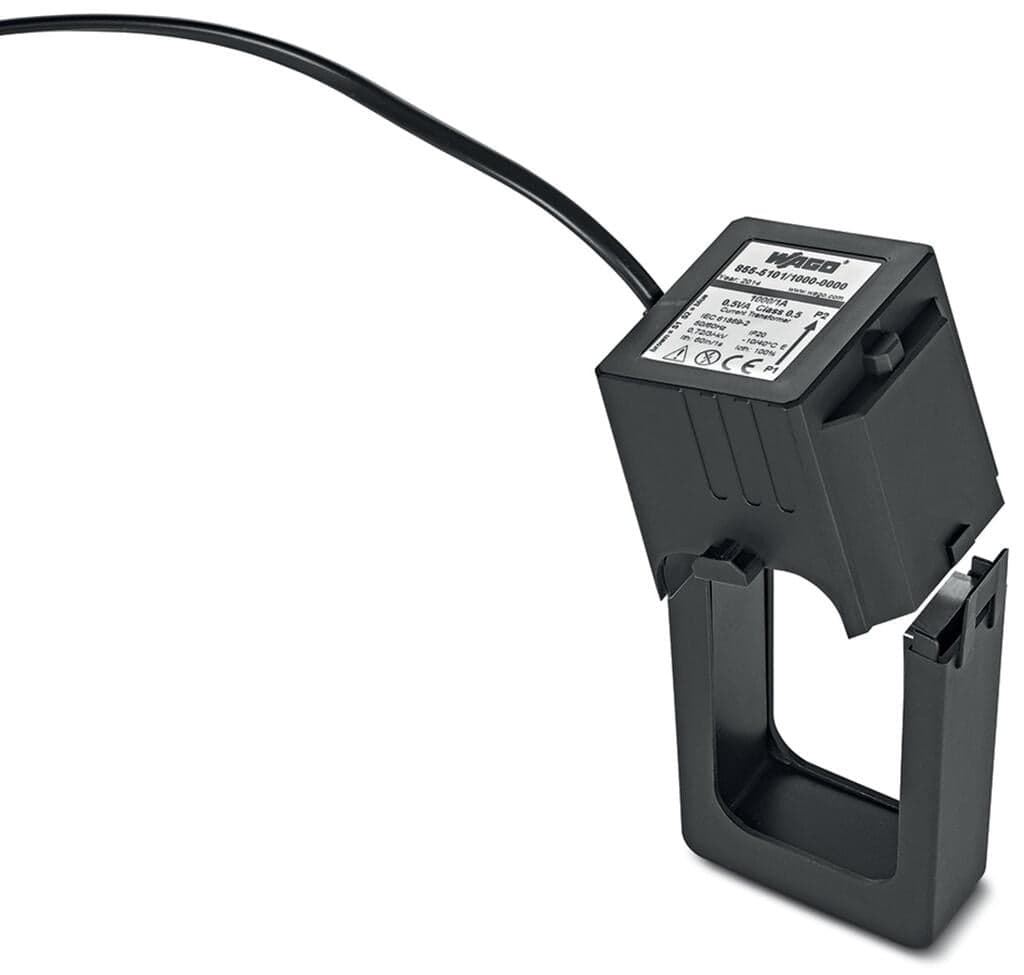

Product Model
855-5105/1000-000
Selling Points
- 1High accuracy with Class 0.5 accuracy rating.
- 2Compact design with rapid mounting capabilities.
- 3Suitable for use in confined spaces and around insulated cables up to 42 mm diameter.
- 4No measuring cable interruption during installation.
- 5Compliant with ROHS standards and suitable for ambient temperatures from -10°C to +40°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Protection type | IP20 | Test voltage | AC 3?kV;?50?Hz;?1?min |
Highest voltage for equipment U<sub>m</sub> | AC 720?Vrms | Feedthrough for measurement conductor | 2 x ? 42 mm |
Cable type | 2 x 1.5 mm2; fine-stranded | Color code | black = S1; red = S2 |
Cable length | 3m | Width | 66.2 mm / 2.606 inches |
Height | 139 mm / 5.472 inches | Depth | 66 mm / 2.6 inches |
Mounting type | Split-core current transformer (suspended) | Weight | 10g |
Ambient temperature (operation) | -10 … +40 °C | Ambient temperature (storage) | -20 … +70 °C |
Relative humidity | 5 … 85?% (without condensation) | Operating altitude (max.) | 2000m |
Conformity marking | CE | Standards/specifications | EN 61869-1 |
Product Group | 29 (INTERFACE ELECTRONIC (NET)) | eCl@ss 10.0 | 27-21-09-02 |
eCl@ss 9.0 | 27-21-09-02 | ETIM 9.0 | EC002048 |
ETIM 8.0 | EC002048 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | Box |
Country of origin | NL | Customs tariff number | 85043180888 |
RoHS Compliance Status | Compliant,No Exemption | Measured variable | Current |
Rated continuous thermal current I<sub>cth</sub> | 100 % | Rated short-time thermal current I<sub>th</sub> | 60 x IN/ 1 s |
Rated surge current I<sub>dyn</sub> | 2.5 x Ith | Rated frequency | 50 … 60?Hz |
Primary rated current | 1000?A | Secondary rated current | 5A |
Rated power S<sub>r</sub> | 0.5VA | Accuracy class | 0.5 |
Specifications may be subject to change without notice
