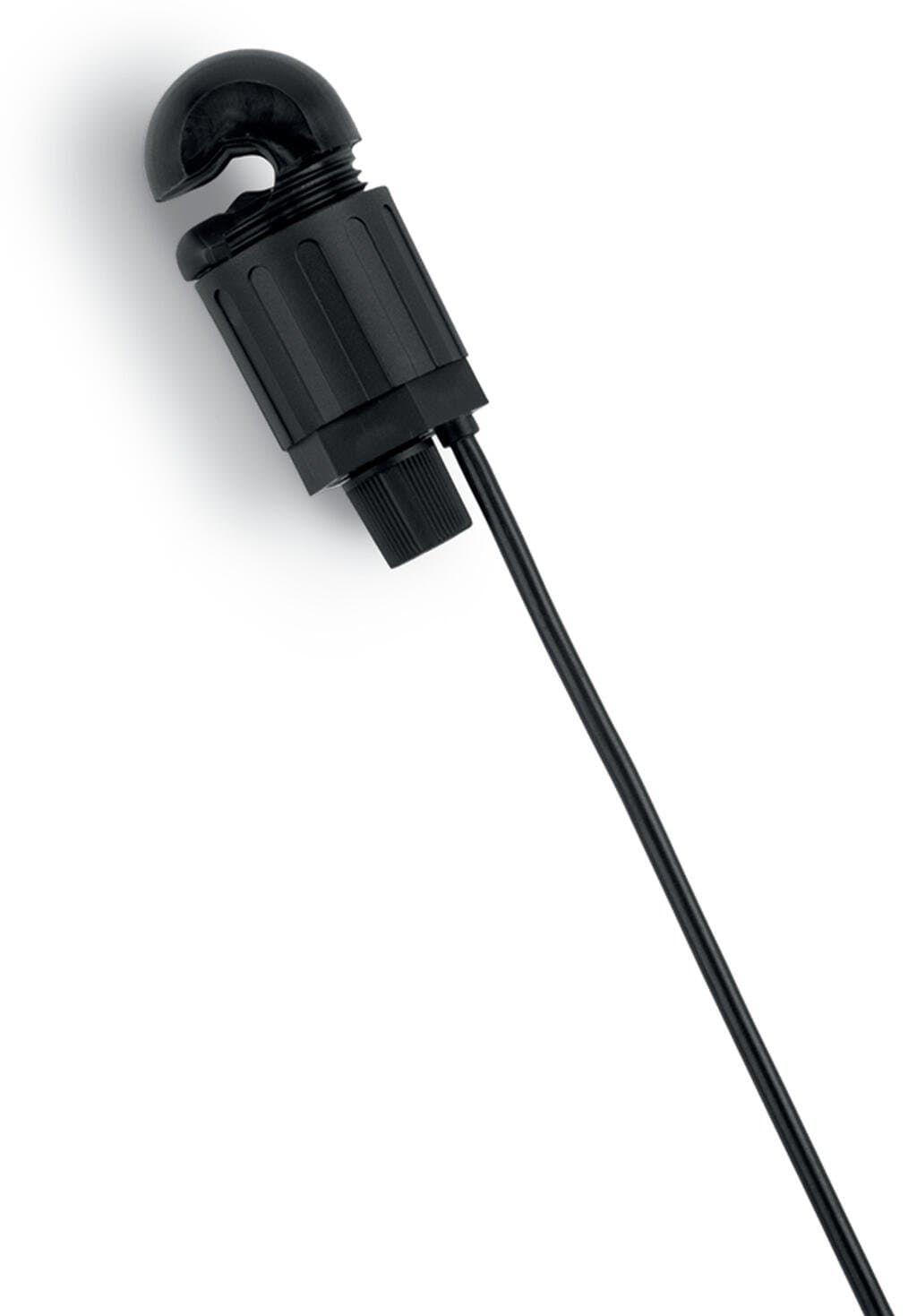

Product Model
855-8003
Selling Points
- 1Safely tap measurement voltage with just one turn.
- 2Tool-free assembly for easy installation.
- 3Secure mounting ensures stable connections.
- 4Includes a (5 x 25) mm 2A fuse for protection.
- 5Compatible with insulated conductors up to 16 mm² (6 AWG).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Spare fuse: WAGO 855-8020 | Rated surge voltage | 6?kV |
Overvoltage category | III | Pollution degree | 2 |
Protection type | IP20 | Test voltage | AC 3?kV;?50?Hz;?1?min |
Feedthrough for measurement conductor | 5 … 7 mm ? | Cable type | Secondary side: 1 x 1.0 mm2; flexible; with ferrule |
Cable length | 3m | Width | 23?mm?/ 0.906?inches |
Height | 59?mm?/ 2.323?inches | Depth | 23?mm?/ 0.906?inches |
Mounting type | Mounting on insulated round cable | Torque range | 1.5 … 2 Nm |
Usability | Can be reused several times (max. 24 times) | Housing material | PA 66 |
Weight | 72.6g | Ambient temperature (operation) | -5 … +55 °C |
Ambient temperature (storage) | -20 … +70 °C | Relative humidity | 5 … 85?% (without condensation) |
Operating altitude (max.) | 2000m | Conformity marking | CE |
Standards/specifications | EN 60947-7-1 | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?(1)?pcs | Packaging type | Box |
Country of origin | NL | Customs tariff number | 85366990990 |
RoHS Compliance Status | Compliant,No Exemption | Measured variable | Voltage |
Continuous current (max.) | 2A | Fuse (voltage path) | 2 A; 450 V; F; 70 kA; 5 x 25 mm (WAGO 855-8020) |
Rated voltage | AC 400?V | Voltage drop | ≤ 0.5?VAC |
Connection technology | IDC connection | Solid conductor | 10 … 16 mm2 / 8 … 6 AWG |
Fine-stranded conductor | 10 … 16 mm2 / 8 … 6 AWG |
Specifications may be subject to change without notice
