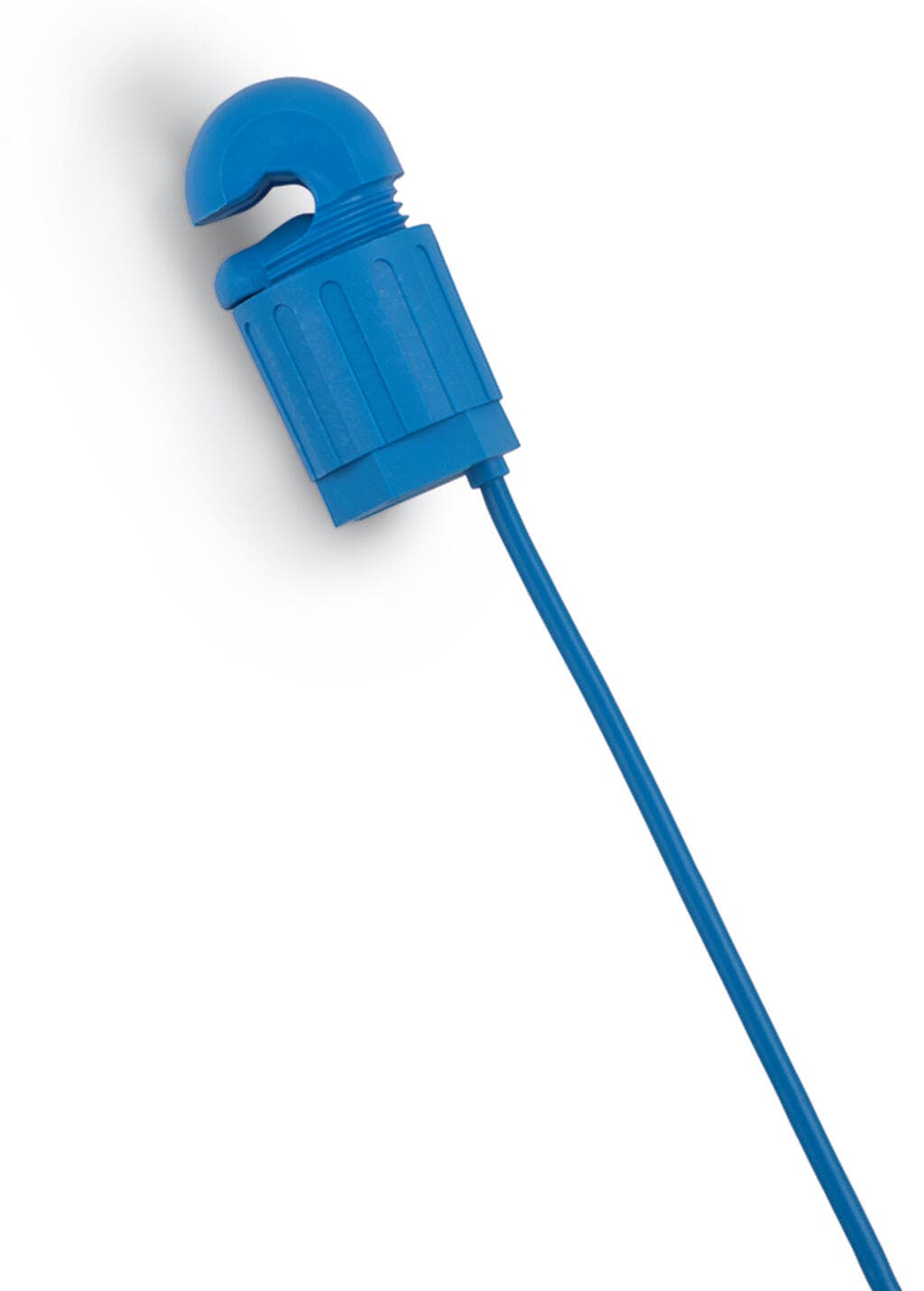

Product Model
855-8004
Selling Points
- 1Tool-free assembly for easy installation.
- 2Safely taps measurement voltage with just one turn.
- 3Secure mounting on insulated round cables.
- 4Rated for continuous current up to 2 A.
- 5Reusable up to 24 times for cost-effective use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated surge voltage | 6?kV | Overvoltage category | III |
Pollution degree | 2 | Protection type | IP20 |
Test voltage | AC 3?kV;?50?Hz;?1?min | Feedthrough for measurement conductor | 5 … 7 mm ? |
Cable type | Secondary side: 1 x 1.0 mm2; flexible; with ferrule | Cable length | 3m |
Width | 23?mm?/ 0.906?inches | Height | 50?mm?/ 1.969?inches |
Depth | 23?mm?/ 0.906?inches | Mounting type | Mounting on insulated round cable |
Torque range | 1.5 … 2 Nm | Usability | Can be reused several times (max. 24 times) |
Housing material | PA 66 | Weight | 21g |
Ambient temperature (operation) | -5 … +55 °C | Ambient temperature (storage) | -20 … +70 °C |
Relative humidity | 5 … 85?% (without condensation) | Operating altitude (max.) | 2000m |
Conformity marking | CE | Standards/specifications | EN 60947-7-1 |
eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
Packaging type | Box | Country of origin | NL |
Customs tariff number | 85366990990 | RoHS Compliance Status | Compliant,No Exemption |
Measured variable | Voltage | Continuous current (max.) | 2A |
Fuse (voltage path) | - | Rated voltage | AC 400?V |
Voltage drop | ≤ 0.5?VAC | Connection technology | IDC connection |
Solid conductor | 10 … 16 mm2 / 8 … 6 AWG | Fine-stranded conductor | 10 … 16 mm2 / 8 … 6 AWG |
Specifications may be subject to change without notice
