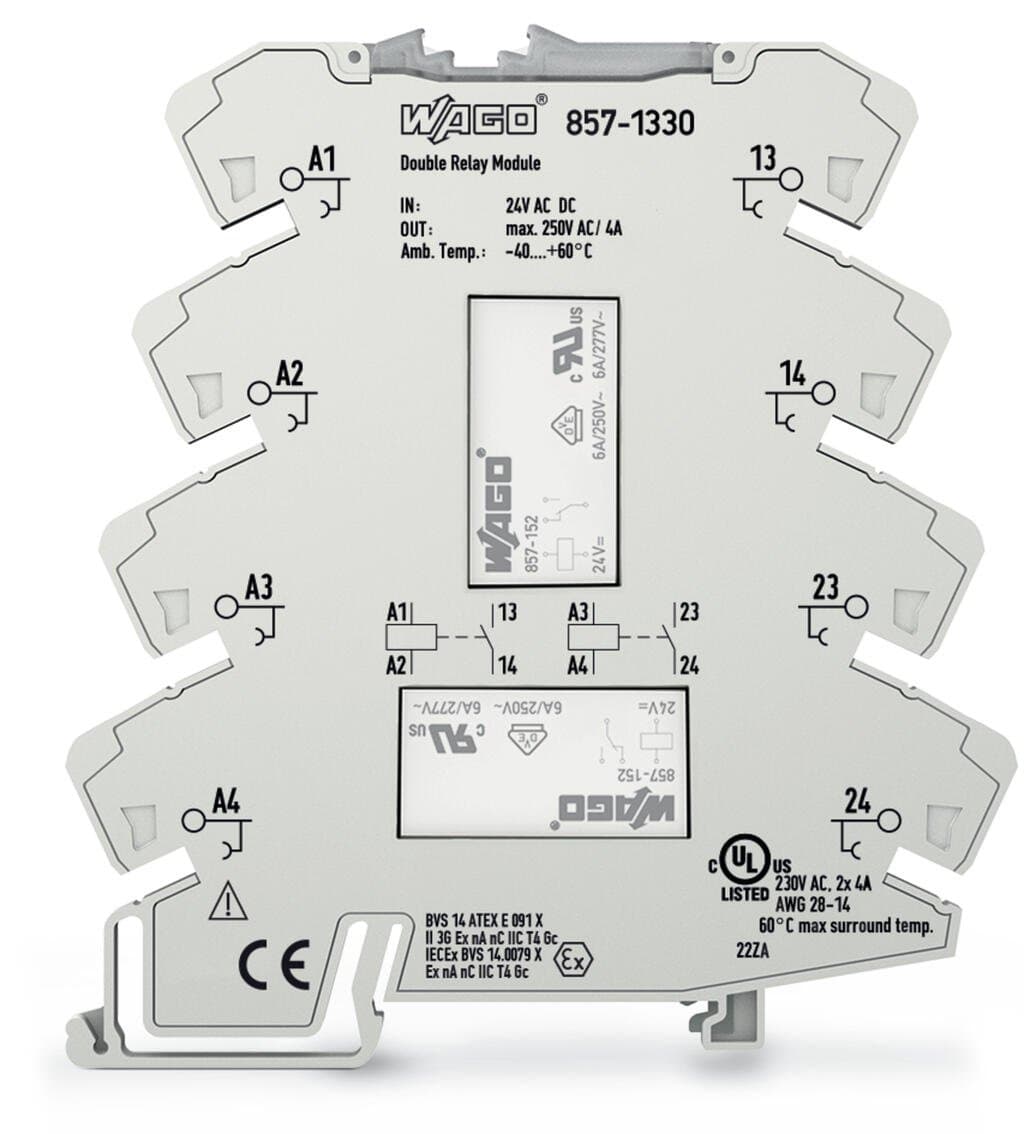

Product Model
857-1330
Selling Points
- 16mm width for easy integration into DIN-35 rail systems.
- 2Silver-Tin (AgSnO2) contacts ensure long-lasting performance.
- 3Compatible with both AC and DC voltages, with a nominal input voltage of 24V.
- 4Yellow status indicator for easy monitoring of relay status.
- 5Rated for 250V AC and 4 kVrms dielectric strength for enhanced safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit. | Rated voltage | 300V |
Overvoltage category | II | Pollution degree | 2 |
Dielectric strength (control/load circuit) (AC, 1?min) | 4?kVrms | Dielectric strength (open contact) (AC, 1?min) | 1?kVrms |
Dielectric strength (channel/channel) (AC, 1 min.) | 3?kVrms | Insulation type (control/load circuit) | Reinforced insulation (safe isolation) |
Insulation type (load/load circuit) | Reinforced insulation (safe isolation) | Insulation type (between adjacent devices of the same type) | Reinforced insulation (safe isolation) |
Protection type | IP20 | Connection technology | Push-in CAGE CLAMP? |
Solid conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor; with insulated ferrule | 0.34 … 1.5?mm2?/ 22 … 16?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 6?mm?/ 0.236?inches | Height | 94?mm?/ 3.701?inches |
Depth from upper-edge of DIN-rail | 97.8?mm?/ 3.85?inches | Mounting type | DIN-35 rail |
Mounting position | Horizontal (standing/lying); vertical | Note (material data) | Information on material specifications can be found here |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.363MJ | Weight | 39.3g |
Ambient temperature (operation at U<sub>N</sub>) | -40 … +60 °C | Ambient temperature (storage) | -40 … +70 °C |
Processing temperature | -25 … +50?°C | Temperature range of connection cable | ≥ (Tambient+ 30 K) |
Relative humidity | 5 … 85?% (no condensation permissible) | Operating altitude (max.) | 2000m |
Standards/specifications | EN 61010-2-201 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-37-16-01 | eCl@ss 9.0 | 27-37-16-01 |
ETIM 9.0 | EC001437 | ETIM 8.0 | EC001437 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?(1)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4066966380125 | Customs tariff number | 8536490050 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | 8168b107-474c-46c7-bde2-d21ca93fa017 | SCIP notification number (Belgium) | 8336f5b5-9623-4b4a-9d84-5608f27cbb51 |
SCIP notification number (Bulgaria) | 6b676836-8901-4141-9a22-1180742388e6 | SCIP notification number (Czech Republic) | 397f1ad1-e765-4bf8-9d66-104d825fa1db |
SCIP notification number (Denmark) | 9517a8e1-c1c6-4000-8546-1e11de060cad | SCIP notification number (Finland) | c325346d-d153-4c59-81ca-648a4633d3e0 |
SCIP notification number (France) | a864ad96-384b-4309-9cf9-c35c4a2ec507 | SCIP notification number (Germany) | c13f5355-76a3-42f0-8654-456cba560b24 |
SCIP notification number (Hungary) | 0058c806-abd0-4e13-b691-146108f6ab40 | SCIP notification number (Italy) | 94bebbf9-d59b-470d-81e9-a1ac75b96d76 |
SCIP notification number (Netherlands) | a7b4bb33-bf3e-45d1-a73b-4413764b61ff | SCIP notification number (Poland) | cc097f14-63bd-4bcc-833d-fbfb37478c45 |
SCIP notification number (Romania) | e57484e5-ec34-489a-b49b-bf8a45d2686a | SCIP notification number (Sweden) | bdad4532-22d1-4f17-a6a2-c395a890e08e |
Nominal input voltage U<sub>N</sub> | AC/DC?24?V | Input voltage range | -15 … +20?% |
Nominal input current at U<sub>N</sub> | 10?mA | Number of make/switch-on contacts | 1 |
Contact material (relay) | AgSnO2 | Limiting continuous current | 4?A |
Inrush current (resistive) max. | (AC) 20?A?/ 0.02?s | Switching Voltage, Max. | AC?250?V |
Switching power (resistive) max. | AC?1000?VA;?DC (see load limit curve) | Switching capacity | AC-15:?3?A?/ AC?250?V;?DC-13:?2?A?/ DC?24?V |
Recommended minimum load | 10?V?/ 10?mA;?24?V?/ 1?mA | Pull-in time (typ.) | 15ms |
Drop-out time (typ.) | 25ms | Bounce time (typ.) | 3.5ms |
Electrical life (NO; resistive load; 23?°C) | 50?x 103 switching operations | Mechanical life | 5?x 10? switching operations |
Switching frequency with/without load (max.) | 6?min-1/ 180?min-1 | Status indicator | Yellow LED |
