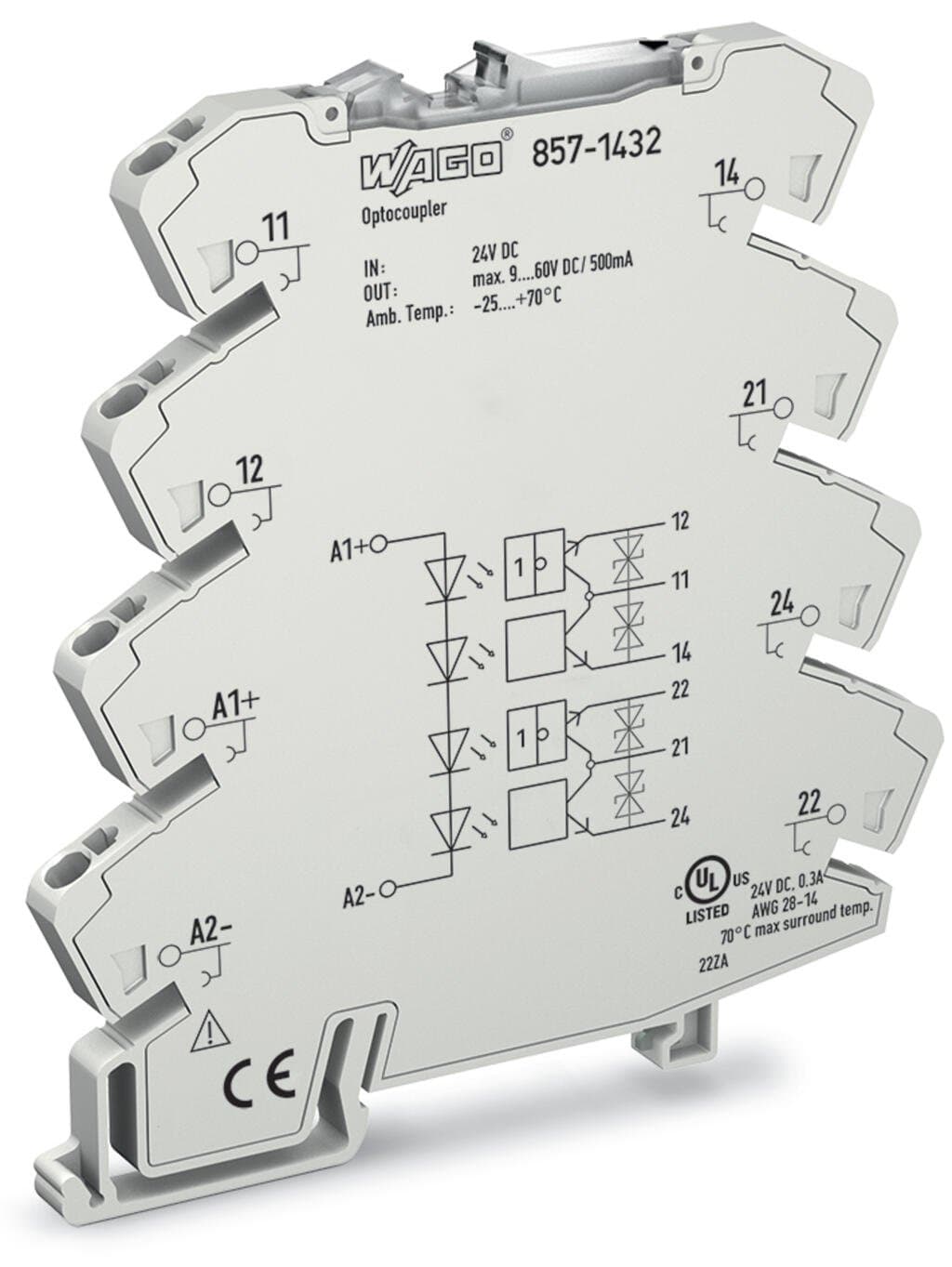

Product Model
857-1432
Selling Points
- 1Solid-state relay with fixed-type solid-state/static relay functions.
- 2Push-in CAGE CLAMP spring connections for easy wiring.
- 3Nominal input voltage of 24VDC and output voltage range of 9-60VDC.
- 4Limiting continuous current of 0.5A and 2 changeover contacts.
- 5Yellow status indicator for easy monitoring and DIN-35 rail mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network. | Rated voltage | 300V |
Overvoltage category | II | Pollution degree | 2 |
Dielectric strength (control/load circuit) (AC, 1?min) | 3.5?kVrms | Dielectric strength (channel/channel) (AC, 1 min.) | 3.5?kVrms |
Dielectric strength (load/load circuit) (AC, 1?min) | 3.5?kVrms | Insulation type (control/load circuit) | Basic insulation |
Insulation type (load/load circuit) | Reinforced insulation (safe isolation) | Insulation type (between adjacent devices of the same type) | Reinforced insulation (safe isolation) |
Insulation type (to adjacent devices of different types) | Basic insulation | Protection type | IP20 |
Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor; with insulated ferrule | 0.34 … 1.5?mm2?/ 22 … 16?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Width | 6?mm?/ 0.236?inches |
Height | 94?mm?/ 3.701?inches | Depth from upper-edge of DIN-rail | 97.8?mm?/ 3.85?inches |
Mounting type | DIN-35 rail | Mounting position | horizontal (standing/lying); vertical |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.363MJ | Weight | 33g |
Ambient temperature (operation at U<sub>N</sub>) | -25 … +70 °C | Ambient temperature (storage) | -40 … +70 °C |
Processing temperature | -25 … +50?°C | Temperature range of connection cable | ≥ (Tambient+ 30 K) |
Relative humidity | 5 … 85?% (no condensation permissible) | Operating altitude (max.) | 2000m |
Standards/specifications | EN 61000-6-2 | eCl@ss 10.0 | 27-26-15-03 |
eCl@ss 9.0 | 27-26-15-03 | ETIM 9.0 | EC001504 |
ETIM 8.0 | EC001504 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?(1)?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4050821884651 |
Customs tariff number | 8541500080 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Bulgaria) | a07c1000-6d77-4e95-84de-473d52de767a |
SCIP notification number (Czech Republic) | fe656947-df5d-4be5-bc8b-4966ca772092 | Nominal input voltage U<sub>N</sub> | DC?24?V |
Input voltage range (low level) | DC?0 … 5?V | Input voltage range (high level) | DC?16.8 … 30?V |
Nominal input current at U<sub>N</sub> | 6?mA | Circuit type | 2-way |
Limiting continuous current | 0.5?A | Nominal output voltage | DC?24?V |
Output voltage range | DC 9 … 60?V | Voltage drop | ≤ 1.5?VDC |
Leakage current at rated voltage | ≤?1.5?mA | Switching current (min.) | 0.5?mA |
Turn-on time | ≤?25?μs | Turn-off time | ≤?250?μs |
Switching frequency | ≤?1.5?kHz | Status indicator | Yellow LED |
Specifications may be subject to change without notice
