Product Model

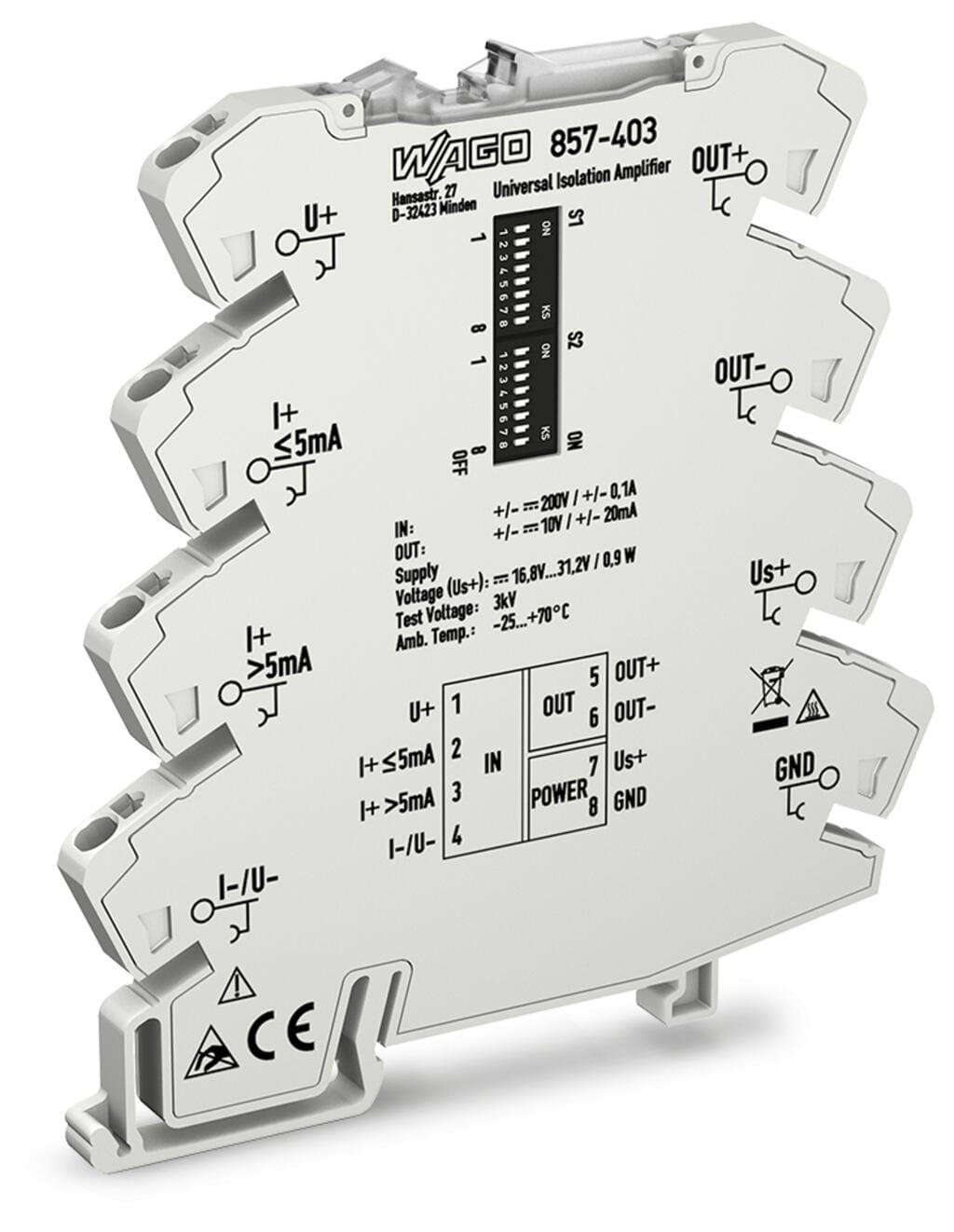

857-403
Selling Points
- 1High Isolation Power Rating: 3 kV power rating ensures robust electrical isolation.
- 2Versatile Input/Output: Supports 0 to 200 V input and 2 to 10 V output.
- 3Compact Design: Dimensions: 3.70 in H x 0.23 in W x 3.85 in D for easy mounting.
- 4Durable Construction: Built for high durability with IP20 protection.
- 5Configurable via DIP Switch: Flexible configuration options for various signal processing needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Use shielded signal lines!Only use shielded signal lines for analog input and output signals.Only then can you ensure that the accuracy and interference immunity specified for the device can be achieved, even in the presence of interference acting on the signal cable. | Rated voltage | 200V |
Overvoltage category | II | Pollution degree | 2 |
Protection type | IP20 | Connection technology | Push-in CAGE CLAMP? |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Width | 6?mm?/ 0.236?inches |
Height | 94?mm?/ 3.701?inches | Depth from upper-edge of DIN-rail | 97.8?mm?/ 3.85?inches |
Mounting type | DIN-35 rail | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.191MJ |
Weight | 38g | Ambient temperature (operation) | -25 … +70 °C |
Ambient temperature (storage) | -40 … +85 °C | Relative humidity | 5 … 95?% (no condensation permissible) |
Operating altitude (max.) | 2000m | Conformity marking | CE |
EMC immunity to interference | EN 61000-6-2 | EMC emission of interference | EN 61000-6-4 |
Standards/specifications | EN 61010-1 | ETIM 9.0 | EC002653 |
ETIM 8.0 | EC002653 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4066966111668 |
Customs tariff number | 8543704500 | CAS-No. | 11120-22-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | a8a004bc-34c5-4ea9-9fd5-3762e2a2f8e0 |
SCIP notification number (Belgium) | c424778a-3314-475a-9226-5795843c2fda | SCIP notification number (Bulgaria) | 8b595184-c1c5-4426-a1e7-2f6f8159c4f4 |
SCIP notification number (Czech Republic) | b6f3f06c-3e9a-4abb-bece-809b95b08dcd | SCIP notification number (Denmark) | 6bae2c8f-914a-4fb5-b220-2b7bad4078ed |
SCIP notification number (Finland) | 154844fb-82cf-4059-b5ef-9b44733f003a | SCIP notification number (France) | 65fa3ca6-9c95-4781-8fb2-2fa2faedd624 |
SCIP notification number (Germany) | 516c27d5-1efb-47e0-b2a8-6a0202211e5e | SCIP notification number (Hungary) | daea5cf8-bdb4-4121-9861-64c35ba3bae2 |
SCIP notification number (Italy) | cc361fab-b71b-4544-998e-a543af9c80c5 | SCIP notification number (Netherlands) | a7270535-33a4-4e1c-9a38-edc13bc743b3 |
SCIP notification number (Poland) | 4346b186-8f0f-4af9-bf9d-7408b5ba8219 | SCIP notification number (Romania) | 689fb8bc-de7b-4fe6-bec9-5c417eaacf08 |
SCIP notification number (Sweden) | 86b84c70-023f-466f-8f3b-286656609762 | Configuration options | DIP switch |
Input signal type | Voltage (DC) | Input signal (V) | ±60?mV |
Input signal (A) | ±0.3?mA | Input resistance (current input) | 10?Ω (≥ 5?mA);?100?Ω (≤ 5?mA) |
Input resistance (voltage input) | 1?M? | Output signal type | Current |
Output signal (V) | ±?5?V | Output signal (A) | ±10?mA |
Load impedance (voltage output) | ≥?2?kΩ | Load impedance (current output) | ≤?600?Ω |
Limit frequency | 100?Hz?/ 5?kHz (configurable via DIP switch) | Step response (typ.) | 3.5?ms (100?Hz);?100?μs (5 kHz) |
Transmission error (typ.) | ≤ 0.08 % of upper-range value | Temperature coefficient | ≤ 0.01 %/K |
Power supply type | 24?VDC | Nominal supply voltage U<sub>S</sub> | DC?24?V |
Supply voltage range | ±30?% | Current consumption at nominal supply voltage | ≤?40?mA |
Test voltage (input/output/supply) | AC 3?kV;?50?Hz;?1?min | Insulation type (input/supply and analog output/relay output) | Reinforced insulation (safe isolation) |
