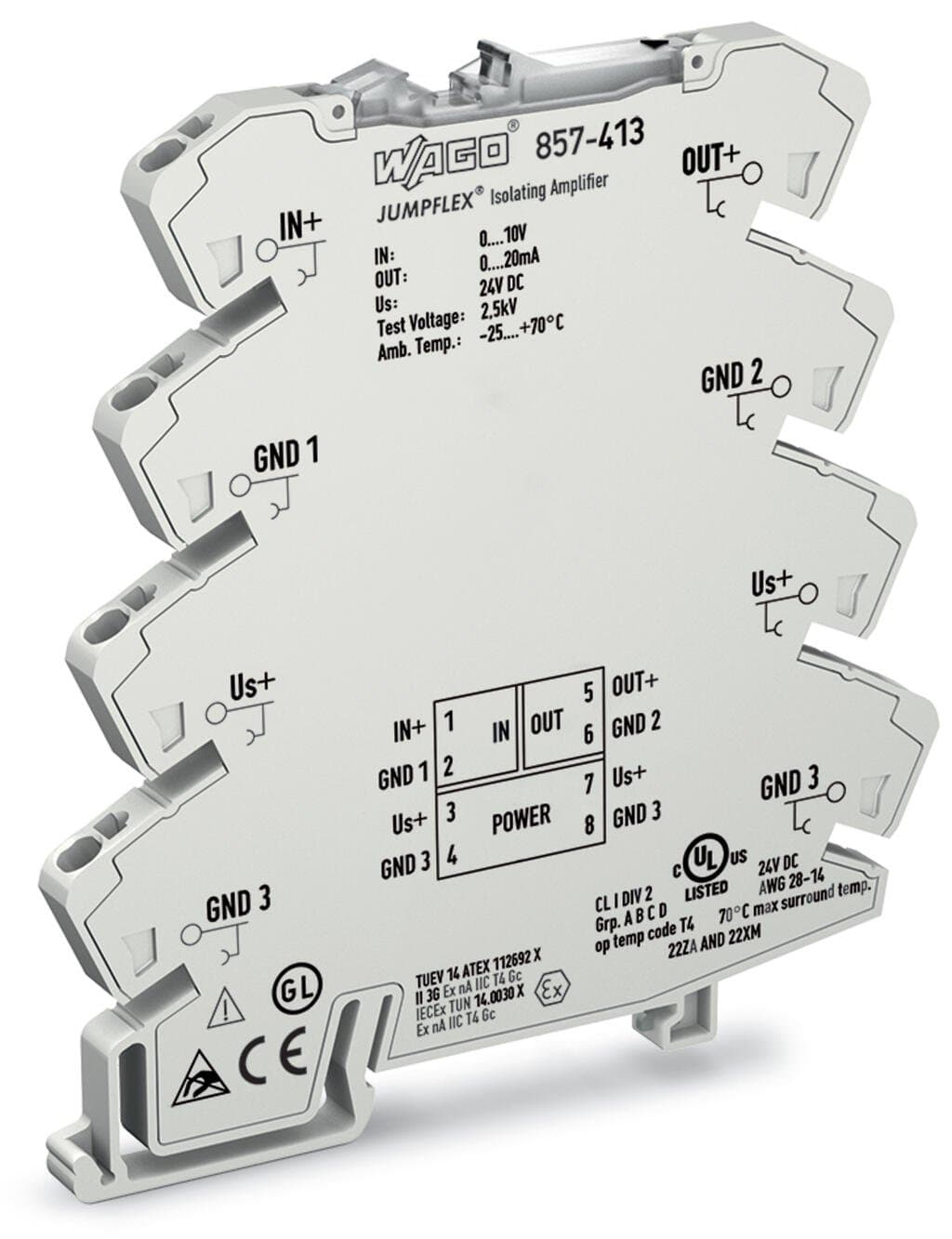

Product Model
857-413
Selling Points
- 1Safe 3-way isolation with 2.5kV test voltage for secure signal processing.
- 2Analog input (0-10Vdc) and output (0-20mA) for versatile signal conversion.
- 3Push-in CAGE CLAMP spring connections for easy and secure wiring.
- 4Operates on a supply voltage of 16.8-26.4Vdc (nominal 24Vdc) for stable operation.
- 5Compact size with a width of 6mm, ideal for DIN-35 rail mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Input and output must be safely isolated from any hazardous live parts! | Note | The 3 (Us+), 7 (Us+), 4 (GND 3) and 8 (GND 3) connections are internally commoned.Current carrying capacity between 3/4 and 7/8 connections: 1 A (max.) |
Rated voltage | 300V | Protection type | IP20 |
Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 6?mm?/ 0.236?inches | Height | 94?mm?/ 3.701?inches |
Depth from upper-edge of DIN-rail | 97.8?mm?/ 3.85?inches | Mounting type | DIN-35 rail |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.363MJ | Weight | 36g |
Ambient temperature (operation) | -25 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Processing temperature | -25 … +50 °C | Temperature range of connection cable | ≥ (Tambient+ 25 K) |
Relative humidity | 5 … 95?% (no condensation permissible) | Operating altitude (max.) | 2000m |
Conformity marking | CE | EMC immunity to interference | EN 61000-6-2 |
EMC emission of interference | EN 61000-6-4 | Standards/specifications | EN 61010-1 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-21-01-20 |
eCl@ss 9.0 | 27-21-01-20 | ETIM 9.0 | EC002653 |
ETIM 8.0 | EC002653 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4045454609870 |
Customs tariff number | 8543704500 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | fd41299f-0e4f-417c-99eb-595a1e2192ef |
SCIP notification number (Belgium) | a99e8c4e-0570-443f-8b3e-8c863352c12a | SCIP notification number (Bulgaria) | 76a172ab-b56d-4758-a9fd-f73103912246 |
SCIP notification number (Czech Republic) | 43693d98-84c5-40fc-ab28-89fe033ab325 | SCIP notification number (Denmark) | ce97df4e-7b83-4e33-a0ea-c392f807fcfb |
SCIP notification number (Finland) | 0e444812-572e-41ff-856d-c4d2fd15234d | SCIP notification number (France) | e77d21ab-5511-4c6c-b3f0-072975a44f4c |
SCIP notification number (Germany) | 34ec7cb2-339f-41c1-9988-46a683522d51 | SCIP notification number (Hungary) | 7dddd5a5-f669-4dbe-99b2-9b7df8e5fd8b |
SCIP notification number (Italy) | 91b8b12e-8bcc-4404-8a48-33da3b0f25f8 | SCIP notification number (Netherlands) | 4eb427f4-911b-403c-8b30-c690c8c880cd |
SCIP notification number (Poland) | 6d1da284-d711-4f97-8d75-3cce3cdcd33f | SCIP notification number (Romania) | faf26c83-521e-47d2-a51a-ffe7831bf394 |
SCIP notification number (Sweden) | 65a15d0e-dbde-44d0-be69-5d2b7828d3fd | Configuration options | Pre-configured |
Input signal type | Voltage | Input signal (V) | 0 … 10?V |
Input resistance (voltage input) | ≥?100?kΩ | Input voltage (max.) | 30 V |
Output signal type | Current | Output signal (A) | 0 … 20?mA |
Load impedance (current output) | ≤?600?Ω | Limit frequency | 100?Hz |
Step response (typ.) | 3.5?ms | Transmission error (typ.) | ≤ 0.1 % of upper-range value |
Temperature coefficient | ≤ 0.01 %/K | Power supply type | 24 VDC (SELV) |
Nominal supply voltage U<sub>S</sub> | DC?24?V | Supply voltage range | ±30?% |
Current consumption at nominal supply voltage | ≤ 30 mA | Current consumption | ≤ 40 mA |
Test voltage (input/output/supply) | AC 3 kV; 50 Hz; 1 min | Overvoltage category | II |
Pollution degree | 2 | Insulation type (input IN 2.1/relay output) | Functional insulation |
Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
Specifications may be subject to change without notice
