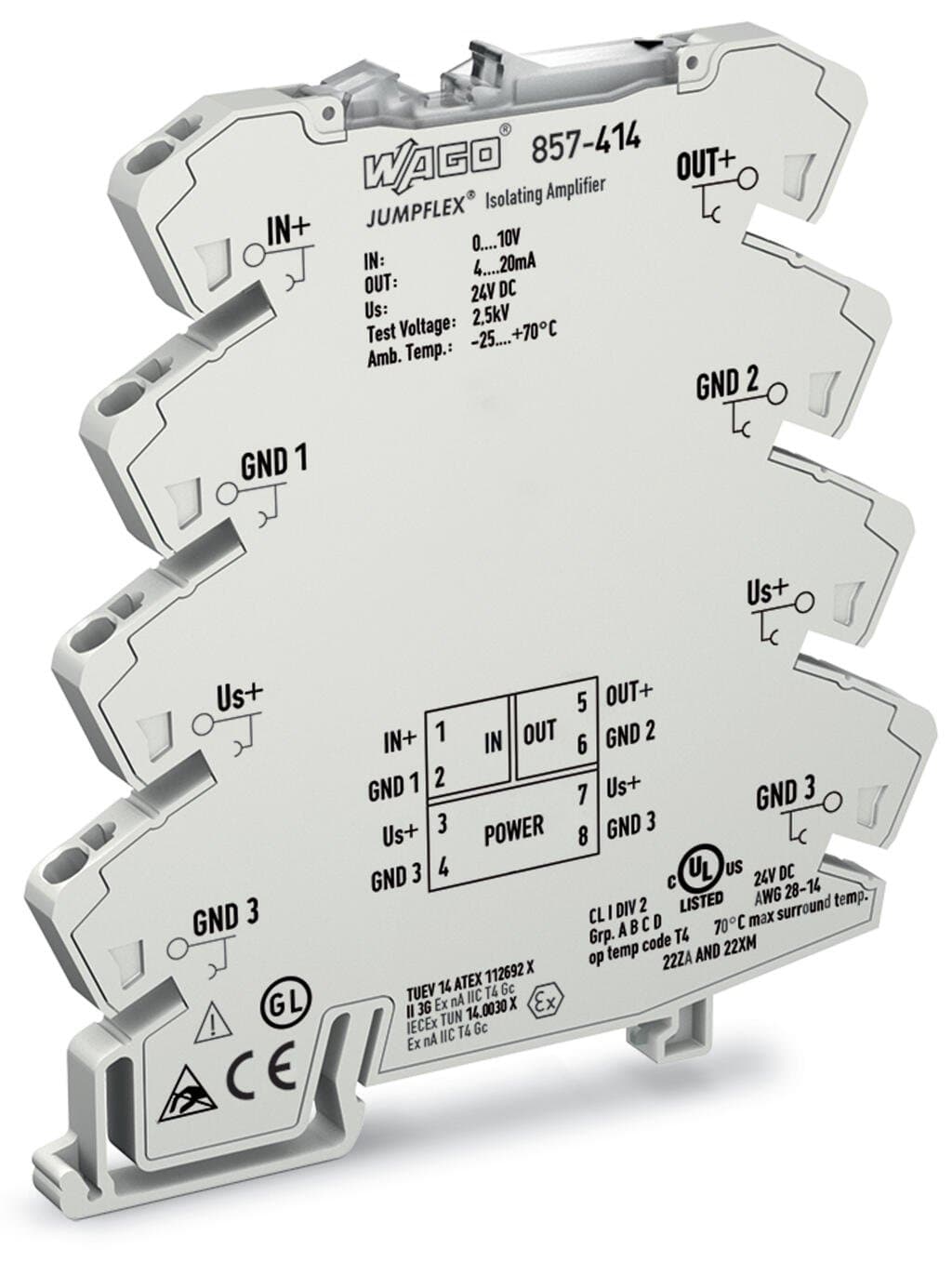

Product Model
857-414
Selling Points
- 1Converts and amplifies standard analogue signals.
- 2Features a 24VDC supply voltage.
- 3Offers a 3.5ms response time.
- 4Includes Push-in CAGE CLAMP spring connections.
- 5Suitable for DIN rail mounting with an IP20 protection rating.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Input and output must be safely isolated from any hazardous live parts! | Note | The 3 (Us+), 7 (Us+), 4 (GND 3) and 8 (GND 3) connections are internally commoned.Current carrying capacity between 3/4 and 7/8 connections: 1 A (max.) |
Rated voltage | 300V | Protection type | IP20 |
Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 6?mm?/ 0.236?inches | Height | 94?mm?/ 3.701?inches |
Depth from upper-edge of DIN-rail | 97.8?mm?/ 3.85?inches | Mounting type | DIN-35 rail |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.363MJ | Weight | 35.5g |
Ambient temperature (operation) | -25 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Processing temperature | -25 … +50 °C | Temperature range of connection cable | ≥ (Tambient+ 25 K) |
Relative humidity | 5 … 95?% (no condensation permissible) | Operating altitude (max.) | 2000m |
Conformity marking | CE | EMC immunity to interference | EN 61000-6-2 |
EMC emission of interference | EN 61000-6-4 | Standards/specifications | EN 61010-1 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-21-01-20 |
eCl@ss 9.0 | 27-21-01-20 | ETIM 9.0 | EC002653 |
ETIM 8.0 | EC002653 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4045454609863 |
Customs tariff number | 8543704500 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | ee0f7499-85aa-4ad6-b4e4-f5ee04e550d1 |
SCIP notification number (Belgium) | d1965de1-863d-4785-992f-75acc6b3516e | SCIP notification number (Bulgaria) | 2d2bea65-4b3e-4e3c-8dd4-2e96cfdbf0ba |
SCIP notification number (Czech Republic) | 4533b34f-dd11-4414-8f1e-e4b95dcf8c4a | SCIP notification number (Denmark) | b2977381-317e-46af-8c7a-d6025e2303ea |
SCIP notification number (Finland) | e2c94759-0892-4253-bdb9-3bda2c3d237d | SCIP notification number (France) | 10081c24-d42a-48b7-9033-7a2c32922d7f |
SCIP notification number (Germany) | 4529de71-b650-4e0a-91d8-38a9ca0b8821 | SCIP notification number (Hungary) | bc1ca59a-c040-45d8-b2f4-8b8a932479f9 |
SCIP notification number (Italy) | 171a7562-eeb8-4681-9cfb-c198f40895f7 | SCIP notification number (Netherlands) | a733b0bd-2ddb-4678-abe3-33e1b582ba42 |
SCIP notification number (Poland) | 4344dacc-72be-4947-96d7-250e67cd947a | SCIP notification number (Romania) | 9257b894-50f0-4313-957e-8bc854054435 |
SCIP notification number (Sweden) | f8e7ff6a-6d51-4780-88b0-6f3882c13d57 | Configuration options | Pre-configured |
Input signal type | Voltage | Input signal (V) | 0 … 10?V |
Input resistance (voltage input) | ≥?100?kΩ | Input voltage (max.) | 30 V |
Output signal type | Current | Output signal (A) | 4 … 20?mA |
Load impedance (current output) | ≤?600?Ω | Limit frequency | 100?Hz |
Step response (typ.) | 3.5?ms | Transmission error (typ.) | ≤ 0.1 % of upper-range value |
Temperature coefficient | ≤ 0.01 %/K | Power supply type | 24 VDC (SELV) |
Nominal supply voltage U<sub>S</sub> | DC?24?V | Supply voltage range | ±30?% |
Current consumption at nominal supply voltage | ≤ 30 mA | Current consumption | ≤ 40 mA |
Test voltage (input/output/supply) | AC 3 kV; 50 Hz; 1 min | Overvoltage category | II |
Pollution degree | 2 | Insulation type (input IN 2.1/relay output) | Functional insulation |
Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
