Product Model

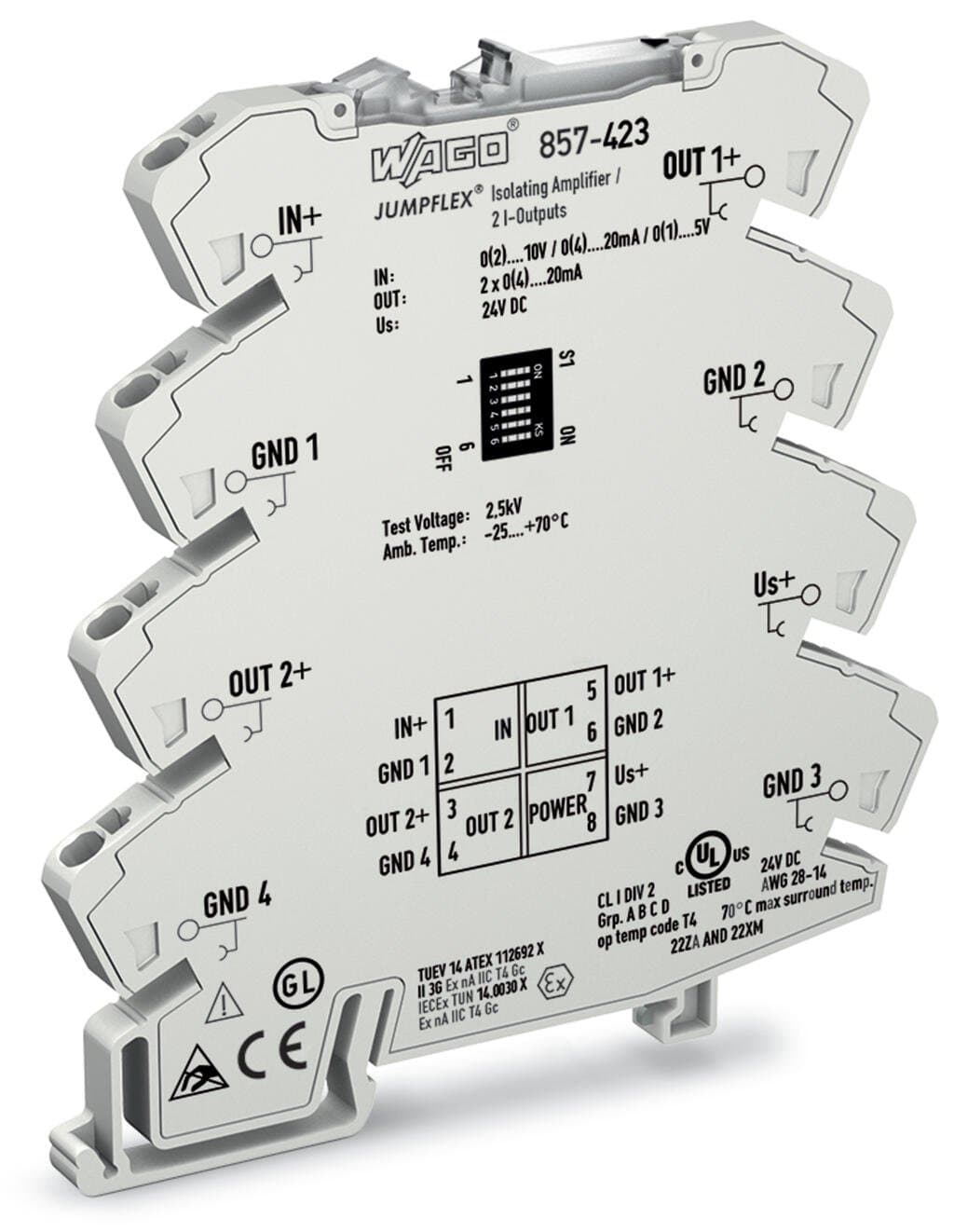

857-423
Selling Points
- 10.1% output accuracy ensures precise signal processing.
- 2Two current outputs for flexible signal conditioning.
- 32.5kV test voltage to EN 61140 for safe electrical isolation.
- 46mm module width for easy DIN rail mounting.
- 5Supports 0-20mA, 4-20mA, 0-5V, and 1-5V input signals.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Use shielded signal lines!Only use shielded signal lines for analog input and output signals.Only then can you ensure that the accuracy and interference immunity specified for the device can be achieved, even in the presence of interference acting on the signal cable. | Rated voltage | 300V |
Protection type | IP20 | Connection technology | Push-in CAGE CLAMP? |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Cable type | Shielded cable |
Width | 6?mm?/ 0.236?inches | Height | 94?mm?/ 3.701?inches |
Depth from upper-edge of DIN-rail | 97.8?mm?/ 3.85?inches | Mounting type | DIN-35 rail |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.363MJ | Weight | 40.6g |
Ambient temperature (operation) | -25 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Processing temperature | -25 … +50 °C | Temperature range of connection cable | ≥ (Tambient+ 10 K) |
Relative humidity | 5 … 95?% (no condensation permissible) | Operating altitude (max.) | 2000m |
Conformity marking | CE | EMC immunity to interference | EN 61000-6-2 |
EMC emission of interference | EN 61000-6-4 | Standards/specifications | DNV |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-21-01-20 |
eCl@ss 9.0 | 27-21-01-20 | ETIM 9.0 | EC002653 |
ETIM 8.0 | EC002653 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4045454471316 |
Customs tariff number | 8543704500 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | f3bd2dd6-8897-4727-8817-eb8fa4f61833 |
SCIP notification number (Belgium) | 6461991f-6733-4ab1-96d8-363c4c0ad2d1 | SCIP notification number (Bulgaria) | 0909499e-b080-4fb2-838b-98acad664bd1 |
SCIP notification number (Czech Republic) | 9cb4d383-a36c-4264-be61-624a74c1699b | SCIP notification number (Denmark) | 3e5537a9-59e8-4490-96fc-80cc1df749cf |
SCIP notification number (Finland) | 77584296-15bf-4327-bfa4-a92bdb8232ef | SCIP notification number (France) | a3a6bac3-78ac-411b-a7ae-18317cb7da7a |
SCIP notification number (Germany) | 1aac8de7-6254-4741-923d-9ee0f0d08019 | SCIP notification number (Hungary) | 0529448d-a98e-4ab8-8359-594effec587a |
SCIP notification number (Italy) | 52b6c194-a8eb-4660-9154-c8c6e3105cfe | SCIP notification number (Netherlands) | 49bf022e-ca61-4f49-9ce1-2614f036ad4d |
SCIP notification number (Poland) | 85edb9a3-3ac3-4dab-b3a5-499070b23c99 | SCIP notification number (Romania) | 5acb356f-906f-48b0-84d7-748ba0bfdc2e |
SCIP notification number (Sweden) | ac6b507e-39a6-4f8d-9254-a4f1bb9e7bfc | Configuration options | DIP switch |
Input signal type | Voltage | Input signal (V) | 0 … 5?V |
Input signal (A) | 0 … 20?mA | Input resistance (current input) | ≤?50?Ω |
Input resistance (voltage input) | ≥?100?kΩ | Output signal type | Current |
Output signal (A) | 0 … 20?mA | Load impedance (current output) | ≤?300?Ωper channel |
Limit frequency | 100?Hz?/ 1?kHz (configurable via DIP switch) | Step response (typ.) | 3.5?ms (100?Hz);?300?μs (1?kHz) |
Transmission error (typ.) | ≤ 0.1 % of upper-range value | Transmission error (max.) | ≤ 0.2 % of upper-range value |
Transmission error (under interference) | ≤ 10 % | Temperature coefficient | ≤ 0.01 %/K |
Power supply type | 24?VDC | Nominal supply voltage U<sub>S</sub> | DC?24?V |
Supply voltage range | ±30?% | Current consumption at nominal supply voltage | ≤?35?mA |
Test voltage (input/output/supply) | AC 3 kV; 50 Hz; 1 min | Overvoltage category | II |
Pollution degree | 2 | Insulation type (input/analog output1/analog output 2/supply) | Reinforced insulation (safe isolation) |
Specifications may be subject to change without notice
