Product Model

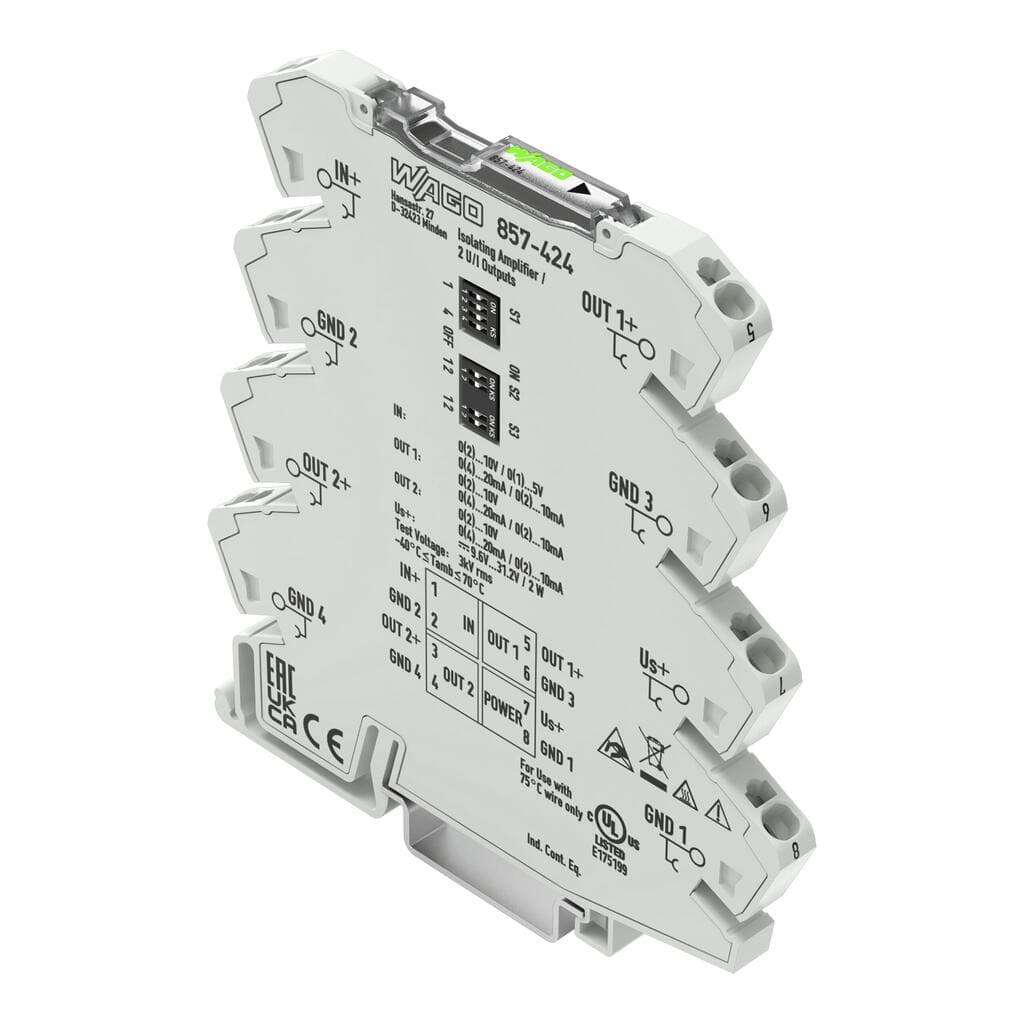

857-424
Selling Points
- 1Robust Signal Processing: Converts, amplifies, filters, and electrically isolates standard analog signals.
- 2Versatile Input/Output: Supports current and voltage input signals with configurable ranges (0-10 mA, 2-10 mA, etc.) and two analog outputs.
- 3Easy Installation: Uses Push-in CAGE CLAMP connections for quick and secure installation on DIN-35 rail.
- 4High Safety Standards: Meets EN 61010-1 standards with 3 kV test voltage and IP20 protection.
- 5Compact Design: 6 mm module width with a depth of 94 mm, suitable for space-constrained applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Use shielded signal lines!Only use shielded signal lines for analog input and output signals.Only then can you ensure that the accuracy and interference immunity specified for the device can be achieved, even in the presence of interference acting on the signal cable. | Rated voltage | 300V |
Measurement category per EN/UL 61010-2-030 | CAT II (input) | Protection type | IP20 |
Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Cable type | Shielded cable | Width | 6?mm?/ 0.236?inches |
Height | 94?mm?/ 3.701?inches | Depth from upper-edge of DIN-rail | 97.8?mm?/ 3.85?inches |
Mounting type | DIN-35 rail | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.013MJ |
Weight | 42g | Ambient temperature (operation) | -40 … +70 °C (Individual arrangement; ?40 … +50 °C (block arrangement)) |
Ambient temperature (storage) | -40 … +85 °C | Processing temperature | -25 … +50?°C |
Temperature range of connection cable | ≥ (Tambient+ 10 K) | Temperature range of connection cable (UL) | 75°C |
Relative humidity | 5 … 95?% (non-condensing) | Operating altitude (max.) | 2000m |
Conformity marking | CE | EMC immunity to interference | EN 61000-6-2; EN 61326-1; EN 50121-3-2 |
EMC emission of interference | EN 61000-6-3; EN 61326-1; EN 50121-3-2 | Standards/specifications | EN 61010-1 |
eCl@ss 10.0 | 27-21-01-20 | eCl@ss 9.0 | 27-21-01-20 |
ETIM 9.0 | EC002653 | ETIM 8.0 | EC002653 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | bag | Country of origin | DE |
GTIN | 4055143595476 | Customs tariff number | 8543704500 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 20ff4e13-c0c9-4a74-b2cf-15a295ca8e56 | SCIP notification number (Belgium) | 3ba48a62-5e30-4a87-8bab-6ef1cc940417 |
SCIP notification number (Bulgaria) | cc19b314-8dc8-4533-a619-bb5d1675c55d | SCIP notification number (Czech Republic) | 8c5e008b-53c5-482f-a3af-caacba45ef35 |
SCIP notification number (Denmark) | 975066ac-f476-426b-9150-59f316b9a26a | SCIP notification number (Finland) | c19ee770-a5c7-4a8a-aa92-286b93a6362d |
SCIP notification number (France) | 689b2ee7-0a3e-4f20-ad2c-38c625e92875 | SCIP notification number (Germany) | a9b66183-4d24-4f12-9fe9-cacbf2b0dc9a |
SCIP notification number (Hungary) | e1a182d3-453d-46fa-8dde-fca3c8f3c06b | SCIP notification number (Italy) | 68f65705-4017-4052-af20-4a8ab72a31ee |
SCIP notification number (Netherlands) | 626ace7d-afda-43d4-8eea-41c485284027 | SCIP notification number (Poland) | 5e15599a-8f67-4492-8627-517d77c7f6a2 |
SCIP notification number (Romania) | 8f949544-768f-44a9-a4e6-e617d0f0b22b | SCIP notification number (Sweden) | 444692de-f7c7-4ea3-bd3d-de5a8e18617e |
Configuration options | DIP switch | Input signal type | Voltage |
Input signal (V) | 0 … 5?V | Input signal (A) | 0 … 10?mA |
Input resistance (current input) | ≤?50?Ω | Input resistance (voltage input) | ≥?100?kΩ |
Input current (max.) | 50?mA | Input voltage (max.) | 30 V |
Output signal type | Voltage | Output signal (V) | 2 … 10?V |
Output signal (A) | 0 … 10?mA | Load impedance (voltage output) | ≥?2?kΩ (per channel) |
Load impedance (current output) | ≤?600?Ωper channel | Limit frequency | 100?Hz?/ 1?kHz (configurable via DIP switch) |
Step response (typ.) | 5.2?ms (100?Hz);?650?μs (1?kHz) | Transmission error (typ.) | ≤ 0.1 % of upper-range value |
Temperature coefficient | ≤ 0.01 %/K | Power supply type | 24 VDC (SELV) |
Nominal supply voltage U<sub>S</sub> | DC?24?V | Supply voltage range | -60 … +30?% |
Current consumption (default) | < 27 mA | Current consumption (max.) | < 250 mA (2 x Iout20 mA; Load impedance: 600 Ω; Us: 9.6 V) |
Test voltage (input/analog output 1/analog output 2/supply) | 3 kVAC; 50 … 60 Hz; 1 min | Overvoltage category | II |
Pollution degree | 2 | Insulation type (input/analog output1/analog output 2/supply) | Reinforced insulation (safe isolation) |
Specifications may be subject to change without notice
