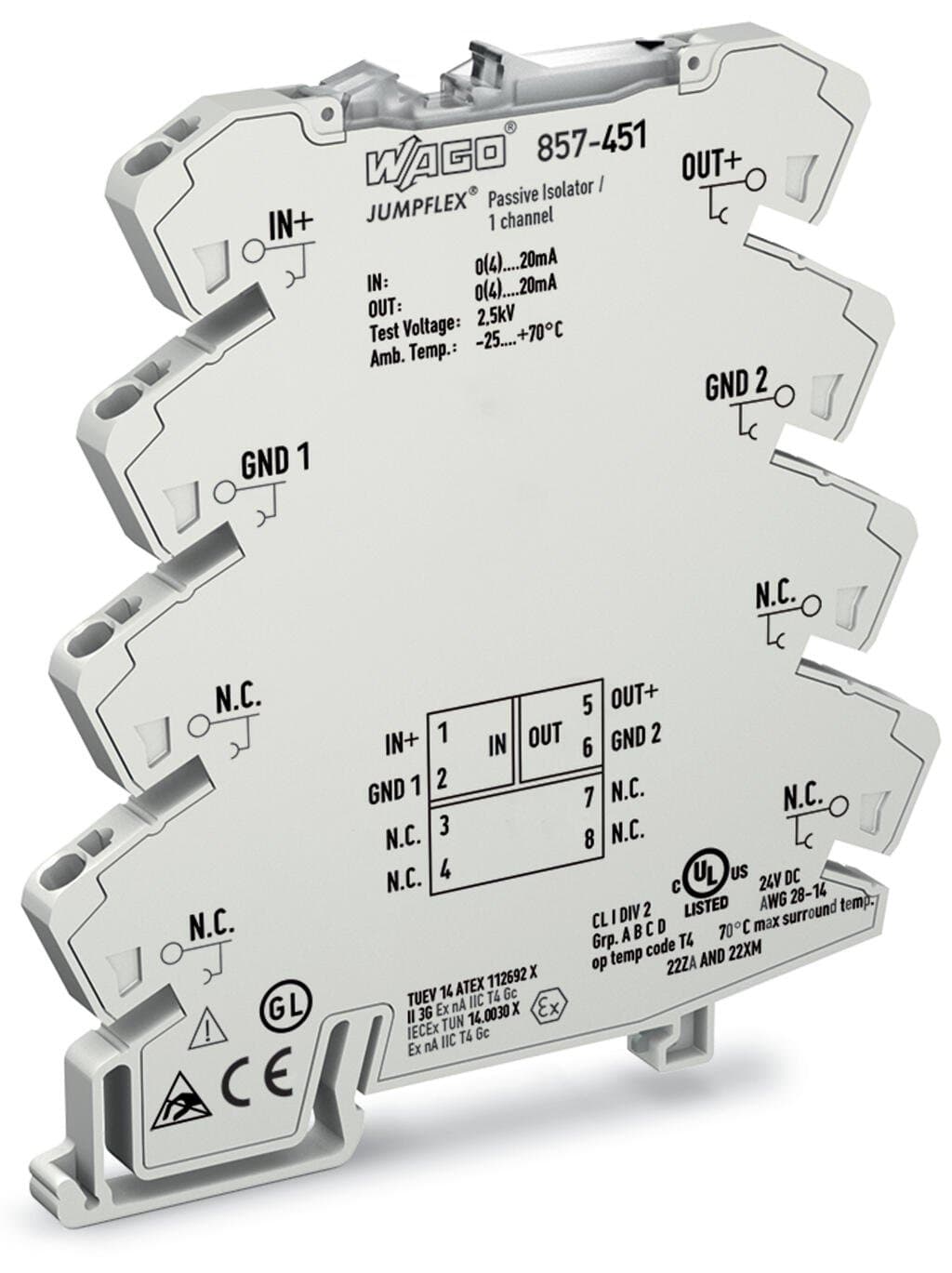

Product Model
857-451
Selling Points
- 1High Precision Signal Conditioning: The WAGO 857-451 JUMPFLEX Signal Conditioner ensures precise conversion, amplification, and filtering of standard analog signals.
- 2Electrical Isolation: Provides robust electrical isolation to protect against noise and interference, ensuring reliable signal transmission.
- 3Versatile Configuration: Configurable to meet various industrial needs with switchable limit frequency and calibrated measurement range switching.
- 4Compact Design: Housed in a compact 6 mm-wide package, maximizing panel space and reducing installation complexity.
- 5Durable Construction: Built with durable components and designed for extended temperature ranges, ensuring long-lasting performance in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Outputs must not be left open! | Note | Use shielded signal lines!Only use shielded signal lines for analog input and output signals.Only then can you ensure that the accuracy and interference immunity specified for the device can be achieved, even in the presence of interference acting on the signal cable. |
Rated voltage | 300V | Measurement category per EN/UL 61010-2-030 | CAT II (input) |
Overvoltage category | II | Pollution degree | 2 |
Protection type | IP20 | Connection technology | Push-in CAGE CLAMP? |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Cable type | Shielded cable |
Width | 6?mm?/ 0.236?inches | Height | 94?mm?/ 3.701?inches |
Depth from upper-edge of DIN-rail | 97.8?mm?/ 3.85?inches | Mounting type | DIN-35 rail |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.543MJ | Weight | 34.2g |
Ambient temperature (operation) | -25 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Temperature range of connection cable | ≥ (Tambient+ 15 K) | Temperature range of connection cable (UL) | 70°C |
Relative humidity | 5 … 95?% (no condensation permissible) | Operating altitude (max.) | 2000m |
Conformity marking | CE | EMC immunity to interference | EN 61000-6-2 |
EMC emission of interference | EN 61000-6-3 | Standards/specifications | EN 61010-1 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-21-01-20 |
eCl@ss 9.0 | 27-21-01-20 | ETIM 9.0 | EC002653 |
ETIM 8.0 | EC002653 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | Bag |
Country of origin | DE | GTIN | 4045454471323 |
Customs tariff number | 8543704500 | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | Configuration options | Pre-configured |
Input signal type | Current | Input signal (A) | 0 … 20?mA |
Input current (max.) | 40?mA | Input voltage (max.) | 20?V |
Response threshold | 200?μA | Output signal type | Current |
Output signal (A) | 0 … 20?mA | Load impedance (current output) | ≤?600?ΩTemperature range restrictions may occur. |
Voltage drop | ≤ 2.5 V at 20 mA (output) | Limit frequency | 100?Hz |
Step response (typ.) | 3.5?ms | Transmission error (typ.) | ≤ 0.1 % of upper-range value |
Load error | ≤ 0.05 % (of upper-range value; per 100 Ω load) | Temperature coefficient | ≤ 0.01 %/K |
Power supply type | Passive (via input) | Test voltage (input/output) | AC 3?kV;?50?Hz;?1?min |
Insulation type (input/analog output) | Reinforced insulation (safe isolation) |
Specifications may be subject to change without notice
