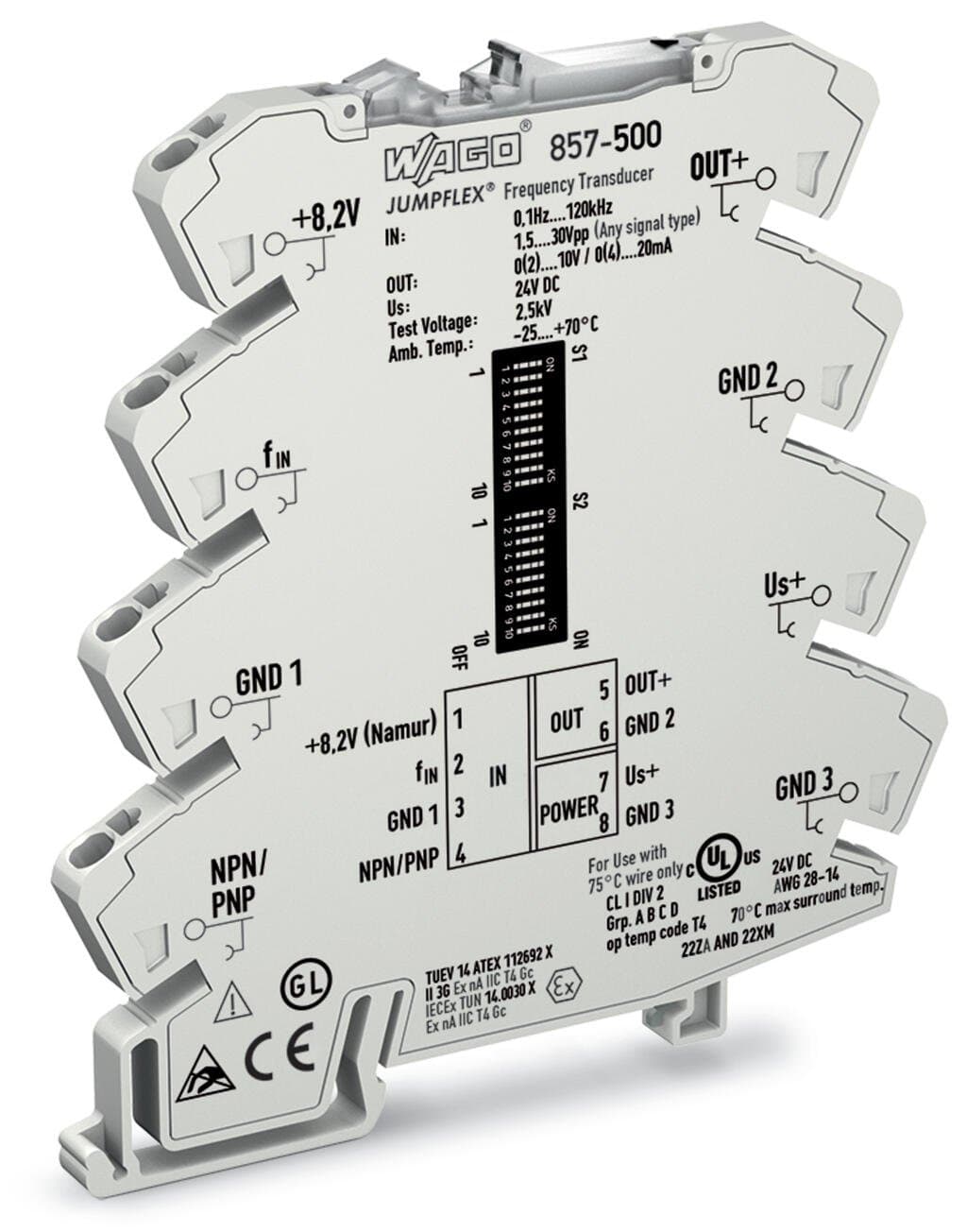

Product Model
857-500
Selling Points
- 1Supports multiple analog output types (0-10mA, 2-10mA, 0-20mA, 4-20mA, 0-5Vdc, 1-5Vdc, 0-10Vdc, 2-10Vdc).
- 2Easily configure via software or app for precise signal acquisition and processing.
- 3Detects frequency signals from 0.1 Hz to 120 kHz, including NAMUR, NPN, and PNP sensors.
- 4Provides safe 3-way isolation with a 2.5 kV test voltage, ensuring reliable signal transmission.
- 5Built for industrial use with a durable design, suitable for ambient temperatures from -25°C to +70°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Protection type | IP20 | Connection technology | Push-in CAGE CLAMP? |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Width | 6?mm?/ 0.236?inches |
Height | 94?mm?/ 3.701?inches | Depth from upper-edge of DIN-rail | 97.8?mm?/ 3.85?inches |
Mounting type | DIN-35 rail | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.418MJ |
Weight | 27.2g | Ambient temperature (operation) | -25 … +70 °C |
Ambient temperature (storage) | -40 … +85 °C | Relative humidity | 5 … 95?% (no condensation permissible) |
Operating altitude (max.) | 2000m | Conformity marking | CE |
EMC immunity to interference | EN 61000-6-2 | EMC emission of interference | EN 61000-6-4 |
Standards/specifications | EN 61373 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-21-01-28 | eCl@ss 9.0 | 27-21-01-28 |
ETIM 9.0 | EC002918 | ETIM 8.0 | EC002918 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | bag | Country of origin | DE |
GTIN | 4066966279931 | Customs tariff number | 8543704500 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 6d73a011-84c6-4de8-9203-d6ba0a4a08c8 | SCIP notification number (Belgium) | 6cd3b3c9-9745-4390-aa1a-ac93ba1da332 |
SCIP notification number (Bulgaria) | b01c1302-d9c2-438c-9217-730bfdfae0f7 | SCIP notification number (Czech Republic) | e8fd4d44-e267-4bd8-b97b-1fcb8247f4fd |
SCIP notification number (Denmark) | 4da2ee18-6d67-44d0-9743-ad112597583e | SCIP notification number (Finland) | d0fa661d-f8f9-44c9-878c-daf953ee7c3a |
SCIP notification number (France) | b6021de5-253c-45e8-9fd6-fea69eda5701 | SCIP notification number (Germany) | 07e3e21f-4fb2-4986-8866-7a14b9699500 |
SCIP notification number (Hungary) | 0606f24e-06bf-4ebc-a260-31eab59b8e88 | SCIP notification number (Italy) | 6fc50000-c684-468e-973f-e70a3fb7bf3b |
SCIP notification number (Netherlands) | 0de14568-55e9-47a7-877e-b1bb752ffa03 | SCIP notification number (Poland) | 37c59afc-3304-41ef-b57e-b4af0981cd37 |
SCIP notification number (Romania) | b23ce25d-4008-47ae-b458-9cacfbfae760 | SCIP notification number (Sweden) | 721e6b08-10d7-4ada-96af-c2849dd874af |
Configuration options | DIP switch | Input signal type | Frequency generators |
Sensor type 1 | frequency generator | Measurement range (frequency) 1 | 0.1?Hz … 120?kHz |
Pulse length 1 | ≥?1?μs | Measurement span 1 (min.) | 10Hz |
Signal level | 1.5 V; 10 V; 20 V (switchable) | Input voltage (max.) | ±?DC?31.2?V |
Signal form | Any | Coupling | AC/DC (adjustable; AC above 10 Hz) |
Input resistance | 10kΩ | Sensor type 2 | NAMUR sensor per DIN EN 50227 |
Measurement range (frequency) 2 | 0.1?Hz … 1?kHz | Pulse length 2 | ≥?500?μs |
Measurement span 2 (min.) | 10Hz | Sensor supply | DC?8.2?V |
Signal current (0) | ≤?1.2?mA | Signal current (1) | ≥?2.1?mA |
Hysteresis | 0.45mA | Short-circuit current (max.) | 14mA |
Short circuit monitoring | ≥?4.7?mA | Wire break monitoring | ≤?0.2?mA |
Input resistance 2 | ≤?600?Ω | Sensor type 3 | NPN/PNP transistor output without pull-up or pull-down resistor |
Measurement range (frequency) 3 | 0.1?Hz … 20?kHz | Pulse length 3 | ≥?25?μs |
Measurement span 3 (min.) | 100Hz | Open-circuit voltage | DC?5?V |
NPN residual voltage | ≤?1.5?V | PNP switching voltage | ≥?7.5?V (+ residual voltage UCEsat) |
Output signal type | Current | Output signal (V) | 0 … 5?V |
Output signal (A) | 0 … 10?mA | Load impedance (voltage output) | ≥?2?kΩ |
Load impedance (current output) | ≤?600?Ω | Conversion time | Peak-time measurement method (> 400 Hz): < 20 ms; Pulse time measurement method (< 400 Hz): < 200 μs + TCycle duration |
Transmission error (typ.) | ≤ 0.1 % of upper-range value | Temperature coefficient | ≤ 0.01 %/K |
Power supply type | 24?VDC | Nominal supply voltage U<sub>S</sub> | DC?24?V |
Supply voltage range | ±30?% | Current consumption at nominal supply voltage | ≤?40?mA |
Test voltage (input/output/supply) | AC 2.5?kV;?50?Hz;?1?min |
Specifications may be subject to change without notice
