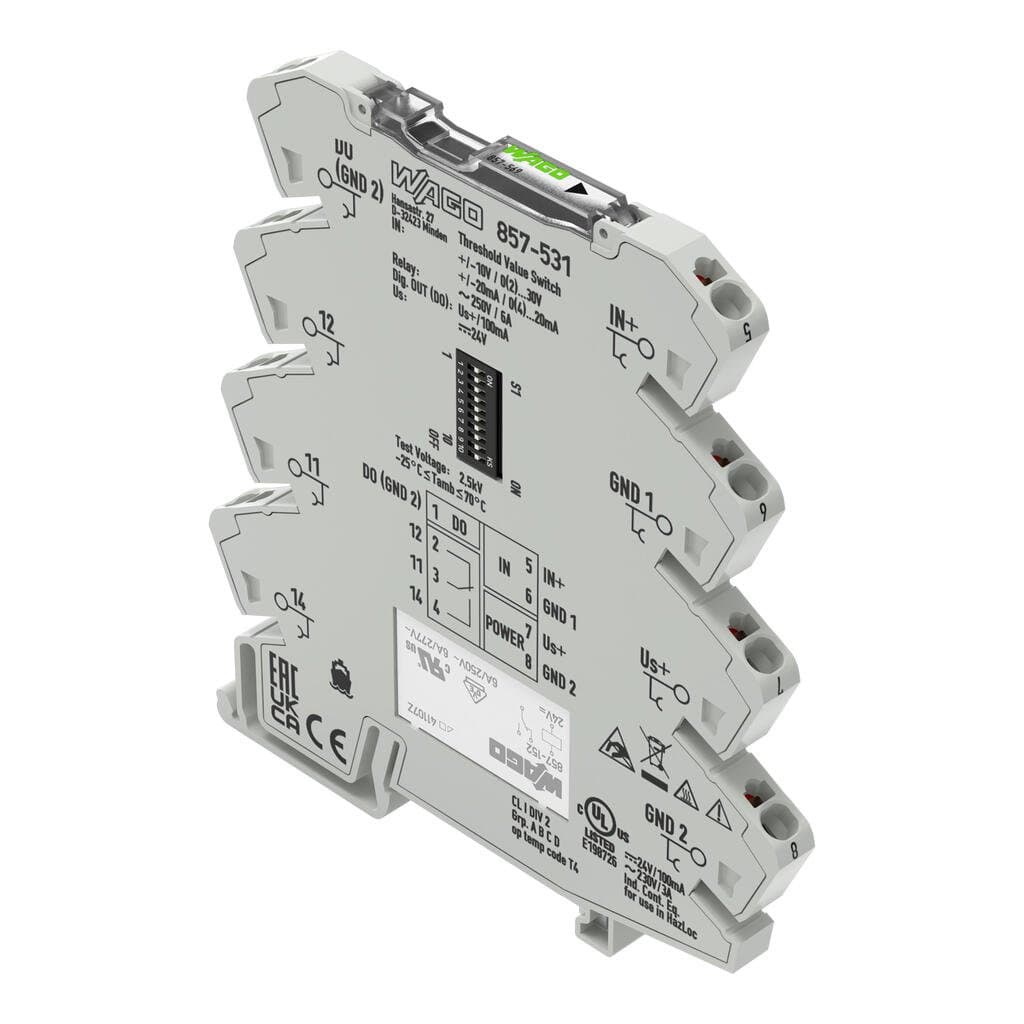

Product Model
857-531
Selling Points
- 1Handles up to 6 A continuous current and 20 A inrush current.
- 2Withstands 50 million switching operations at 23°C.
- 3Housed in a 6 mm-wide package, maximizing panel space.
- 4Supports AC/DC signals, including 250 VAC and 24 VDC.
- 5Includes a yellow LED status indicator and IP20 protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Input and digital output must be safely isolated from any hazardous live parts! | Note | Use shielded signal lines!Only use shielded signal lines for analog input and output signals.Only then can you ensure that the accuracy and interference immunity specified for the device can be achieved, even in the presence of interference acting on the signal cable.Additional setting options via WAGO Interface Configuration Software or WAGO Interface Configuration App |
Rated voltage | 300V | Protection type | IP20 |
Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 6?mm?/ 0.236?inches | Height | 94?mm?/ 3.701?inches |
Depth from upper-edge of DIN-rail | 97.8?mm?/ 3.85?inches | Mounting type | DIN-35 rail |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.013MJ | Weight | 38.6g |
Ambient temperature (operation) | -25 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Temperature range of connection cable | ≥ (Tambient+ 35 K) | Relative humidity | 5 … 85?% (no condensation permissible) |
Operating altitude (max.) | 2000m | Conformity marking | CE |
EMC immunity to interference | EN 61000-6-2; EN 61131-2; EN 61326-1; EN 50121-3-2 | EMC emission of interference | EN 61000-6-4; EN 61131-2; EN 61326-1; EN 50121-3-2 |
Standards/specifications | EN 61373 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-21-01-20 | eCl@ss 9.0 | 27-21-01-20 |
ETIM 9.0 | EC002653 | ETIM 8.0 | EC002653 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | bag | Country of origin | DE |
GTIN | 4045454885229 | Customs tariff number | 8543704500 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Bulgaria) | 70c9867b-9228-49b1-8871-0ff4880135a1 | SCIP notification number (Czech Republic) | 475d917f-e72d-4462-a17f-b1550a3b1393 |
Configuration options | DIP switch | Input signal type | Voltage |
Input signal (V) | ±10?V | Input signal (A) | ±20?mA |
Input resistance (current input) | ≤?200?Ω | Input resistance (voltage input) | ≥?100?kΩ |
Input current (max.) | 22?mA | Input voltage (max.) | 31?V |
Switching voltage (DO) max. | Supply voltage applied | Continuous current (DO) max. | 100?mA (no internal restriction) |
Number of switching thresholds (DO) | 1 (adjustable) | Number of changeover contacts | 1 |
Switching Voltage, Max. | AC?250?V | Switching power (resistive) max. | AC 1500 VA; DC (see load limit curve) |
Drop-out time (typ.) | 4ms | Number of switching thresholds (relay) | 1 or 2 (adjustable) |
Configurable rise/fall delay time (relay) | 0 … 30?s (via software) | Hysteresis | Adjustable via DIP switch or software |
Step response (typ.) | 16?ms | Transmission error (typ.) | ≤ 0.1 % of upper-range value |
Temperature coefficient | ≤ 0.01 %/K | Power supply type | 24 VDC (SELV) |
Nominal supply voltage U<sub>S</sub> | DC?24?V | Supply voltage range | ±30?% |
Current consumption at nominal supply voltage | ≤?25?mA?(+ IDO) | Test voltage (input/output/supply) | AC 3 kV; 50 Hz; 1 min |
Overvoltage category | II | Pollution degree | 2 |
Insulation type (input/digital output/supply) | Functional insulation | Insulation type (relay) | Reinforced insulation (safe isolation) |
Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
