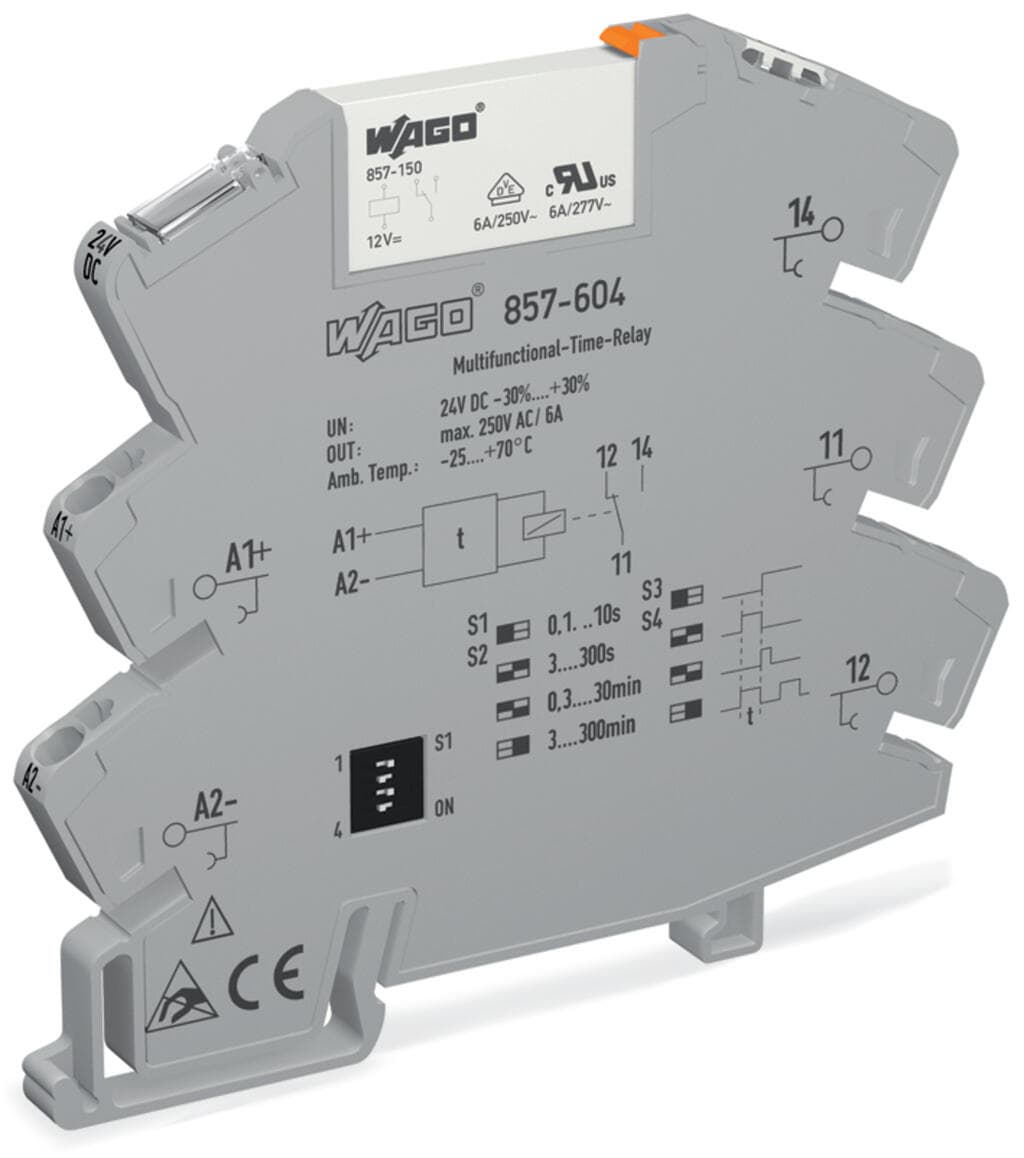

Product Model
857-604
Selling Points
- 1Adjustable timing from 0.1s to 300 minutes.
- 2Multifunctional with 4 time ranges and 4 functions.
- 3High mechanical life with 5 x 10^6 switching operations.
- 4Compatible with DIN-35 rail mounting for easy installation.
- 5Reliable operation with a yellow status indicator and SPDT configuration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated voltage | 250V | Rated surge voltage | 4kV |
Pollution degree | 2 | Dielectric strength (control/load circuit) (AC, 1?min) | 4?kVrms |
Dielectric strength (open contact) (AC, 1?min) | 1?kVrms | Protection type | IP20 |
Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 6?mm?/ 0.236?inches | Height | 94?mm?/ 3.701?inches |
Depth from upper-edge of DIN-rail | 81?mm?/ 3.189?inches | Mounting type | DIN-35 rail |
Note (material data) | Information on material specifications can be found here | Color | gray |
Insulation material (main housing) | Polyamide (PA66) | Material group | I |
Flammability class per UL94 | V0 | Fire load | 0.555MJ |
Weight | 24.9g | Ambient temperature (operation at U<sub>N</sub>) | -25 … +70 °C |
Ambient temperature (storage) | -40 … +70 °C | Processing temperature | -25 … +50?°C |
Relative humidity | 5 … 95?% (no condensation permissible) | Operating altitude (max.) | 2000m |
Standards/specifications | EN 61812-1 | WAGO Basic Relay | 857-150 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-37-16-05 |
eCl@ss 9.0 | 27-37-16-05 | ETIM 9.0 | EC001439 |
ETIM 8.0 | EC001439 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4050821565673 |
Customs tariff number | 8536490080 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | b89d2de2-ccd0-42b0-b35c-4b96ab7aad92 |
SCIP notification number (Belgium) | 147da2d8-6973-4cd5-98b4-0919d418e6bb | SCIP notification number (Bulgaria) | f0557247-ded0-43f1-8dfc-52b6fb04b895 |
SCIP notification number (Czech Republic) | f03e7d66-0086-4a55-aa3c-079dc9009419 | SCIP notification number (Denmark) | d0287920-775f-46e8-a54e-649519e2944e |
SCIP notification number (Finland) | e9c4fe20-7ab1-4d2d-984e-a87d9da40b48 | SCIP notification number (France) | eeee99bd-d400-48e5-a852-f9505e8f3063 |
SCIP notification number (Germany) | 1588f722-404a-42ea-83f9-5e8c18d96bbd | SCIP notification number (Hungary) | 41f66463-47dd-47ca-b11d-726c111e1ec9 |
SCIP notification number (Italy) | b75d085e-cc14-4164-9e7d-8b6408f61f94 | SCIP notification number (Netherlands) | c0934558-ace5-467e-847e-530badbc9afd |
SCIP notification number (Poland) | 0b77ff1e-b0e7-4adf-9090-a657721b7e5a | SCIP notification number (Romania) | 6f234623-3bca-41bc-839c-8ac7c1eefb24 |
SCIP notification number (Sweden) | 04efb0b3-a642-4d0d-a88b-bdc6e3bbc9a8 | Nominal input voltage U<sub>N</sub> | DC?24?V |
Input voltage range | ±30?% | Nominal input current at U<sub>N</sub> | 18?mA |
Time range | Adjustable: 0.1 … 10?s;?3 … 300?s;?0.3 … 30?min;?3 … 300?min | Reset time | 50ms |
Repeat accuracy | 1?% | Minimum pulse length (control input) | 10ms |
Functions | On-delay | Number of changeover contacts | 1 |
Contact material (relay) | AgSnO2 | Limiting continuous current | 6?A |
Inrush current (resistive) max. | (AC) 20?A?/ 0.02?s | Switching Voltage, Max. | AC?250?V |
Switching power (resistive) max. | AC?1500?VA;?DC (see load limit curve) | Switching capacity | AC-15:?3?A?/ AC?250?V;?DC-13:?2?A?/ DC?24?V |
Recommended minimum load | 10?V?/ 10?mA;?24?V?/ 1?mA | Pull-in time (typ.) | 15ms |
Drop-out time (typ.) | 25ms | Bounce time (typ.) | 3.5ms |
Electrical life (NO; resistive load; 23?°C) | 50?x 103 switching operations | Mechanical life | 5?x 10? switching operations |
Short circuit protection (load circuit) | 6.3 A; Slow (T); testing based on EN 61812-1 with a short-circuit current of 100 ADC | Status indicator | Yellow LED |
