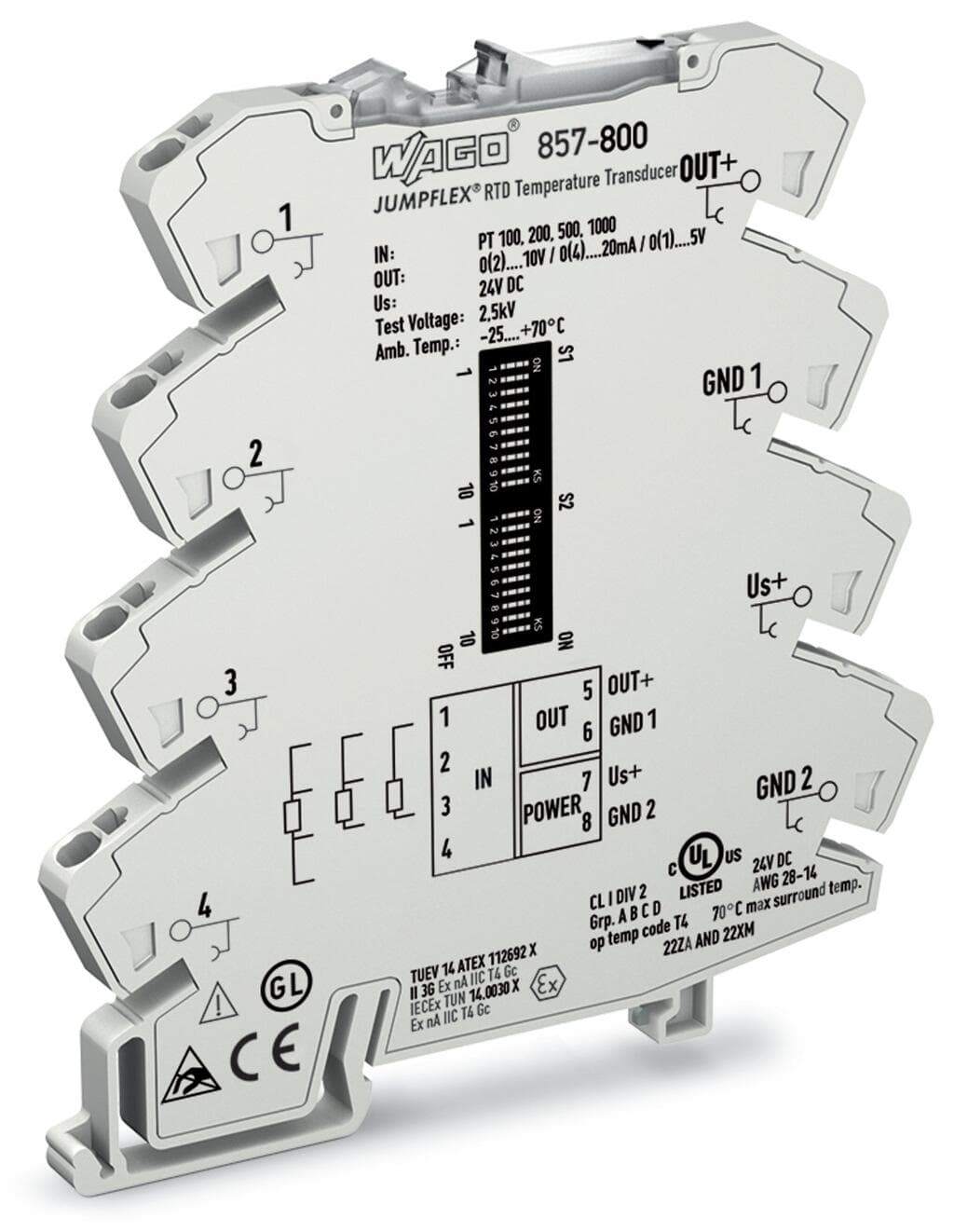

Product Model
857-800
Selling Points
- 1Configurable for Pt100, Pt200, Pt500, and Pt1000 sensors.
- 2Accurate temperature measurement with resistance values 0...1 kOhm and 0...5 kOhm.
- 3High-quality industrial automation solution.
- 4Compact and reliable design for various applications.
- 5Easy integration with existing systems for seamless operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Protection type | IP20 | Connection technology | Push-in CAGE CLAMP? |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Width | 6?mm?/ 0.236?inches |
Height | 94?mm?/ 3.701?inches | Depth from upper-edge of DIN-rail | 97.8?mm?/ 3.85?inches |
Mounting type | DIN-35 rail | Color | light gray |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.363MJ | Weight | 35.3g |
Ambient temperature (operation) | -25 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Relative humidity | 5 … 95?% (no condensation permissible) | Operating altitude (max.) | 2000m |
Conformity marking | CE | EMC immunity to interference | EN 61000-6-2 |
EMC emission of interference | EN 61000-6-4 | Standards/specifications | DNV |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-21-01-29 |
eCl@ss 9.0 | 27-20-02-06 | ETIM 9.0 | EC002919 |
ETIM 8.0 | EC002919 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4045454470128 |
Customs tariff number | 8543704500 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 18d0a87d-bb35-4b42-bba2-e1971d4739b1 |
SCIP notification number (Belgium) | 1f2fe9d0-536a-4644-aa00-574d7a086709 | SCIP notification number (Bulgaria) | 6eb8b90b-e755-4cdf-9d9f-85f513b2f530 |
SCIP notification number (Czech Republic) | 03108352-4dba-454f-a6f1-d4e09f8cc18d | SCIP notification number (Denmark) | 26a58e4c-5504-4e78-9b49-eb746565ddd1 |
SCIP notification number (Finland) | 4e48f299-96d8-4f28-9c0f-d3b571642d51 | SCIP notification number (France) | 13292952-78df-4879-8c6e-21dcd8da9daf |
SCIP notification number (Germany) | 4f8414b3-3970-470e-8a6d-e6b490c7716a | SCIP notification number (Hungary) | c7c0edf4-0baa-4704-bf79-5e09253a732b |
SCIP notification number (Italy) | 63af3c96-c94e-457c-94e9-0491f5c3e31f | SCIP notification number (Netherlands) | fe840f60-0242-44fe-9a9d-212ece7599cf |
SCIP notification number (Poland) | ea6a54b1-1413-4f99-b8a2-510158b8a5d9 | SCIP notification number (Romania) | 202d51cb-6c22-4e4c-a67c-2542b8e82bd1 |
SCIP notification number (Sweden) | 95ed46b3-c0f7-472f-987f-304709c7024f | Configuration options | DIP switch |
Input signal type | Resistance | Sensor types (RTD) | Pt100 |
Sensor connection | 2-wire; 3-wire; 4-wire (switchable) | Sensor power supply (RTD) max. | ≤?0.5?mA |
Temperature measurement range (RTD) | -200 … 850 °C | Input range (resistor) | 0 … 1?kΩ;?0 … 4.5?kΩ |
Output signal type | Current | Output signal (V) | 0 … 5?V |
Output signal (A) | 0 … 10?mA | Load impedance (voltage output) | ≥?2?kΩ |
Load impedance (current output) | ≤?600?Ω | Step response (typ.) | 180?ms (2-wire);?360?ms (3-wire) |
Transmission error (typ.) | ≤ 0.1 % at full measurement span | Transmission error for the set measurement range | ≤ ((10 K/set measurement range [K]) + 0.1) % |
Temperature coefficient | ≤ 0.02 %/K | Power supply type | 24?VDC |
Nominal supply voltage U<sub>S</sub> | DC?24?V | Supply voltage range | ±30?% |
Current consumption at nominal supply voltage | ≤?40?mA | Test voltage (input/output/supply) | AC 2.5?kV;?50?Hz;?1?min |
