Product Model

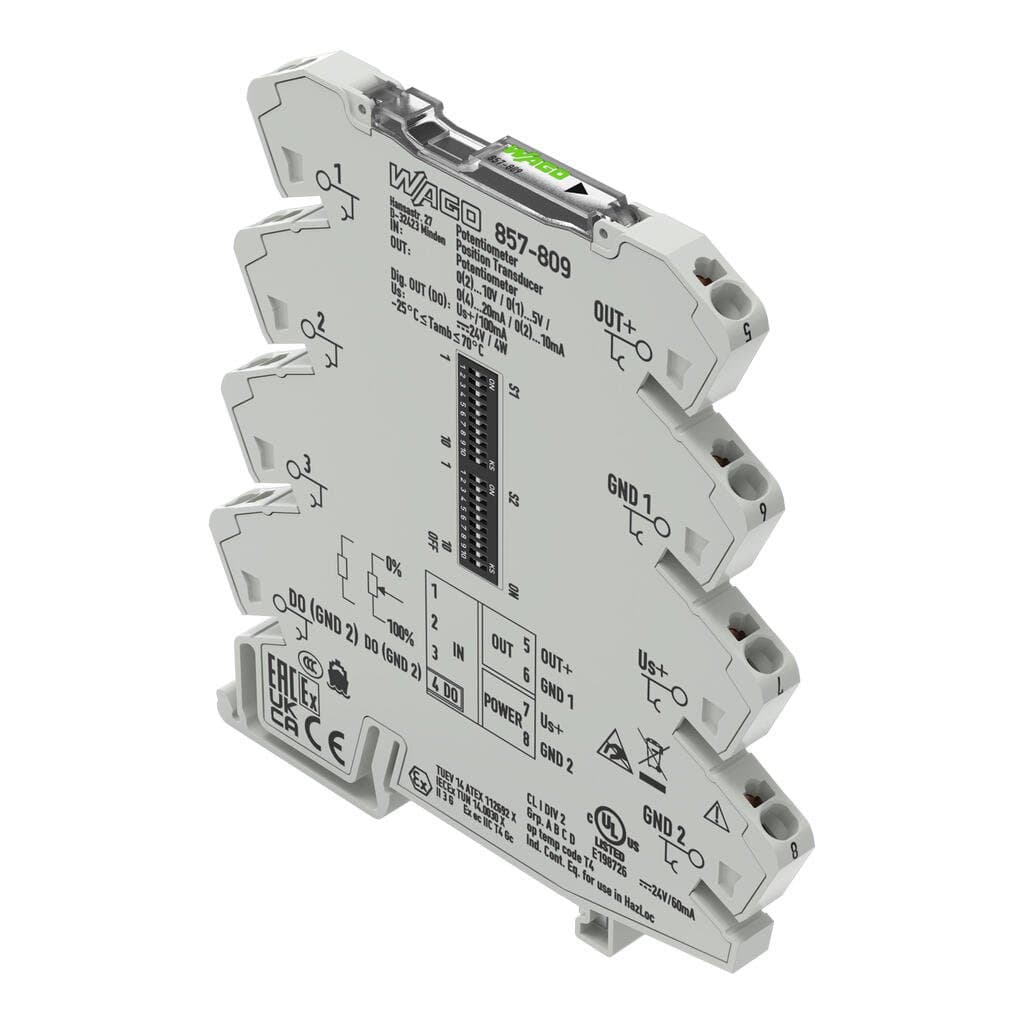

857-809
Selling Points
- 1Configurable via Software and DIP Switch: Easily set up the device using a PC or DIP switch for precise configuration.
- 2Safe 3-Way Isolation: Ensures safe operation with a 2.5 kV test voltage per EN 61140, providing reliable protection.
- 3Versatile Output Options: Supports multiple analog output ranges (0-10mA, 2-10mA, 0-20mA, 4-20mA, 0-5Vdc, 1-5Vdc, 0-10Vdc, 2-10Vdc).
- 4Easy Installation: Features Push-in CAGE CLAMP spring connections for quick installation on a DIN-35 rail (6mm width).
- 5Wide Temperature Range: Operates in ambient temperatures from -25°C to +70°C, ensuring durability in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Input and output must be safely isolated from any hazardous live parts! | Note | Use shielded signal lines!Only use shielded signal lines for analog input and output signals.Only then can you ensure that the accuracy and interference immunity specified for the device can be achieved, even in the presence of interference acting on the signal cable.Additional setting options via WAGO Interface Configuration Software or WAGO Interface Configuration App |
Rated voltage | 300V | Overvoltage category | II |
Pollution degree | 2 | Protection type | IP20 |
Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 6?mm?/ 0.236?inches | Height | 94?mm?/ 3.701?inches |
Depth from upper-edge of DIN-rail | 97.8?mm?/ 3.85?inches | Mounting type | DIN-35 rail |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.418MJ | Weight | 36.6g |
Ambient temperature (operation) | -25 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Temperature range of connection cable | ≥ (Tambient+ 9 K) | Relative humidity | 5 … 95?% (no condensation permissible) |
Operating altitude (max.) | 2000m | Conformity marking | CE |
EMC immunity to interference | EN 61000-6-2 | EMC emission of interference | EN 61000-6-4 |
Standards/specifications | DNV | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-21-01-20 | eCl@ss 9.0 | 27-21-01-20 |
ETIM 9.0 | EC002653 | ETIM 8.0 | EC002653 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | bag | Country of origin | DE |
GTIN | 4050821480761 | Customs tariff number | 8543704500 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Bulgaria) | 852b910c-257c-472c-a61b-3693d1584e48 | SCIP notification number (Czech Republic) | ca15a22b-2053-43e4-b99b-5ae3cefb73bd |
Configuration options | Push/slide switch | Input signal type | Potentiometer |
Input range (resistor) | 0 … 100 kΩ | Input range (potentiometer) | 100?Ω … 100?kΩ |
Potentiometer supply voltage (max.) | 2.5V | Measurement span (min.) | 100Ω |
Output signal type | Current | Output signal (V) | 0 … 5?V |
Output signal (A) | 0 … 10?mA | Load impedance (voltage output) | ≥?2?kΩ |
Load impedance (current output) | ≤?600?Ω | Switching voltage (DO) max. | Supply voltage applied |
Continuous current (DO) max. | 100?mA (no internal restriction) | Number of switching thresholds (DO) | 2 (adjustable switching points) |
Step response (typ.) | 32?ms | Transmission error (typ.) | ≤ 0.1 % of upper-range value |
Temperature coefficient | ≤ 0.01 %/K | Power supply type | 24 VDC (SELV) |
Nominal supply voltage U<sub>S</sub> | DC?24?V | Supply voltage range | ±30?% |
Current consumption at nominal supply voltage | ≤?50?mA?(+ IDO) | Power consumption without PoE | 4W |
Power loss (max.) P<sub>l (max.)</sub> | 0.9?W | Test voltage (input/output/supply) | AC 2?kV;?50?Hz;?1?min |
Insulation type (input/analog output/supply) | Functional insulation |
Specifications may be subject to change without notice
