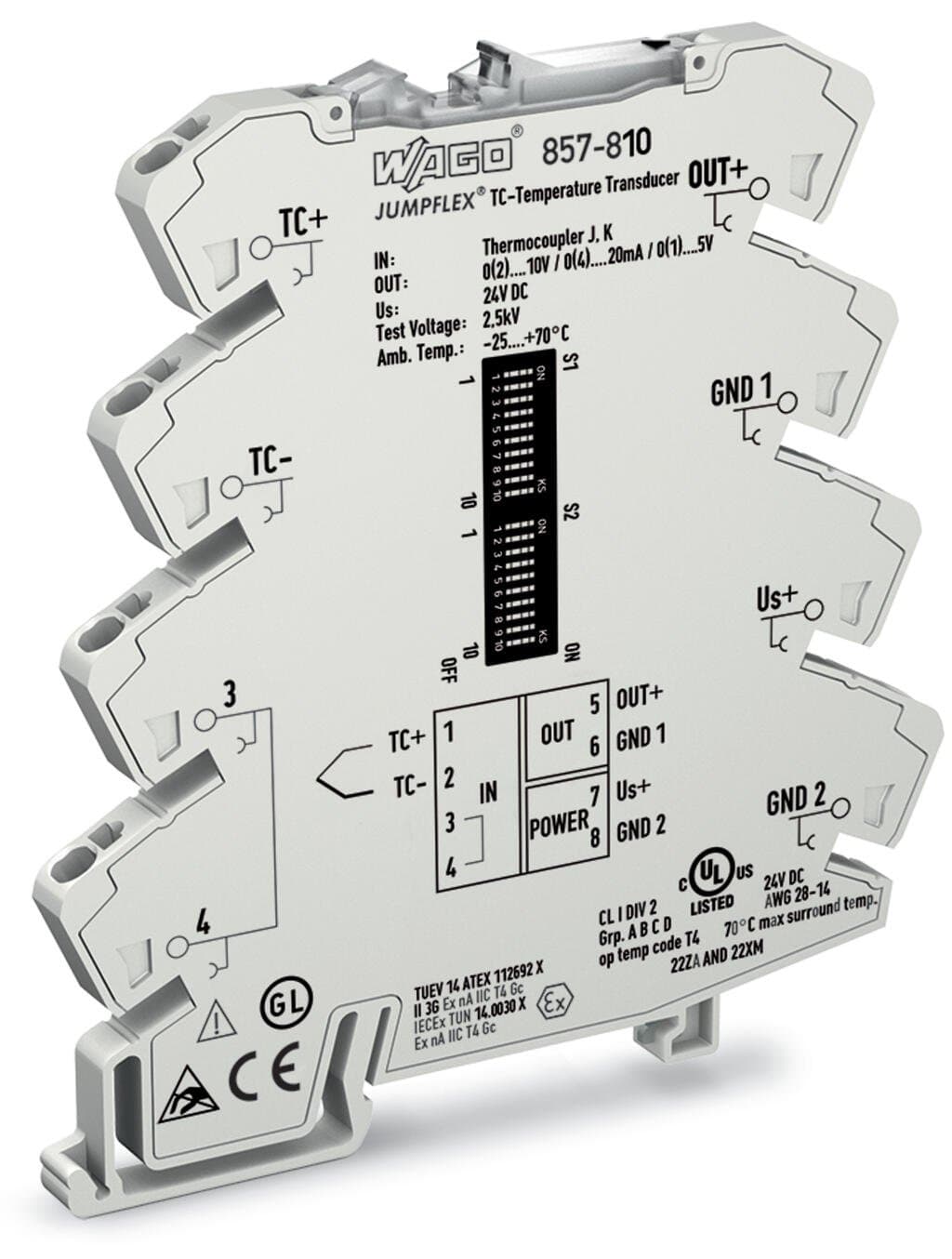

Product Model
857-810
Selling Points
- 1Temperature Signal Conditioning: Condition temperature signals from type J and K thermocouples.
- 2DIN Rail Mounting: Easily mount on 35 mm DIN rail for compact installations.
- 3Adjustable Output Signals: Output signals in current (4-20 mA) and voltage (0-5V, 0-10V) formats.
- 4Cold Junction Compensation: Enable or disable cold junction compensation for precise measurements.
- 5Safe Isolation: Ensure safe 3-way isolation with a test voltage of 2.5kV to EN 61140 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Protection type | IP20 | Connection technology | Push-in CAGE CLAMP? |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Width | 6?mm?/ 0.236?inches |
Height | 94?mm?/ 3.701?inches | Depth from upper-edge of DIN-rail | 97.8?mm?/ 3.85?inches |
Mounting type | DIN-35 rail | Color | light gray |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.365MJ | Weight | 35.5g |
Ambient temperature (operation) | -25 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Relative humidity | 5 … 95?% (no condensation permissible) | Operating altitude (max.) | 2000m |
Conformity marking | CE | EMC immunity to interference | EN 61000-6-2 |
EMC emission of interference | EN 61000-6-4 | Standards/specifications | DNV |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-21-01-29 |
eCl@ss 9.0 | 27-20-02-06 | ETIM 9.0 | EC002919 |
ETIM 8.0 | EC002919 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4045454470135 |
Customs tariff number | 8543704500 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 694a8dfe-c43e-47d6-ad52-996c633f9655 |
SCIP notification number (Belgium) | 296545de-031d-4d5e-a5a5-dfddc192cdf7 | SCIP notification number (Bulgaria) | c1b7b523-92f8-47da-850c-8c4c882c490d |
SCIP notification number (Czech Republic) | e269576b-40b6-4b8e-a730-b20f6c4642ba | SCIP notification number (Denmark) | adf6ed2d-abff-4125-bf6c-c121e8fca395 |
SCIP notification number (Finland) | 5021c540-639b-4fdb-88aa-4c5ba154c53e | SCIP notification number (France) | ca2c2545-875b-4634-b7a2-589c69c41520 |
SCIP notification number (Germany) | ba87344e-9f0c-4f92-8d9b-a3c90deeb4cc | SCIP notification number (Hungary) | 62c2d5b3-a430-476c-810d-c2bfb1e4d555 |
SCIP notification number (Italy) | 7dccf9c7-af48-427e-8cf4-62ec1cfc9737 | SCIP notification number (Netherlands) | 9d300dab-2d6b-4501-8a24-bc26ad68f589 |
SCIP notification number (Poland) | 0dd42d60-44a1-435a-b52e-47b29f5d6be4 | SCIP notification number (Romania) | 64b5849a-efc7-4fa8-9d9c-d6e400e9cc32 |
SCIP notification number (Sweden) | be28f513-6c89-4361-b6f3-1dba6122eca2 | Configuration options | DIP switch |
Input signal type | TC sensors | Sensor types (TC) | Type J |
Temperature measurement range (TC) | -200 … 1200?°C (Type J);?-200 … 1350?°C (Type K) | Measurement span (TC) min. | 100K |
Cold junction compensation | On/Off (Default: On) | Cold junction error | 3 K (typ. 2 K ) |
Output signal type | Current | Output signal (V) | 0 … 5?V |
Output signal (A) | 0 … 10?mA | Load impedance (voltage output) | ≥?2?kΩ |
Load impedance (current output) | ≤?600?Ω | Step response (typ.) | 60?ms (cold junction compensation (Off));?120?ms (Cold junction compensation (ON)) |
Transmission error (typ.) | ≤ 0.1% at max. measurement span (type J, K) | Transmission error for the set measurement range | ≤?(150?K/set measurement range [K])?% |
Temperature coefficient | ≤ 0.04 %/K | Power supply type | 24?VDC |
Nominal supply voltage U<sub>S</sub> | DC?24?V | Supply voltage range | ±30?% |
Current consumption at nominal supply voltage | ≤?40?mA | Test voltage (input/output/supply) | AC 2.5?kV;?50?Hz;?1?min |
Specifications may be subject to change without notice
