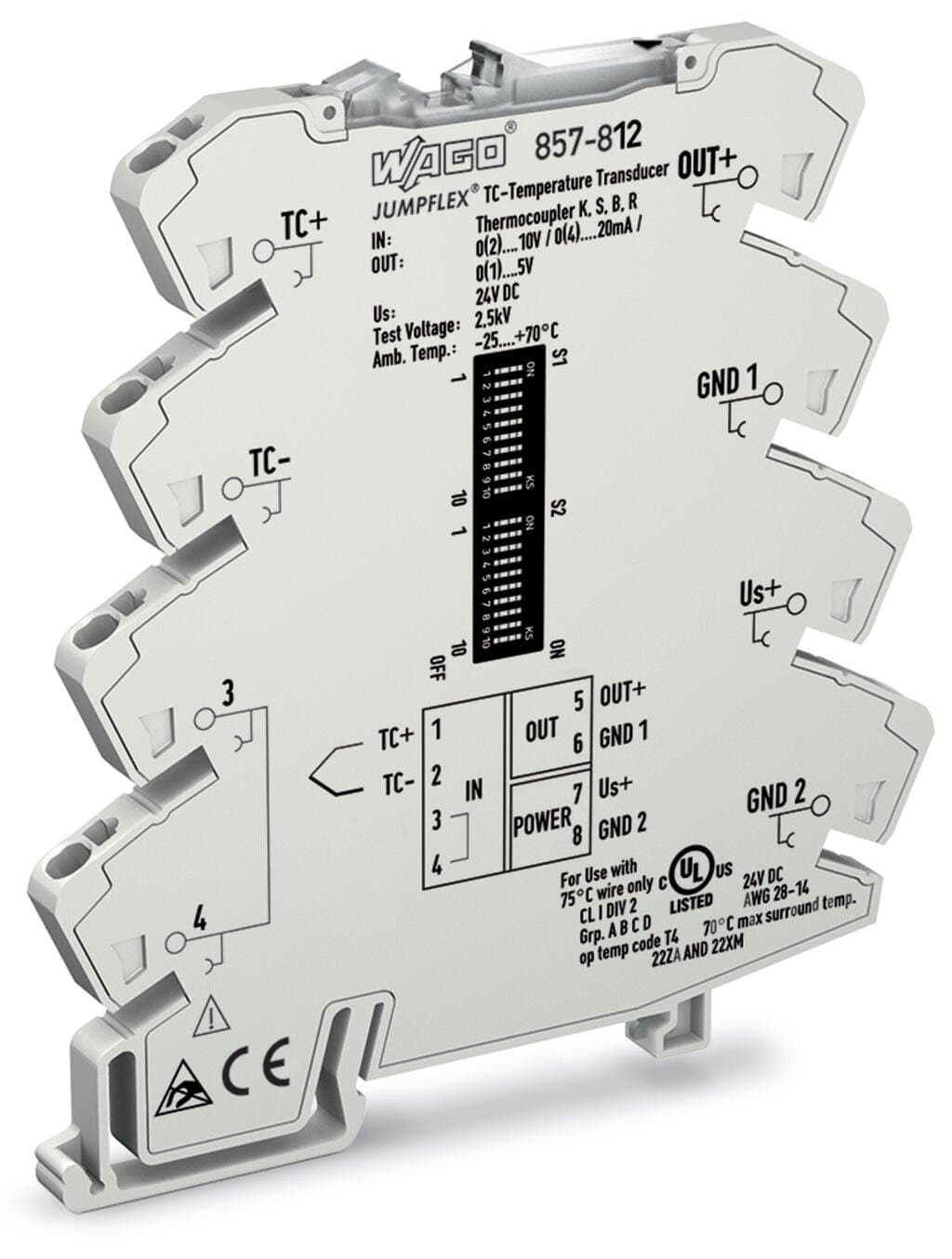

Product Model
857-812
Selling Points
- 1Versatile Configuration: Easily configure via DIP switches for various measurement ranges.
- 2Safe Isolation: Ensures safe 3-way isolation with a 2.5 kV test voltage per EN 61140.
- 3Multiple Outputs: Offers multiple analog output configurations (0-10mA, 2-10mA, etc.).
- 4Wide Temperature Range: Operates in an ambient temperature range of -25°C to +70°C.
- 5Durable Design: Compact 6mm module width with Push-in CAGE CLAMP connections for easy installation on DIN rail.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Protection type | IP20 | Connection technology | Push-in CAGE CLAMP? |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Width | 6?mm?/ 0.236?inches |
Height | 94?mm?/ 3.701?inches | Depth from upper-edge of DIN-rail | 97.8?mm?/ 3.85?inches |
Mounting type | DIN-35 rail | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.365MJ |
Weight | 35.7g | Ambient temperature (operation) | -25 … +70 °C |
Ambient temperature (storage) | -40 … +85 °C | Relative humidity | 5 … 95?% (no condensation permissible) |
Operating altitude (max.) | 2000m | Conformity marking | CE |
EMC immunity to interference | EN 61000-6-2 | EMC emission of interference | EN 61000-6-4 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-21-01-29 |
eCl@ss 9.0 | 27-21-01-29 | ETIM 9.0 | EC002919 |
ETIM 8.0 | EC002919 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4050821255291 |
Customs tariff number | 8543704500 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Belgium) | 63246099-99c4-43a6-adfd-84430887f462 |
SCIP notification number (Bulgaria) | ea9a922d-f667-4a28-ba1e-c99ddf8dd7e8 | SCIP notification number (Czech Republic) | 3b1b251c-a971-41aa-9196-9ca50fd3018f |
SCIP notification number (Denmark) | 8ef75f62-a4f0-4596-82a0-b4e0cc314863 | SCIP notification number (Finland) | 07b2346b-c450-4ded-aea1-546be2e4f794 |
SCIP notification number (France) | ba213564-10e1-4d25-aad4-fd5d5dc2fae7 | SCIP notification number (Germany) | 574b5988-3161-4ef7-be2b-3d31e6c52d56 |
SCIP notification number (Hungary) | fb09612d-0901-430e-92ab-7b4c0d594307 | SCIP notification number (Italy) | 286c091b-d3d4-4e26-b2bc-770b2ca8b326 |
SCIP notification number (Netherlands) | 0df3ea2a-7dc3-4942-ab8e-065df1295860 | SCIP notification number (Romania) | 32bb11c8-e3ce-4868-b1db-f95c88597e37 |
SCIP notification number (Sweden) | 9fee1f9a-d1d7-47cd-9f94-9f08e1d83ded | Configuration options | DIP switch |
Input signal type | TC sensors | Sensor types (TC) | Type K |
Temperature measurement range (TC) | 0 … 1200?°C (Type K);?0 … 1600?°C (Type S);?600 … 1800?°C (Type B);?0 … 1600?°C (Type R) | Cold junction compensation | On/Off (Default: On) |
Cold junction error | 3 K (typ. 2 K ) | Output signal type | Current |
Output signal (V) | 0 … 5?V | Output signal (A) | 0 … 10?mA |
Load impedance (voltage output) | ≥?2?kΩ | Load impedance (current output) | ≤?600?Ω |
Step response (typ.) | 60?ms (cold junction compensation (Off));?120?ms (Cold junction compensation (ON)) | Transmission error (typ.) | ≤ 0.1 % at full measurement span |
Transmission error for the set measurement range | ≤?(150?K/set measurement range [K])?% | Temperature coefficient | ≤ 0.04 %/K |
Power supply type | 24?VDC | Nominal supply voltage U<sub>S</sub> | DC?24?V |
Supply voltage range | ±30?% | Current consumption at nominal supply voltage | ≤?40?mA |
Test voltage (input/output/supply) | AC 2.5?kV;?50?Hz;?1?min |
Specifications may be subject to change without notice
