Product Model

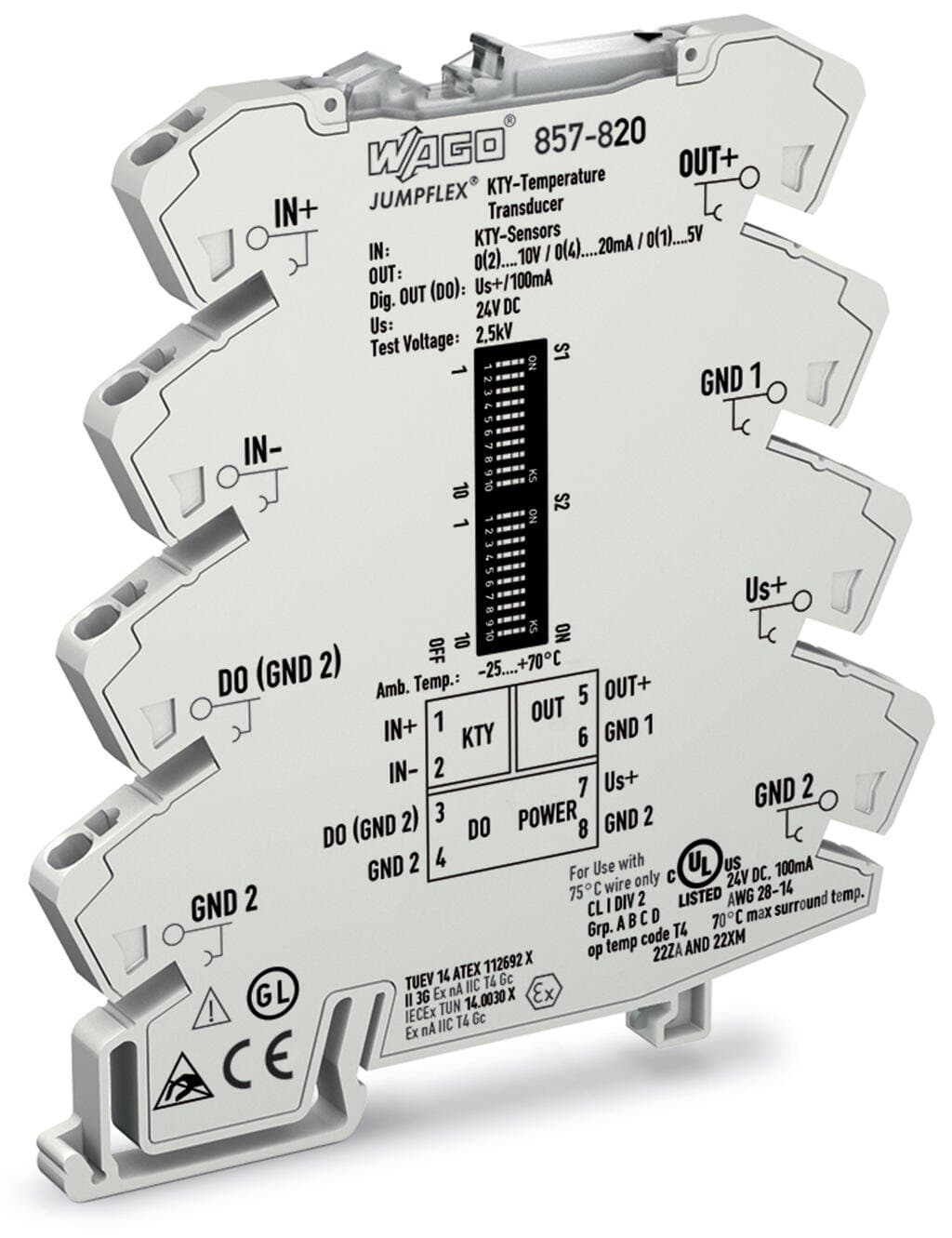

857-820
Selling Points
- 1Configurable via DIP Switch: Easily adjust settings to suit various temperature measurement needs.
- 2Wide Compatibility: Supports all standard KTY sensors for broad application flexibility.
- 3Robust IP20 Protection: Ensures reliable operation in harsh industrial environments.
- 4Analog Output Options: Converts temperature signals to standard analog signals (0-10mA, 2-10mA, 0-20mA, 4-20mA, 0-5Vdc, 1-5Vdc, 0-10Vdc).
- 5Compact Design: Mounts easily on DIN-35 rail with a width of just 6mm, making it space-efficient in control panels.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Protection type | IP20 | Connection technology | Push-in CAGE CLAMP? |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Width | 6?mm?/ 0.236?inches |
Height | 94?mm?/ 3.701?inches | Depth from upper-edge of DIN-rail | 97.8?mm?/ 3.85?inches |
Mounting type | DIN-35 rail | Color | light gray |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.418MJ | Weight | 35.5g |
Ambient temperature (operation) | -25 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Relative humidity | 5 … 95?% (no condensation permissible) | Operating altitude (max.) | 2000m |
Conformity marking | CE | EMC immunity to interference | EN 61000-6-2 |
EMC emission of interference | EN 61000-6-4 | Standards/specifications | DNV |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-21-01-29 |
eCl@ss 9.0 | 27-21-01-20 | ETIM 9.0 | EC002919 |
ETIM 8.0 | EC002919 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4050821053002 |
Customs tariff number | 8543704500 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 34941bc9-8e48-46c9-a7b2-4825f5329246 |
SCIP notification number (Belgium) | 75a377f0-35a3-4b2e-b165-bce77bd274cc | SCIP notification number (Bulgaria) | 5cf1a5be-e025-43b0-825a-1b18a8f7f565 |
SCIP notification number (Czech Republic) | bdb21d8c-e1b4-4b2d-9bfa-0c6300dbc530 | SCIP notification number (Denmark) | 095db8cb-41af-4e82-af2d-44fdbf1dd68e |
SCIP notification number (Finland) | cc1af7e7-ac8e-4237-9b82-3be1333c8700 | SCIP notification number (France) | 2c3fa22b-66cf-465e-924f-b8524df6b7d3 |
SCIP notification number (Germany) | 4e95591a-ceaf-4f18-a2eb-555acfd521ee | SCIP notification number (Hungary) | 40a070aa-3e73-4134-802a-93e9ee82407c |
SCIP notification number (Italy) | 8848a2d7-75d7-4e9e-9370-a97d25b26a7c | SCIP notification number (Netherlands) | e1443cd2-bc18-43af-bdba-091fbfcb17ce |
SCIP notification number (Poland) | f67dea86-39d8-4962-9e6f-233cd0e10f47 | SCIP notification number (Romania) | 0d661d8e-e744-421d-ab87-6acc1b302ed5 |
SCIP notification number (Sweden) | 9854cc75-067c-44e6-9b84-fc9b27e877de | Configuration options | DIP switch |
Input signal type | KTY sensors | Input voltage (max.) | ±30?VDC |
Sensor types (KTY) | KTY81-110 | Sensor connection | 2-wire |
Output signal type | Current | Output signal (V) | 0 … 5?V |
Output signal (A) | 0 … 10?mA | Load impedance (voltage output) | ≥?2?kΩ |
Load impedance (current output) | ≤?600?Ω | Switching voltage (DO) max. | Supply voltage applied |
Continuous current (DO) max. | 100?mA (no internal restriction) | Step response (typ.) | 50?ms |
Transmission error (typ.) | ≤ 0.1 % of upper-range value | Power supply type | 24?VDC |
Nominal supply voltage U<sub>S</sub> | DC?24?V | Supply voltage range | ±30?% |
Current consumption at nominal supply voltage | ≤?40?mA?(+ IDO) | Test voltage (input/output/supply) | AC 2.5?kV;?50?Hz;?1?min |
