Product Model
857-980
Selling Points

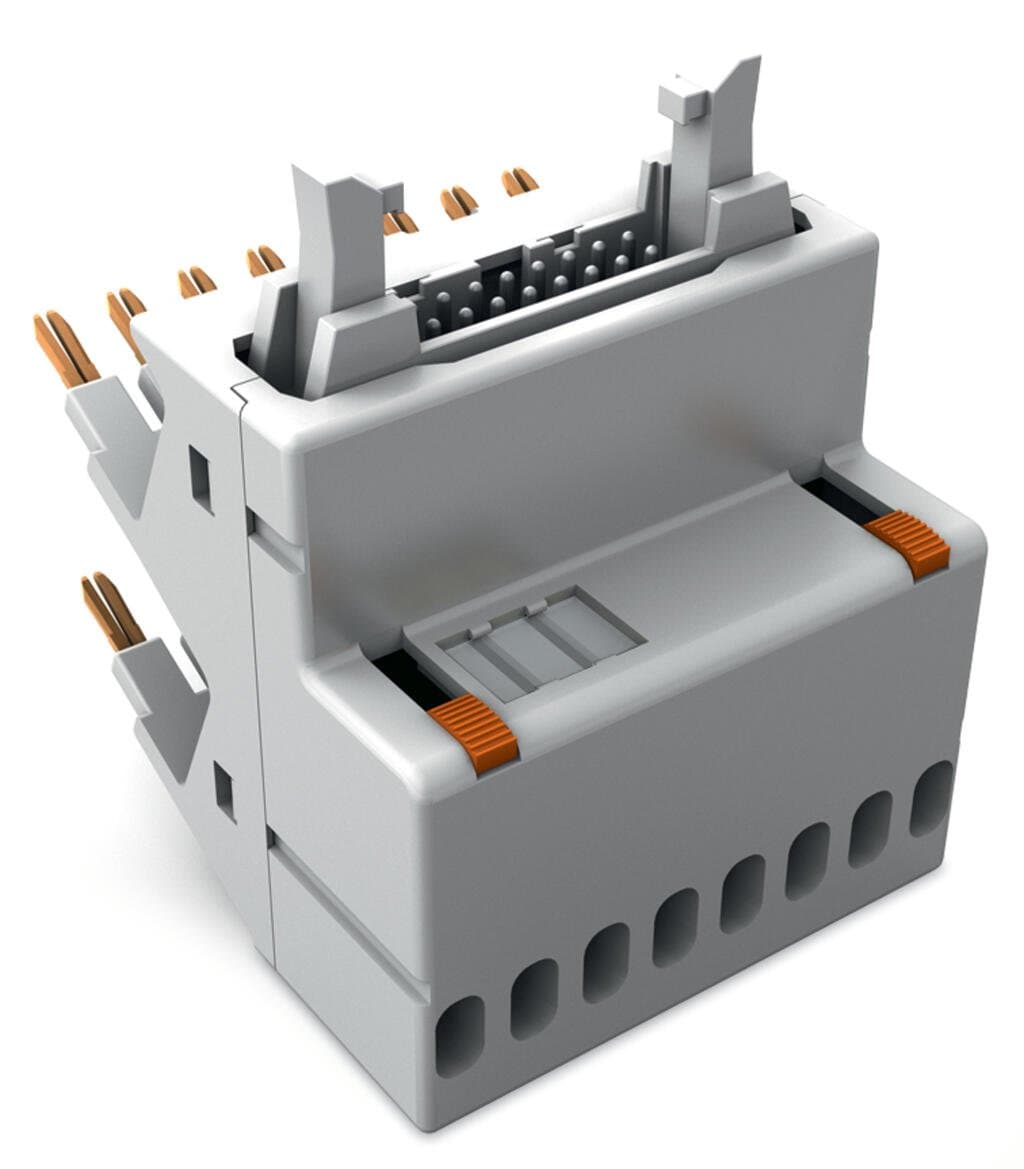

- 1High-Performance Connectivity: The WAGO 857-980 interface adapter offers reliable and efficient connectivity with 8 analog inputs/outputs.
- 2Durable Design: Equipped with a 16-pin DIN 41651 male connector, ensuring secure and robust connections.
- 3Marine Application Ready: Meets marine application standards with approvals for class of Steel Ships.
- 4IP20 Protection: Provides protection against dust and water, ensuring safe operation in various environments.
- 5Versatile Mounting: Designed for plug-in mounting, making it easy to integrate into existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The specified technical data are maximum values. They may be limited by the accessories used. | Inputs/outputs | 8-channel analog input or output |
Operating voltage | ≤30?VDC | Limiting continuous current | 1?A |
Contact resistance | ≤?20?mΩ | Dielectric strength (contact/contact) (AC, 1 min) | 0.5kV<sub>rms</sub> |
Protection type | IP20 | Performance level | 3 |
Mounting type | Pluggable module | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.577MJ |
Weight | 41.4g | Ambient temperature (operation) | -25 … +70 °C |
Ambient temperature (storage) | -40 … +85 °C | Relative humidity | 5 … 95?% (no condensation permissible) |
Standards/specifications | DNV | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 19-17-90-01 | eCl@ss 9.0 | 19-17-90-01 |
ETIM 9.0 | EC002780 | ETIM 8.0 | EC002780 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4045454995164 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | dd36189c-f0fd-4e0c-8c16-ee914fdf71c9 |
SCIP notification number (Belgium) | ff880780-c2cb-4575-bf9d-c1f80cbe0320 | SCIP notification number (Bulgaria) | 26b4cd39-d03c-437b-8676-62e7e90fda62 |
SCIP notification number (Czech Republic) | d4ad5d9f-72d9-475c-b447-a00c567f2691 | SCIP notification number (Denmark) | f5f9d403-9f7f-4474-913e-73cddb61e9e0 |
SCIP notification number (Finland) | 6d9728e4-638f-41ab-96f5-fedf63659103 | SCIP notification number (France) | 93b61fa7-f345-4a90-a337-633264c1b190 |
SCIP notification number (Germany) | 8529b258-9008-475f-a564-11efb66620da | SCIP notification number (Hungary) | 80696cec-d99c-4aea-8841-61da8d759a89 |
SCIP notification number (Italy) | bb4f037d-8599-4b06-b8bb-cc28bb748190 | SCIP notification number (Netherlands) | 9ca13b4f-51d3-4a45-9010-7db0f2b49ad0 |
SCIP notification number (Poland) | 68a61ca6-c964-48f4-8d4e-ec6bde1efba9 | SCIP notification number (Romania) | 6d0db4df-d9f6-4bfe-a883-bae626009a7a |
SCIP notification number (Sweden) | 494f3f33-0ee7-4dbd-b351-b41868004926 | Pluggable connector | DIN 41651 connector; male connector |
Pole number 1 | 16 | Connection type 1 | System |
Design 2 | Plug for jumper slot | Pole number (2) | 16 |
Connection type 2 | Field |
Specifications may be subject to change without notice
