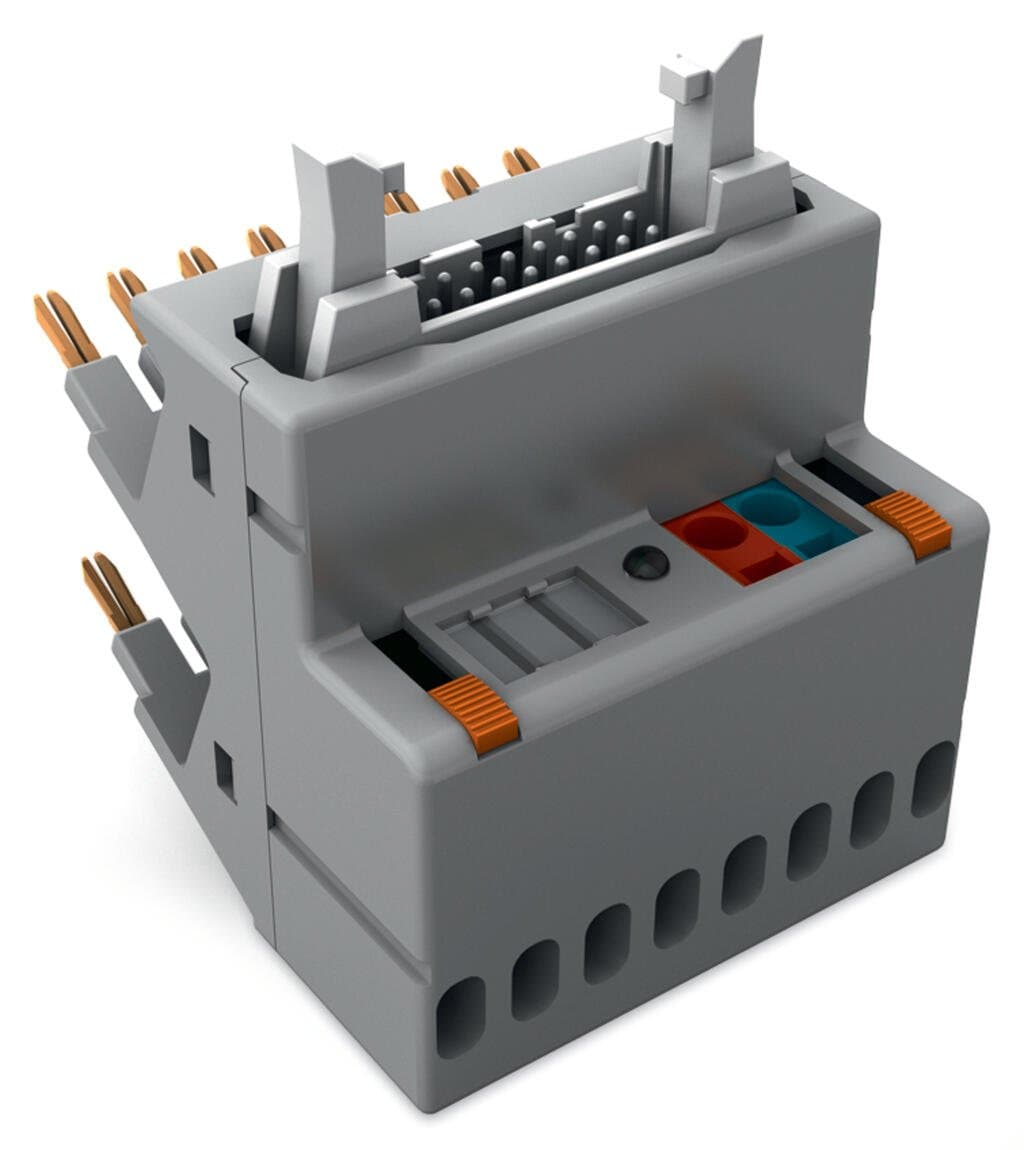

Product Model
857-982
Selling Points
- 1High-side switching output with 14 poles.
- 2Compatible with 24 VDC and 3 A.
- 3Suitable for interface electronics applications.
- 4Compliant with RoHS and DNV standards.
- 5Features a green LED status indicator.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The specified technical data are maximum values. They may be limited by the accessories used. | Inputs/outputs | 8-channel digital output |
Circuit type | High-side switching output | Nominal operating voltage | DC?24?V |
Operating voltage range | ±30?% | Total current | 3A |
Limiting continuous current | 1?A | Contact resistance | ≤?20?mΩ |
Status indicator | Green LED | Dielectric strength (contact/contact) (AC, 1 min) | 0.5kV<sub>rms</sub> |
Protection type | IP20 | Performance level | 3 |
Mounting type | Pluggable module | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.668MJ |
Weight | 44.2g | Ambient temperature (operation) | -25 … +70 °C |
Ambient temperature (storage) | -40 … +85 °C | Relative humidity | 5 … 95?% (no condensation permissible) |
Standards/specifications | DNV | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 19-17-90-01 | eCl@ss 9.0 | 19-17-90-01 |
ETIM 9.0 | EC002780 | ETIM 8.0 | EC002780 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4045454995188 | Customs tariff number | 8536904000 |
CAS-No. | 25550-51-0 | REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 60c4c11e-0c52-486d-8e2f-189a752ab2e4 |
SCIP notification number (Belgium) | e75fde03-21ed-425e-b6d9-5a3d30139974 | SCIP notification number (Bulgaria) | 8bdd1fae-f27b-4644-80dc-251dd1ec79bf |
SCIP notification number (Czech Republic) | d6619fcd-a111-4c5b-925c-d7704f2cc670 | SCIP notification number (Denmark) | 44cca479-9857-43cd-b188-52840119506f |
SCIP notification number (Finland) | 58319238-5611-4ee8-a4c7-6bb62b2f03e0 | SCIP notification number (France) | b3dc0db3-44ef-4164-92d4-06e2ea6d1db3 |
SCIP notification number (Germany) | 43a688da-2110-44ee-b74d-e202a8c1c91a | SCIP notification number (Hungary) | d9bc67f0-7f50-4c0d-95f8-af54d3ee2f4a |
SCIP notification number (Italy) | a4f81e3b-c710-460f-8d17-235fe3ec5afb | SCIP notification number (Netherlands) | 468b73c7-f1aa-4fe5-85b6-a135ed34ac19 |
SCIP notification number (Poland) | dac48461-a1ea-47d4-8cdf-2b06ee6d3f9f | SCIP notification number (Romania) | 7c7171e1-ad84-4e9e-b6e9-077794478174 |
SCIP notification number (Sweden) | f37bdf48-cab2-409f-8c67-5c7eeb407af9 | Pluggable connector | DIN 41651 connector; male connector |
Pole number 1 | 14 | Connection type 1 | System |
Design 2 | Plug for jumper slot | Pole number (2) | 16 |
Connection type 2 | Field | Pole number (3) | 2 |
Connection type 3 | Power supply | Connection technology 3 | CAGE CLAMP? |
Solid conductor 3 | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor 3 | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length 3 | 5 … 6?mm?/ 0.2 … 0.24?inches |
